ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Imaging yourself to try and find the perfect replacement for you!
Product Info for ATN Thermal Imaging Monocular OTS-X-F650 - 640x480, 50mm, 30Hz

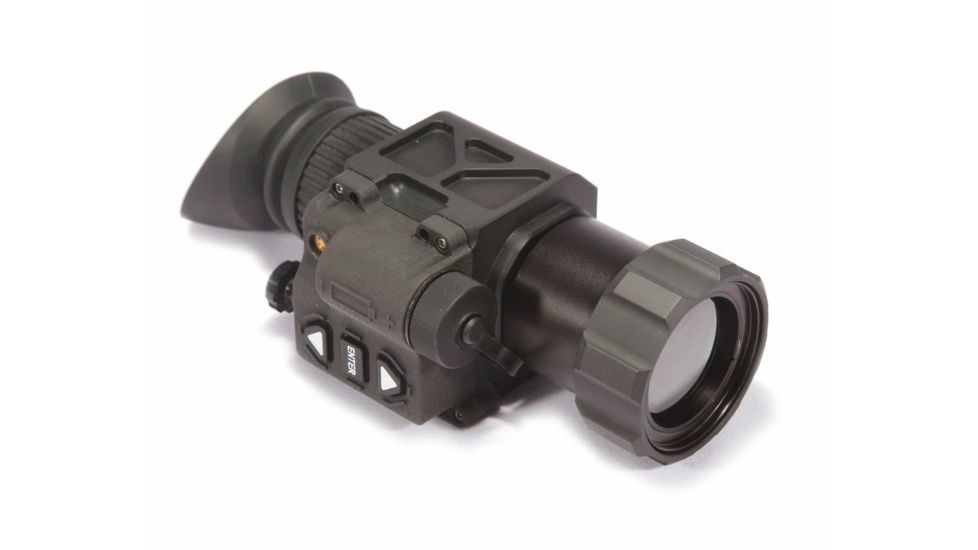

The ATN OTS-X 2.5x 30Hz Thermal Imager TIMNOTSXF650 is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. This Heat Seeking Monocular from ATN is one of the most affordable thermal viewers on the market that includes a full 640x480. One of the most unique features of the ATN F650 OTSX Thermal Scope is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.![]()
Specifications for ATN OTS-X-F650 2.5X (30Hz) Thermal Imaging Viewer:
| Sensor (microbolometer): | 640 x 480 |
| Type: | Uncooled |
| Material: | Vanadium oxide (VOx) |
| Image Size (output resolution): | 800x600 |
| Frame rate: | 30 Hz |
| Video output: | Analog RS-170 |
| Lens: | 50 mm |
| Display: | Color OLED matrix, SVGA< 800x600 |
| Thermal Sensitivity: | <50mK |
| Spectral Response: | 7-14 um |
| Field of View: | 14° |
| Eye Relief: | 27 mm |
| Diopter Adjustment: | -1.5 |
| Optical Magnification: | 2.5X |
| E-Zoom: | 5X, 10X, 20X |
| Human Detection: | 1300 |
| Human Recognition: | 500 |
| Human Identification: | 320 |
| Vehicle Detection: | 2800 |
| Vehicle Recognition: | 1100 |
| Vehicle Identification: | 700 |

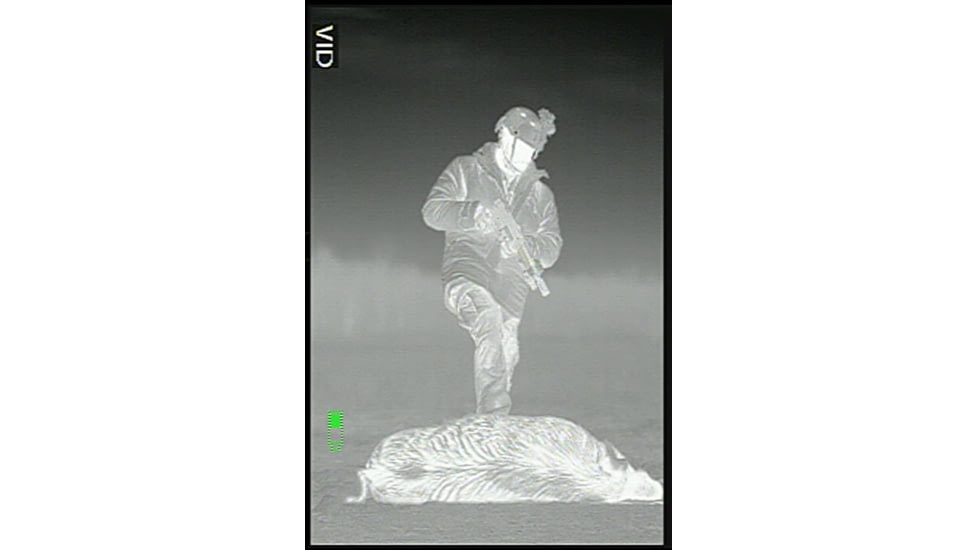

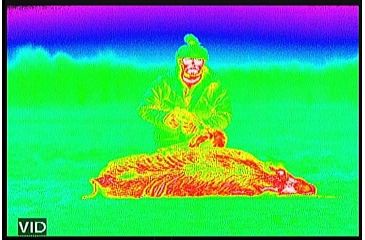

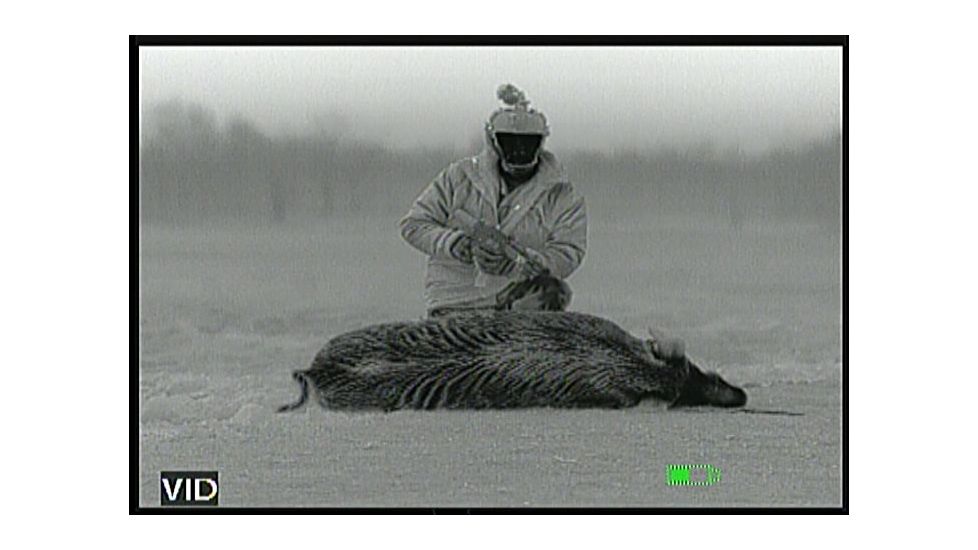

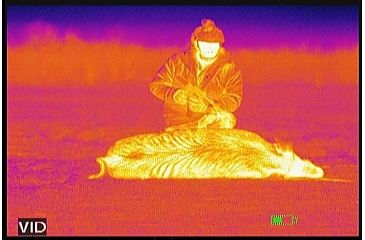

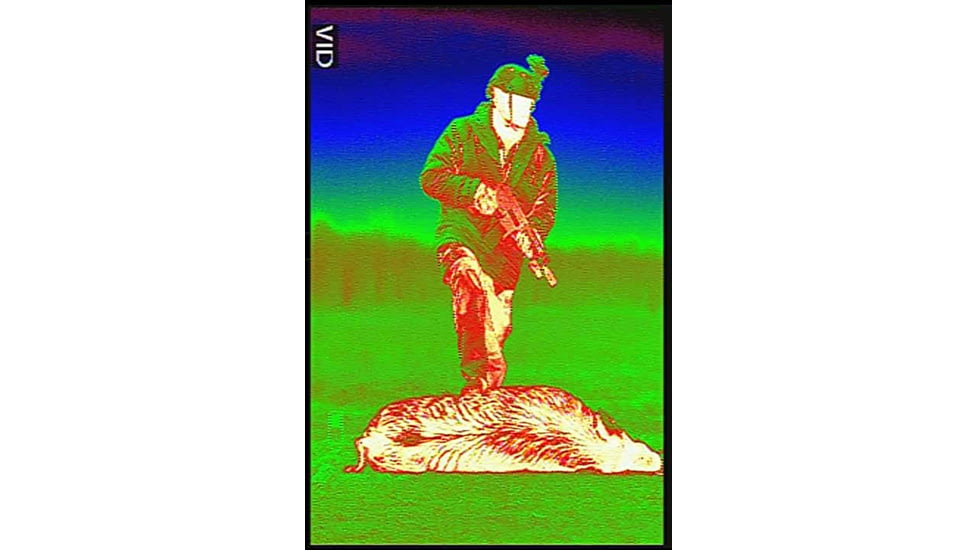

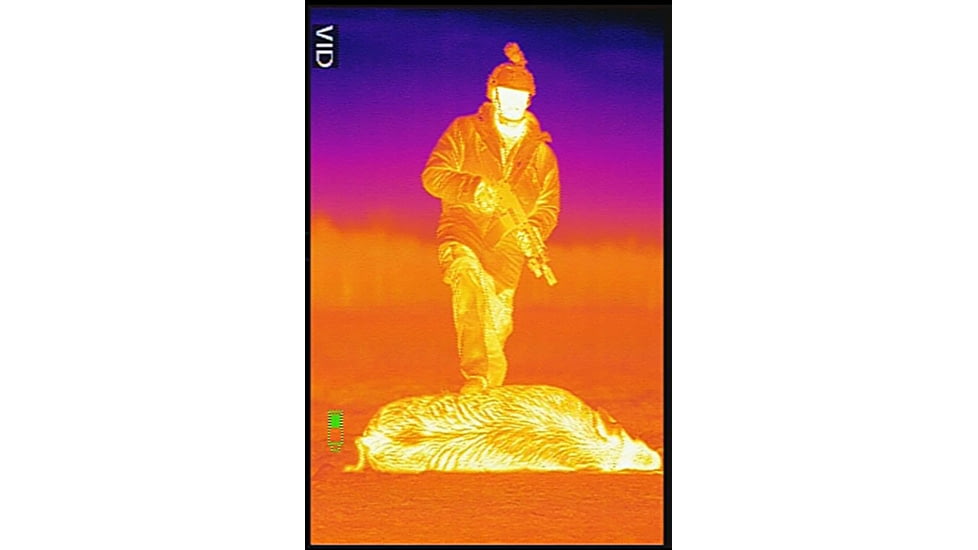

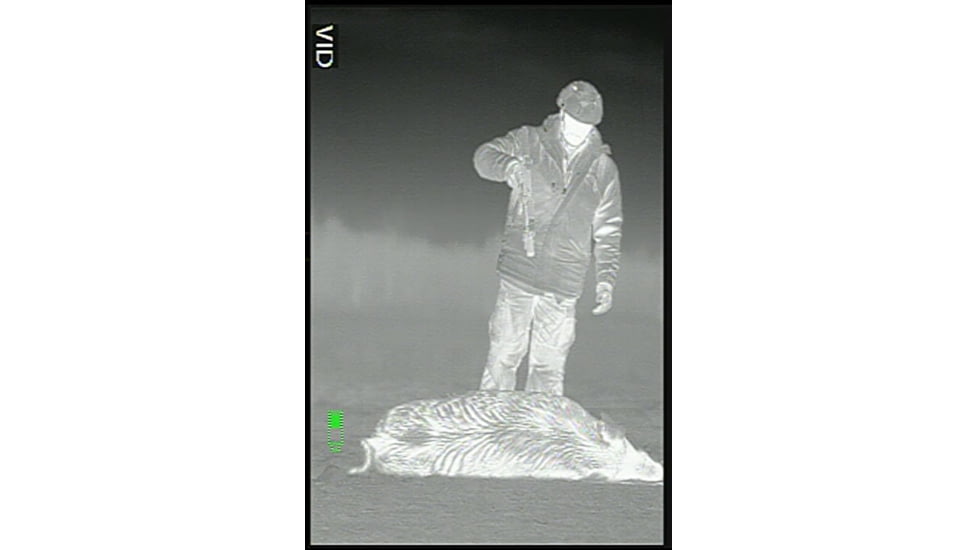

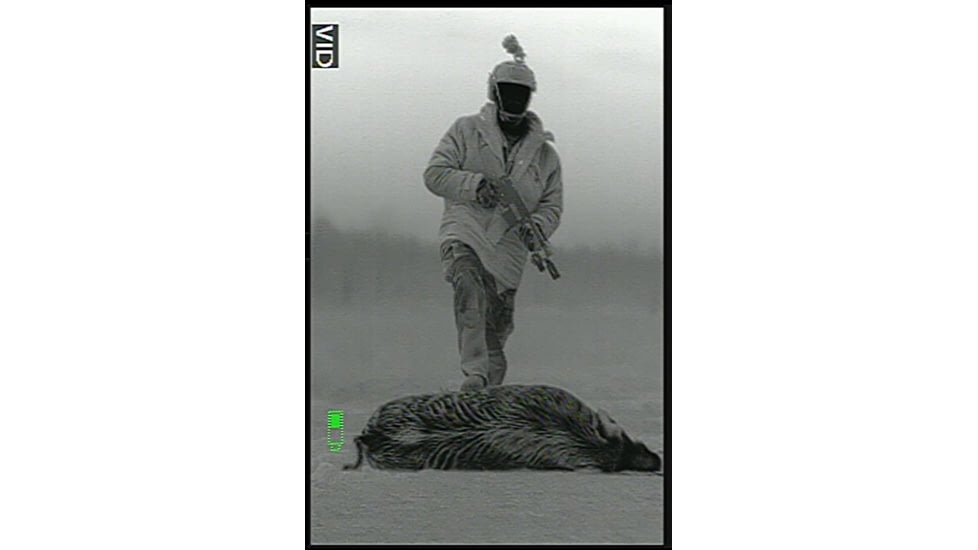

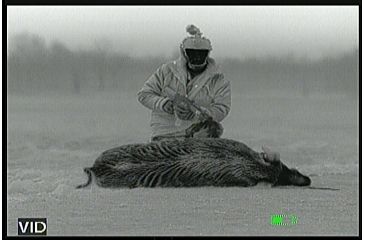

| Polarity control: | White hot / Black hot / Multiple Color Modes |
| Start up time: | <4 sec |
| Waterproof: | Yes |
| Battery type: | 1 x CR123A battery type |
| Battery Life: | 2+ hrs |
| Weight: | 1.4lb /640 gr |
| Dimensions: | 165 x 61 x 83 mm /6.5x2.4x3.3" |
| Warranty: | 1 year |
Features of ATN Thermal Image OTS X F650 Scope:
- Resolution 320 x 240
- Ergonomic Design
- Fast Imaging (30hz)
- Compact Rugged Construction
- Interchangable Optics
- Variable Geometry Display
- E-Zoom
- Digital Brightness Control
- Icon Based Menu System

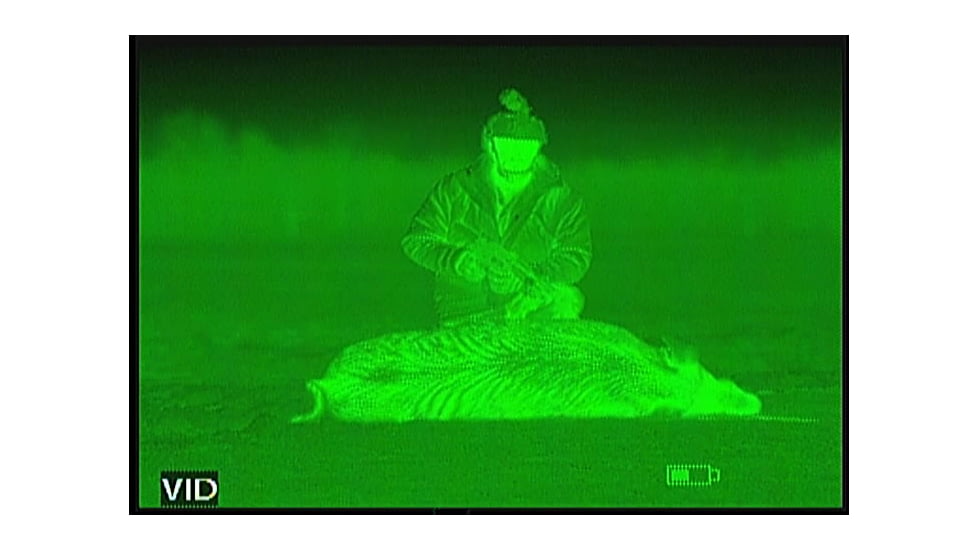

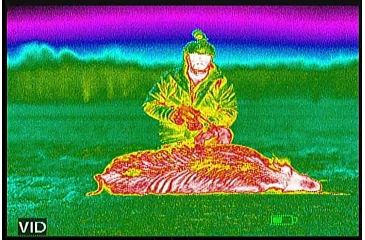

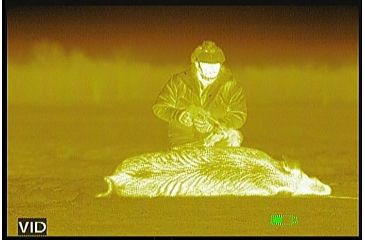

- Color Modes
- Black/White Polarity
- VOx Vanadium Oxide Detector
- 800x600 Display
- Video Output
- 1 Year Warranty
Package Contents:
- ATN OTS-X 2.5x 30Hz Thermal Imager TIMNOTSXF650
