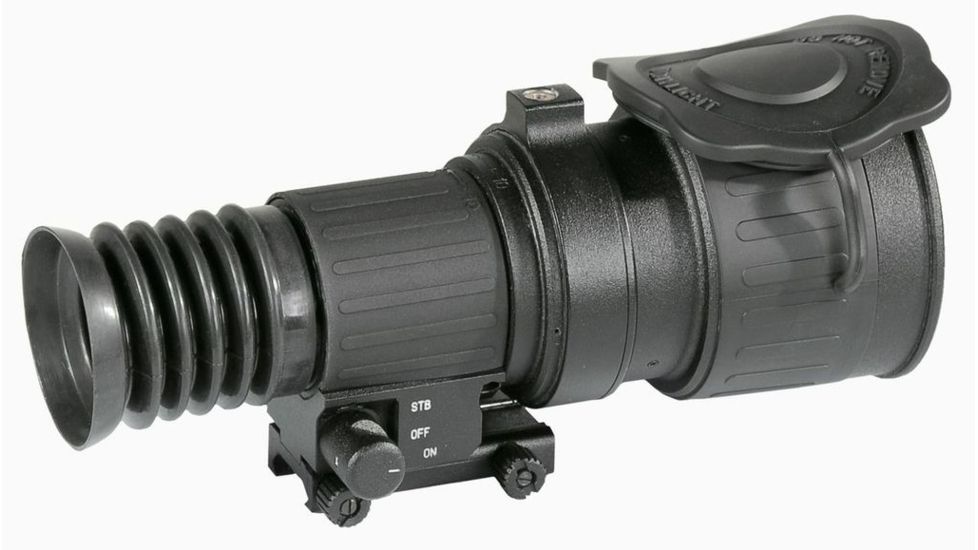

ATN PS-22 Gen.3 Night Vision Scope for Rifle Scopes w/ IR Illuminator
ATN PS-22 Gen.3 Night Vision Scope for Rifle Scopes w/ IR Illuminator Product information
Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

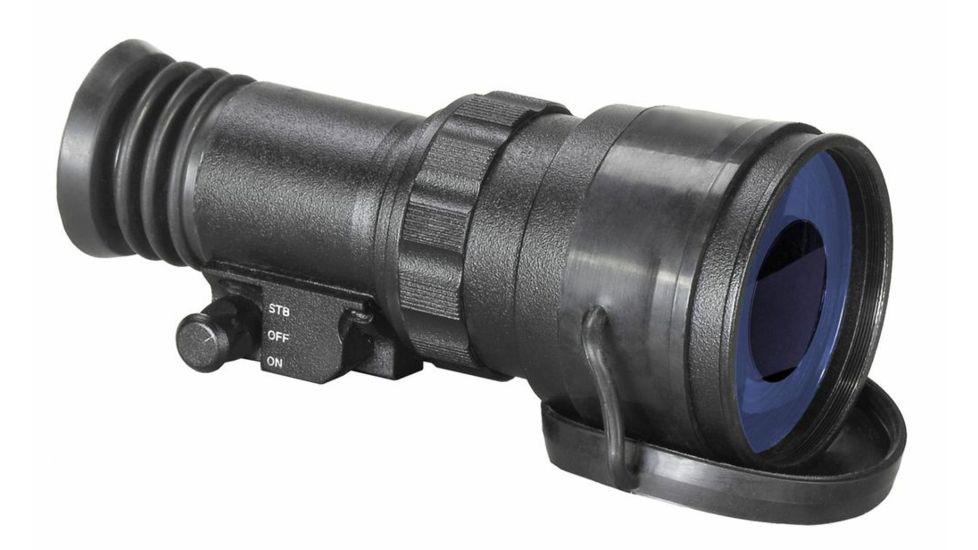

ATN PS-22 Gen.3 Night Vision Weapon Sight w/ IR Illuminator NVDNPS2230 NVDNPS223A (14684 / 14694) will convert your daytime rifle scope into a Night Vision

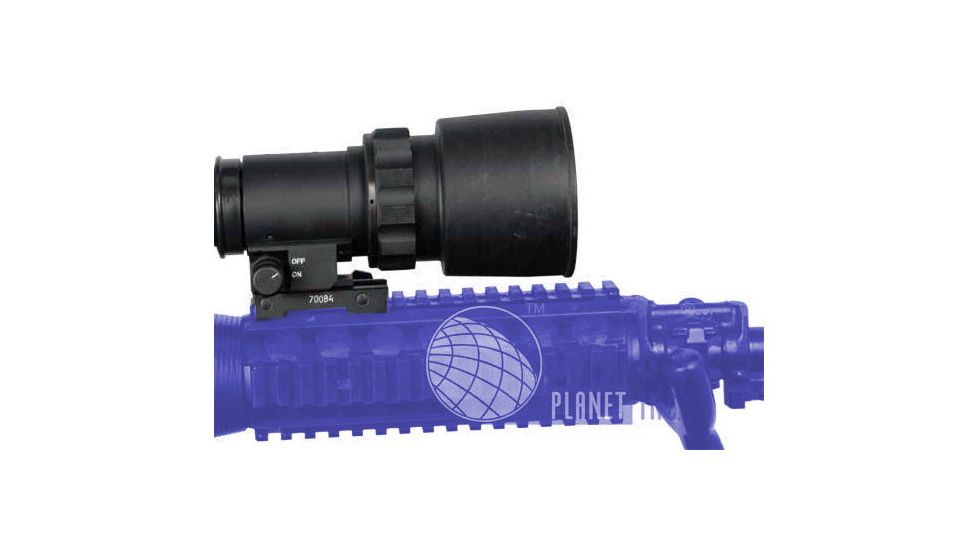

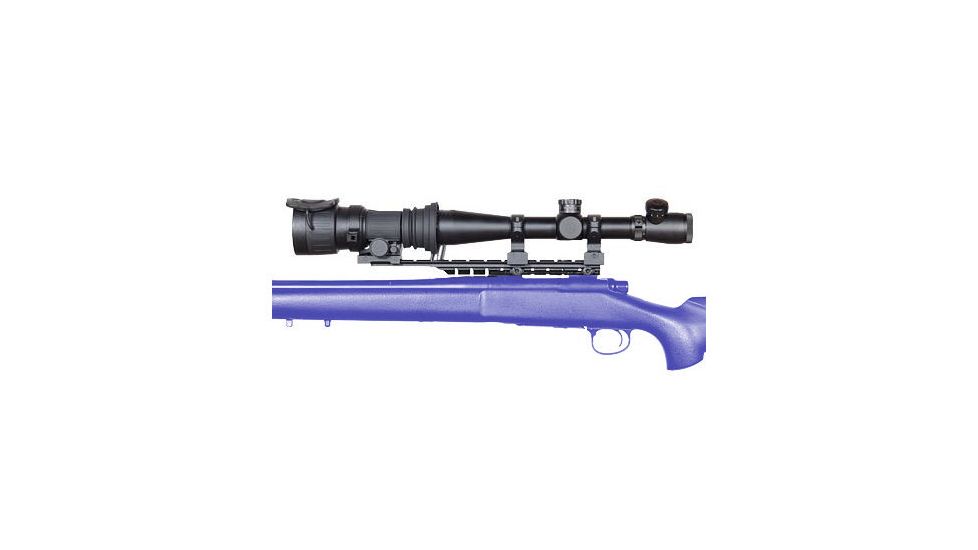

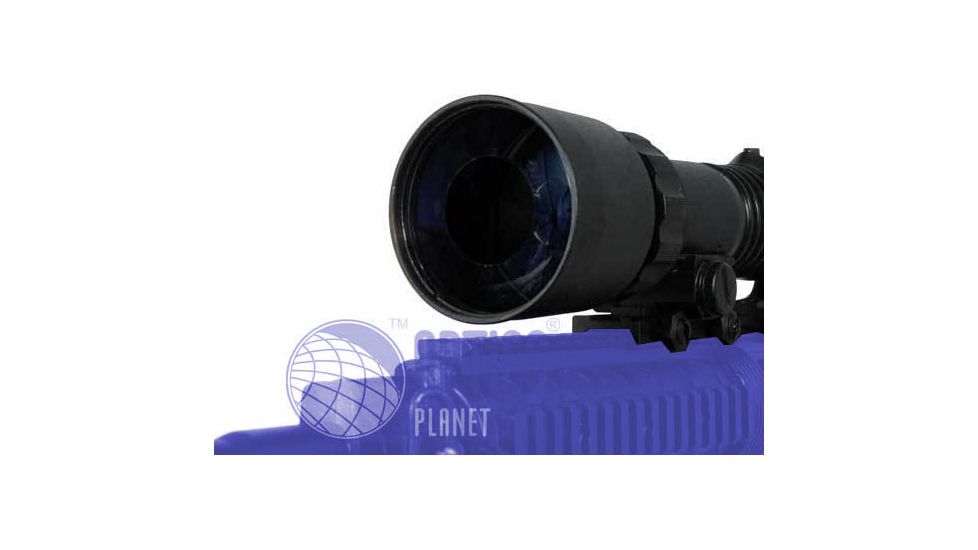

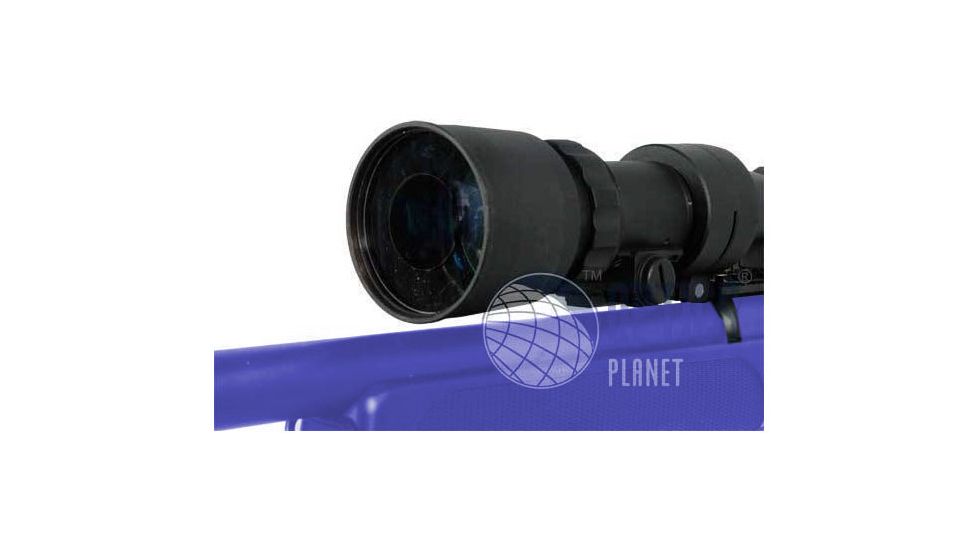

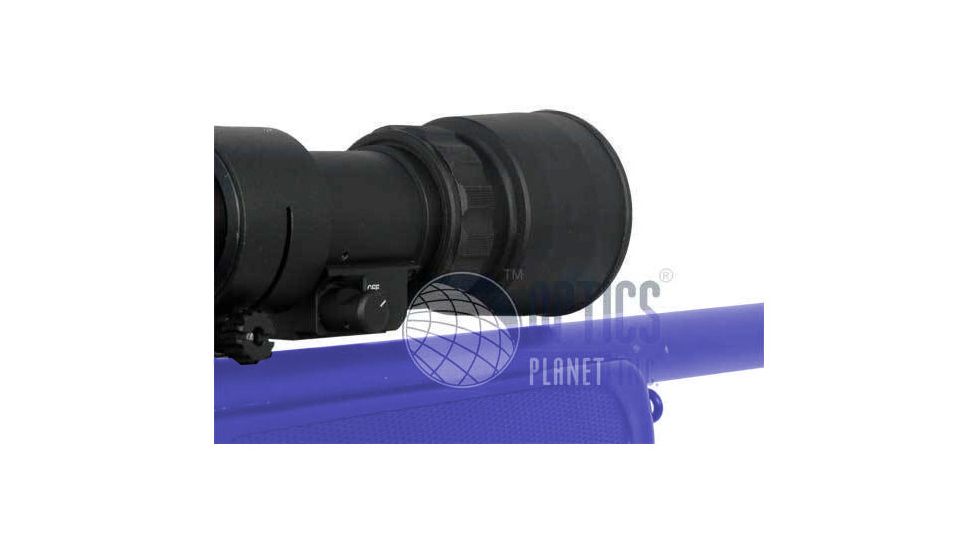

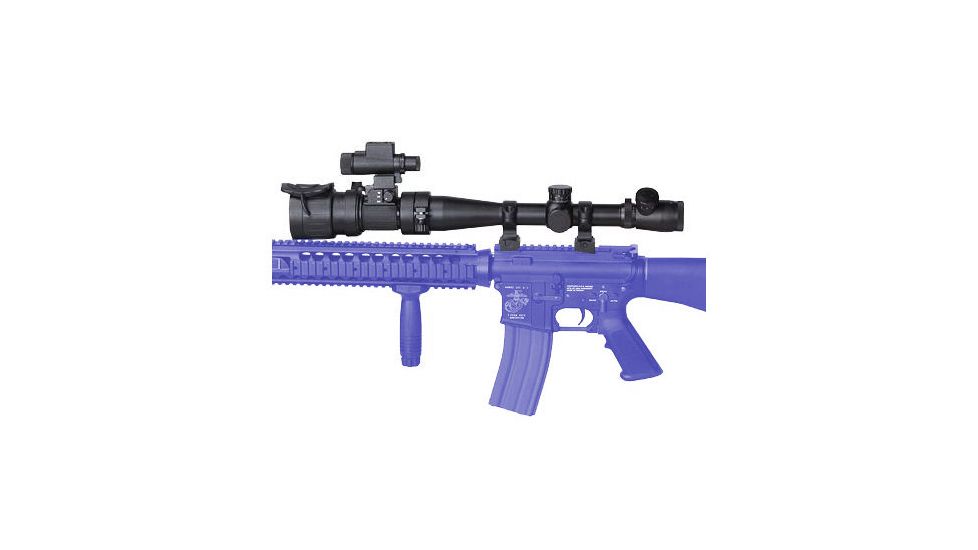

Scope. The ATN PS22-2 Night Vision Scope is a 1x magnification attachment for daytime riflescopes, that converts the scope into a high-quality Night Vision Weapon Sight. The ATN PS22-2 NV System mounts in front of a daytime scope; re-zeroing of the scope is not required. The ATN PS222 Night Vision Sight comes standard with a 7/8" Weaver mount. There is also an adapter for the ARMS quick release mount. Optional ring adapters allow to mount the unit onto the objective of the Daytime Scope (25...62mm diameter). The IR Illuminator can be mounted onto the optional Picatinny Rail. The ATN PS22 Scope utilizes a 2nd+ Gen. or 3rd Gen. Image Intensifier Tube. This ingenious setup allows the shooter to go from day to night in less than 30 seconds without tools, without changes in eye relief and remain zeroed all around the clock. This scope from ATN is a complex optical-electronic system. The device contains an Image Intensifier Tube assembly with an integrated high-voltage power source and the three volt battery housing.
Note: Optical riflescope and mounts are not included. For PS22 Mounts, please visit our ATN PS-22 Scope Mounting Systems page.
Specifications for ATN PS-22 Night Vision Weapon Sights:
| Magnification: | 1X |
| Intensifier Tube: | Gen.3 |
| Lens System: | F1 |
| FOV: | 13° |
| Resolution, lp/mm: | 64 |

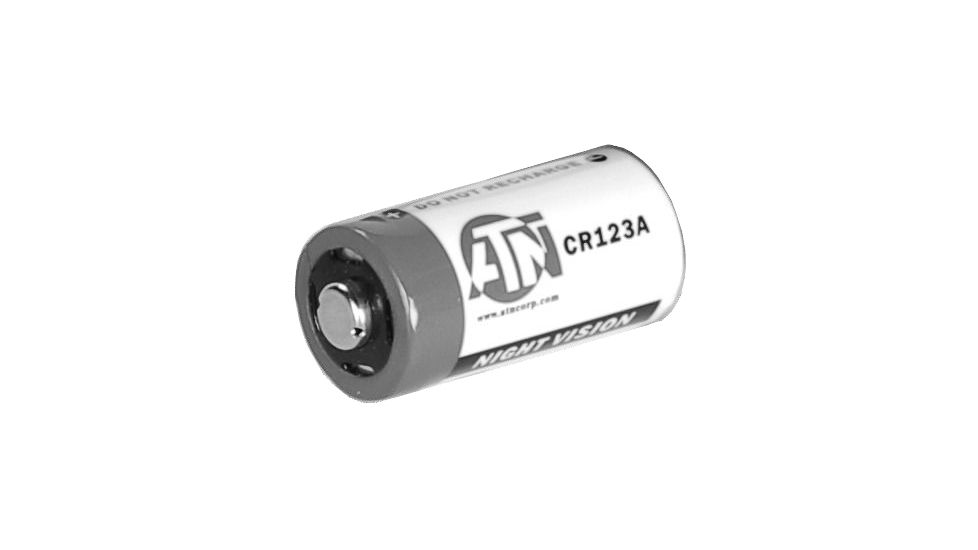

| Power Supply: | 1 x 3 Volt Battery(CR123A) |
| Range Of Focus: | 10m to Infinity |
| Battery Life: | 50 hours |
| Operating Temperature: | -40°C to +50°C |
| Waterproof: | 10m for 30min |
| Dimensions: | 139mm X 80mm X 72mm |
| Weight: | 0.6kg |
Features of ATN PS22-2 Night Vision Weapon Sights:
- Easily changes daytime scope to Night Vision
- Available in 2nd+ and 3rd generation
- Mounts in front of daytime scope, no re-zeroing required
- Multi-coated all glass optics
- Fast catadioptic front lens system
- Large 40mm eyepiece/output window
- Light weight and rugged
- Comes standard with 7/8" weaver mount
- Adapter for ARMS quick release mount included
- Optional adapters for mounting onto the objective of the day scope (25...58mm diameter)
Package Contents:
- ATN PS22-2 Night Vision Weapon Sight
- IR450-B4 Infrared Illuminator
- Mil-Spec hard case
- Quick Release Mount
- Picatinny Rail

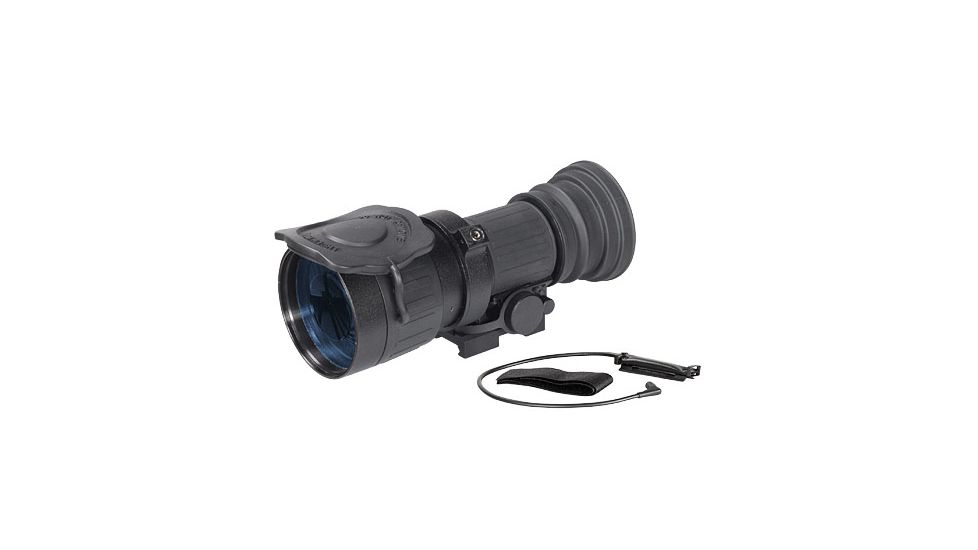

- Remote Control pressure pad
- Lens cap
- Back cap
- Light Suppressor hood
- (2) Lithium batteries
- Lens tissue
- Instruction manual
We consider ourselves the best Authorized ATN Night Vision supplier in the United States. Not only do we offer you the lowest discounted prices on all ATN Night Vision Goggles, Binoculars, Scopes and complete ATN Night Vision Systems (if you find the same item at a lower price, we will match that price plus an additional 2.5% discount- see our ATN Night Vision Best Price Policy for details), but we also provide you with industry leading service and support, and the best Night Vision equipment selection for military, law enforcement, security, surveillance, marine, and general recreational use.
ATN offers a Limited Lifetime Warranty. ATN Limited Lifetime Warranty details can be found at ATN Limited Lifetime Warranty Page.
ATN PS-22 Gen.3 Night Vision Scope for Rifle Scopes w/ IR Illuminator Options
| Product Code | UPC | SKU | ATN PS-22 Gen.3 Night Vision Scope for Rifle Scopes w/ IR Illuminator Options |
|---|---|---|---|
| AT-NR-PS22-3-NVDNPS2230 | 658175146841 | NVDNPS2230 | ATN PS-22 Gen.3 Night Vision Weapon Sight, 64lpmm NVDNPS2230 |

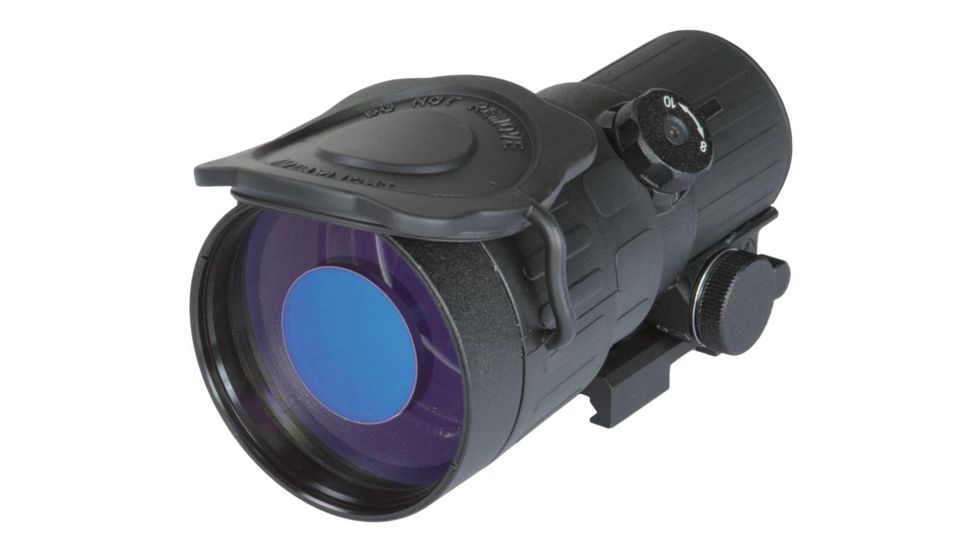

| AT-NR-PS22-3-NVDNPS223A | 658175146940 | NVDNPS223A | ATN PS-22 Gen.3 Night Vision Weapon Sight, 64-72 lpmm NVDNPS223A |
