EOTech HOLOgraphic Weapon Sight 550 (551 - M551 / 552 - M552), Night Vision compatible - w/ Scopecoat Protection Cover w/ FREE S&H
EOTech HOLOgraphic Weapon Sight 550 (551 - M551 / 552 - M552), Night Vision compatible - w/ Scopecoat Protection Cover Product Information
Receive up to a $50 back with the purchase of an EOTech HOLOgraphic Weapon Sight or EOTech Magnifier between August 16, 2010 and December 31, 2010. Offer is valid for new EOTech items only. Please visit the EOTech Rebates & Promotions page for further details.
EOTech HOLOgraphic Weapon Sight 550 (551 - M551 / 552 - M552) come complete with ScopeCoat Holosight Protective Covers. Regularly priced at $19.99 ScopeCoat Holo Sights Protectors are yours absolutely FREE with a purchase of Eotech Holographic Weapon Sights! EOTech HOLOgraphic Weapon Sight HWS 550 series models - Eotech 552 Tactical Sights and Eotech 550 Tactical Sights are Night Vision Compatible Hologsights!

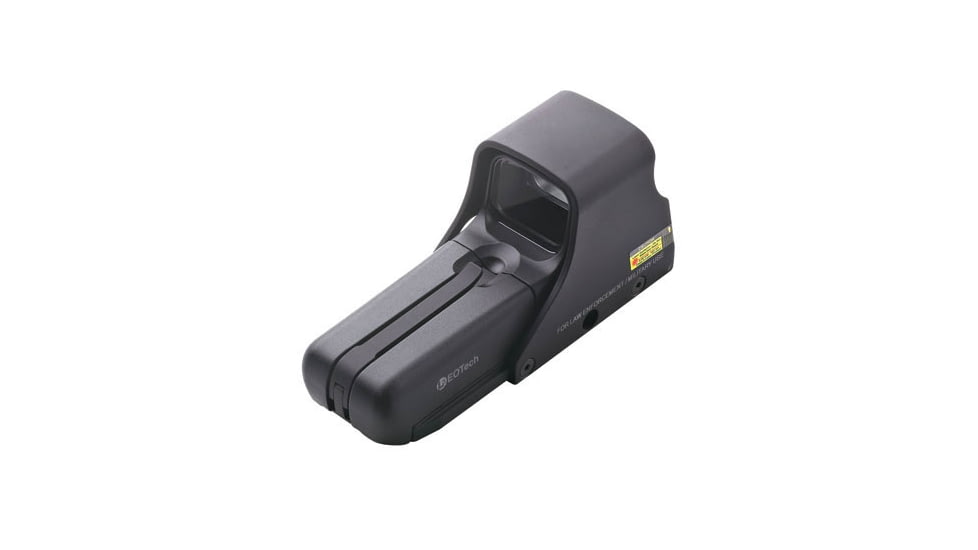

The Model Eotech 552 HOLOgraphic Weapon Sight (HWS) is fully compatible
with all generation levels of night vision intensifier tubes. A special night vision (NV) setting of 551 and 552 EOTech sights allows the operator to immediately drop the brightness intensity of the holographic reticle to eliminate any "halo" effect while viewing through an image intensifier tube. The M550 can be positioned in tandem behind night vision intensifiers without any "bloom" of the target area. Eotech product reviews from our US Army customers have been great! Now Eotech holosight operators can combine the proven night vision technological advantage with a superior close quarters weapon optic to achieve greatly enhanced weapon aiming - in complete darkness. Unlike active IR laser pointer systems, the 550 HOLOgraphic Weapon Sight (HWS) is a passive system and emits no muzzle-side signature. While in the NV mode, the 550 HOLOgraphic Weapon Sight (HWS) not detectable by enemy night vision surveillance systems, providing operators with a stealth means for effective nighttime weapon aiming. The M550's unique switch allows the operator to instantly drop the holographic reticle's brightness to the NV mode of operation. The operator has the ability to toggle back and forth between the NV mode and the normal day/night operation within fractions of a second. The EOTech Holographic Sight M550 has 10 distinct night vision settings to provide maximum flexibility to the operator. Typically 3 to 4 brightness settings are not enough to support a host of constantly changing conditions including manufacturing variances in the sensitivities of the image intensifier tubes, varying ambient environments, and varying light gathering sensitivities of the human eye across users. The M550 still maintains the 20 normal brightness settings for normal day/night operations. The typical configuration is with both the monocular night vision system and the EOTech HOLOgraphic Weapon Sight (HWS) mounted in tandem on the weapon's receiver. Operators can also witness the holographic reticle with head/helmet mounted monocular night vision image intensifier systems, even on a partial cheekweld on the weapon's stock. This allows the operator added flexibility and greater versatility when deploying with night vision systems in the ever changing battlefield environments.

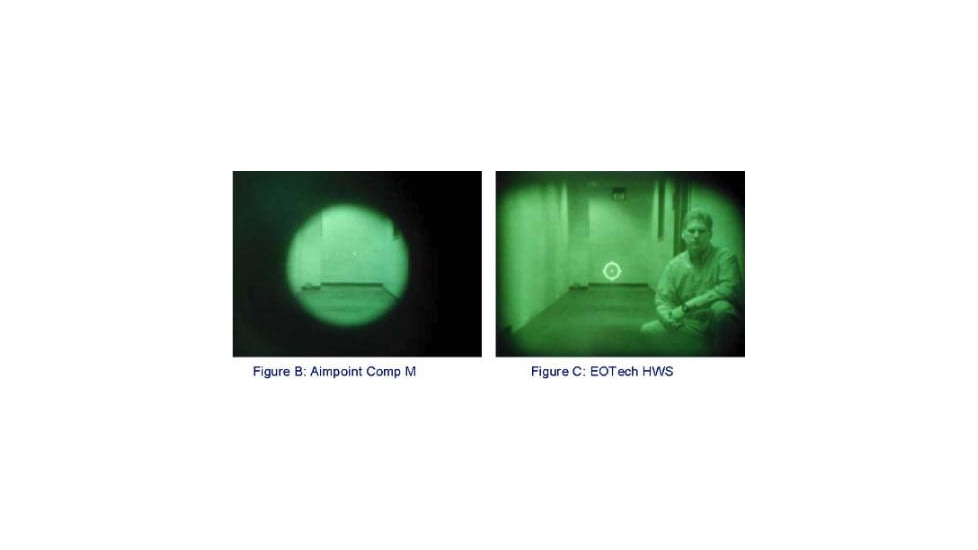

At a distance of 100 yards and a 2? eye relief, the EOTech HOLOgraphic Weapon Sights provide a 35 yard horizontal field of view and 22.5 yards vertically. This equates to an area of roughly 790 square yards. Figure below shows the difference in area between these two optics. In addition, the field of view advantages of the EOTech HWS are even greater when night vision applications arise and the operator must acquire his target with only his dominant eye. Above are non-altered photographs of both the EOTech and Aimpoint viewed through a night vision device
The HOLOgraphic Advantage The holographic patterns have been designed to be instantly visible in any light, instinctive to center regardless of shooting angle, and to remain in view while sweeping the engagement zone. Reticles of EOTech HOLOgraphic Weapon Sights are designed as large, see-through patterns to achieve lightning quick reticle to target acquisition without covering or obscuring the point of aim. Heads Up, Full View The Holographic Weapon Sight (HWS) employs a true Heads-Up Display that eliminates blind spots, constricted vision, or the tunnel vision associated with tubed sights. All user controls are flush to the Holographic Weapon Sight's streamline housing with no protruding knobs, battery compartments or mounting rings blocking vision at the target area. True, 2 eyes open shooting is realized with EOTech HWS. Instant threat identification is achieved by maximizing the operator's peripheral vision and ultimately gaining greater control of the engagement zone.

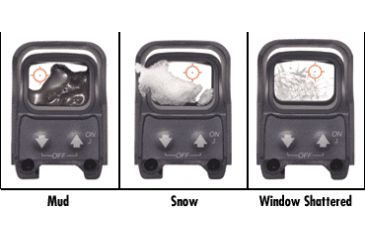

Please note that all EOTech HOLOgraphic Weapon Sights that we sell are the latest models avaloperationalable described on eotech.com with the latest enhanced electronic circuitry, improved the optical efficiency, button design, and extended battery live - only the best from OpticsPlanet.com! The Magic of Holography. In holography, all the information required to reconstruct the reticle image is recorded everywhere in the Heads-Up display window. If the window is obstructed by mud, snow, rain, etc., the Holographic Weapon Sight HWS remains fully operational, with point of aim/impact being maintained. Even in such extreme cases where the laminated window is shattered, the Holographic Weapon Sight is fully functional! As long as the operator can see through any portion of the window, the entire reticle pattern is visible on target...the operator can still engage with confidence.
Available Modifications/Models of M550
- M552-A65-1: HWS M550AA Tactical w / 2D standard reticle, AA battery, Night Vision compatible ( Order Code: 552.A65/1 ; NSN: 1240-01-492-5264 ) -Compatible with Gen I-IV Night Vision Systems (tandem operation) -AA battery model with 65 MOA ring/1 MOA dot reticle (supports Lithium and Alkaline) -includes rugged aluminum hood assembly & knobbed, tool-less mounting bolt -interfaces to standard 1-inch Weaver dovetail/Picatinny rail
- M552-D1: HWS M550AA Tactical w / Single 1 MOA Dot Reticle, AA battery, Night Vision compatible (Order Code: 552.D1) -AA battery model (supports Lithium and Alkaline) - Consists of 1 MOA Dot reticle pattern (No outer circle)
- M552-XR308: HWS M550AA Tactical w / BDC Reticle for .308 caliber, AA battery, Night Vision compatible (Order Code: 552.XR308) -AA battery model with ballistic drop compensated reticle for .308 caliber (supports Lithium and Alkaline)
- M552-XR500: HWS M550AA Tactical w / BDC Reticle for .50 caliber, AA battery, Night Vision compatible (Order Code: 552.XR500) -AA battery model with ballistic drop compensated reticle for .50 caliber (supports Lithium and Alkaline)
| | ||||
| Model: | 550 | 550AA | ||
| | ||||
| Code: | 551.A65 | 552.A65; 552.D1 | ||
| | ||||
| Night Vision Compatible: | Yes | Yes | ||
| | ||||
| Waterproof & Submersible: | To 33 ft depth | To 33 ft depth | ||
| | ||||
| Battery: | N Alkaline | AA lithium, alkaline, or rechargeable | ||
| | ||||
| Battery Life (setting 12): | 200 hours continuous | 1100 hours continuous | ||
| | ||||
| Length of sight: | 4 inches (102 mm) | 5 inches (131 mm) | ||
| | ||||
| Reticle Options: | 65 MOA ring w/ 1 MOA dot | 65 MOA ring w/ 1 MOA dot; Single 1 MOA Dot | ||
| | ||||
Not only we offer low discount price and free UPS Ground shipping on all EOTech sights, but all Eotech sight models from OpticsPlanet.com are the latest Eotech Rev. F Holographic Weapon Sights! Through an extensive research and development effort, EOTech's team of engineers has optimized the Holographic sight fabrication process to dramatically improve the optical efficiency of the Eotech HWS. The result is 2x the battery life compared to previous EOTech sights Rev E. Significant EO Tech Revision F enhancements in the EOTech Holographic Sight electronic circuitry allow the brightness adjustment range to expand by a factor of 20x! Now, the impressive low light capabilities of the EOTECH HWS products offered by Tactical-Storecomplimented with a reticle that is 2x brighter at the highest setting. Already recognized as the brightest sight in today's military market, the EOTech Holosight further eliminates any concern of reticle washout in desert or artic conditions. These changes to eotech scopes are collectively known on eotech.com as Eotech Holographic Weapon Sight Revision Level F.
OpticsPlanet, Inc. actively supplies EOTech Holographic Weapon Sights to the Military Special Forces and Law Enforcement agencies nationwide, and the reviews and feedback from the field have been outstanding! OpticsPlanet.com is a registered CCR supplier of the United States Government. We accept U.S. Government and accredited institutions Credit Cards, Purchase Orders and contract orders. We are an active DOD Vendor and are registered in the CCR with Cage Code 3GP24. Our Dun & Bradstreet Number is DUN 118517445.
Eotech HOLOgraphic Diffraction Sight (HDS) Manual along with adjustment and weapon mounting instructions can be downloaded here (in PDF format)
A copy of Eotech M16A4/M4MWS with EoTech Holographic scope, Top rail 25 METER ZEROING TARGET M16A2/M16A4 can be downloaded in PDF format here.

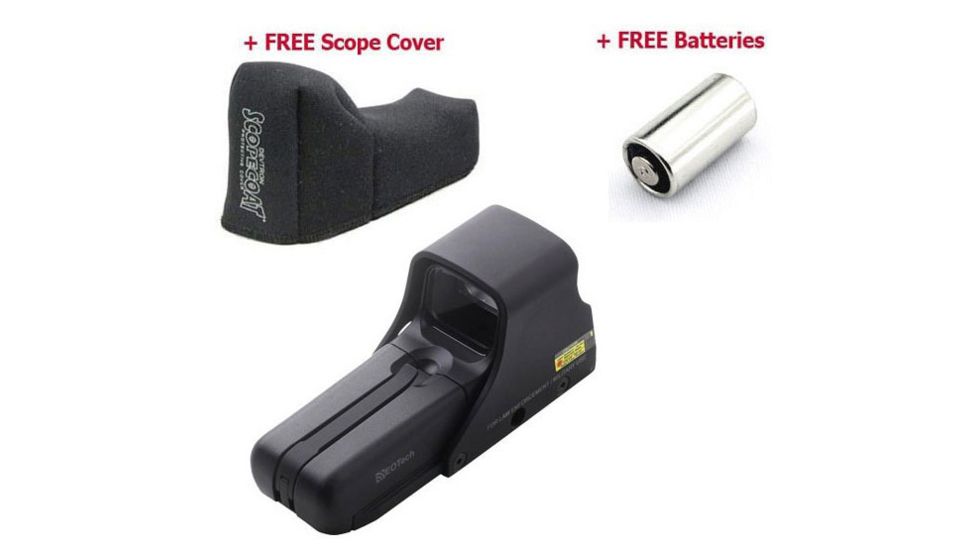

Package Contents:
- EOTech HOLOgraphic Weapon Sight 550
- Scopecoat Protection Cover
|
On the picture below: "ATN NVM-14-3A mounted behind an EOTech on a Sabre Defence AR-15. Verification that the EOTech or other type of red dot sight is
night vision compatible is crucial". (Read the entire ATN NVM-14 3A Night Vision Monocular review article here.) |
 |
EOTech HOLOgraphic Weapon Sight 550 (551 Options
| Product Code | UPC | SKU | Model |
|---|---|---|---|
| ET-RD-550-552-A65-1-KIT | ET-RD-550-552-A65-1-KIT | HWS 550AA Tactical w / 2D standard reticle, AA battery, Night Vision compatable w/FREE ScopeCoat Protective Cover | |
| ET-RD-550-552-D1-KIT | 552-A65-1 | HWS 550AA Tactical w / Single 1 MOA Dot Reticle, AA battery, Night Vision compatable w/FREE ScopeCoat Protective Cover | |
| ET-RD-550-552-XR308-KIT | HWS 550AA Tactical w / Ballistic Drop Compensated Reticle XR308 for .308 Caliber, AA battery, Night Vision compatable w/FREE ScopeCoat Protective Cover | ||
| ET-RD-550-552-XR500-KIT | HWS 550AA Tactical w / Ballistic Drop Compensated Reticle XR500 for .50 Caliber, AA battery, Night Vision compatable w/FREE ScopeCoat Protective Cover |
