Garrett PD 6500i Walk-Through Metal Detector - 33 Detection Zones, TSA Certified
Garrett PD 6500i Walk-Through Metal Detector - 33 Detection Zones, TSA Certified Product information

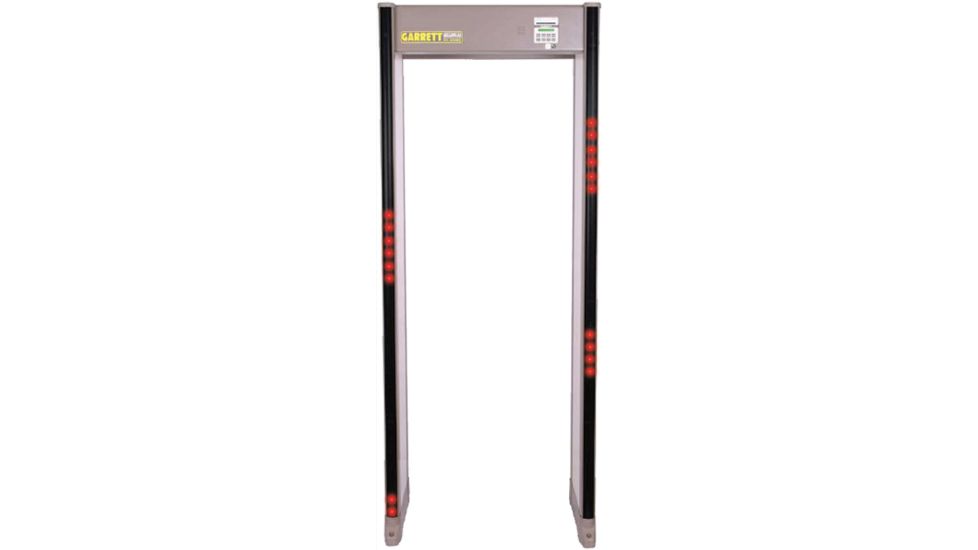

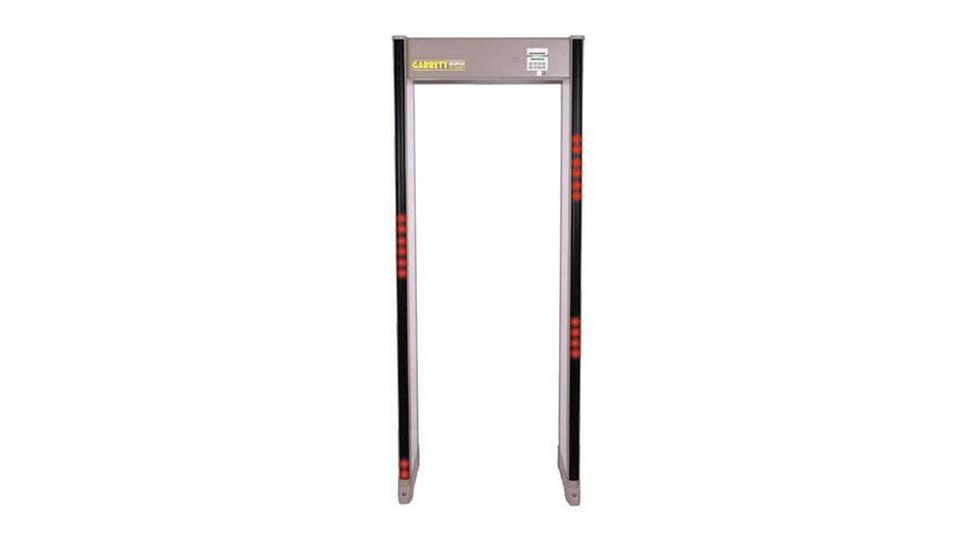

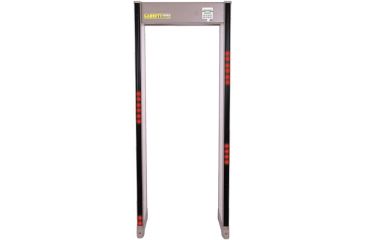

Garrett PD 6500i Walk-Through Metal Detector 1168411, 1168414, 1168433, 1168432, 1168412, 1168428 is the world's highest performing walk-through metal detector

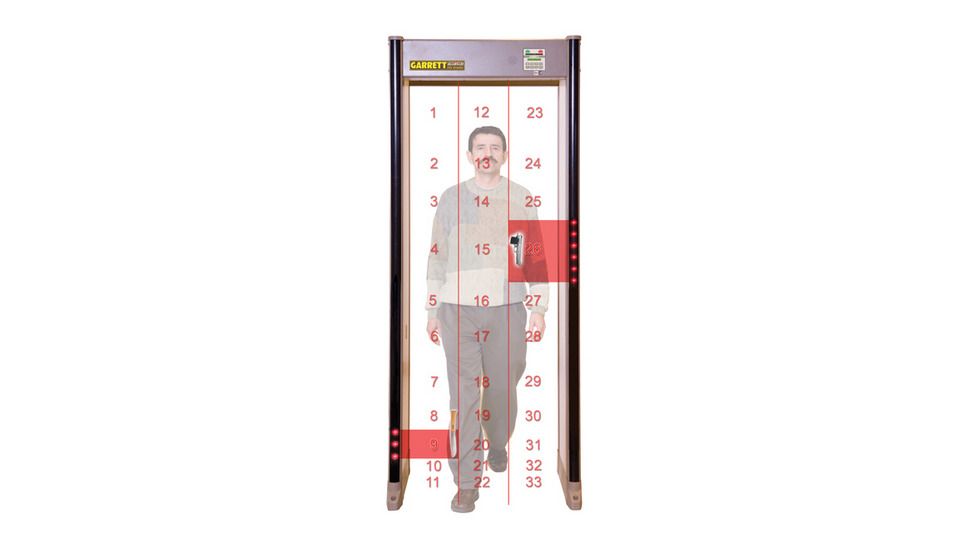

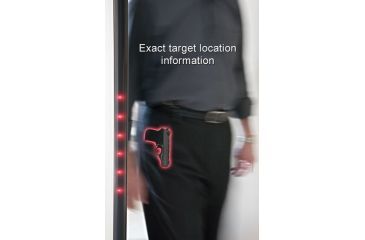

and leads the industry with superior pinpoint technology and unmatched discrimination features. The PD6500i Walk Through Metal Detector by Garrett is designed for superior target detection with unmatched discrimination of harmless items such as coins, keys, etc. These Garrett Metal Detectors feature 33 Pinpoint Zones that can precisely identify a target object's location on the left, center and right sides of the body from head to toe. The Garrett PD-6500i Metal Detector also features Dual Detection capabilities with transmitters and receivers in each panel for superior detection, uniformity and performance. Helping improve performance is the metal detector 's advanced Digital Signal Processor (DSP) which provides greater sensitivity, noise immunity, discrimination, and overall product reliability. The DSP helps locate even small, hard-to-find, floor level weapons.
In addition to the performance of the Garrett PD 6500i Walk Through Metal Detector is its quality construction and versatility. Each Garrett Metal Detector is weatherproof, meeting IP55 standards for water and foreign matter protection. The Garett PD6500 i Metal Detector also features superior versatility with settings designed for airports, courthouses, prisons, schools, special events, mass transit, loss prevention, and many more applications. For use in airports, the Garrett PD-6500-i Metal Detector is Transportation Security Administration TSA qualified to meet the new Enhanced Metal Detector (EMD) specification for walk-through metal detectors, and is available with an ADA-compliant wheelchair width. These features of the Garrett PD 6500i Walk-Through Metal Detector 1168410 make it the walk-through metal detector of choice for security professionals worldwide.
- Available models of Garrett PD6500i Metal Detectors:

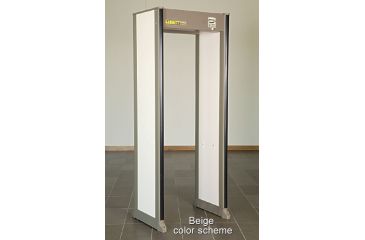

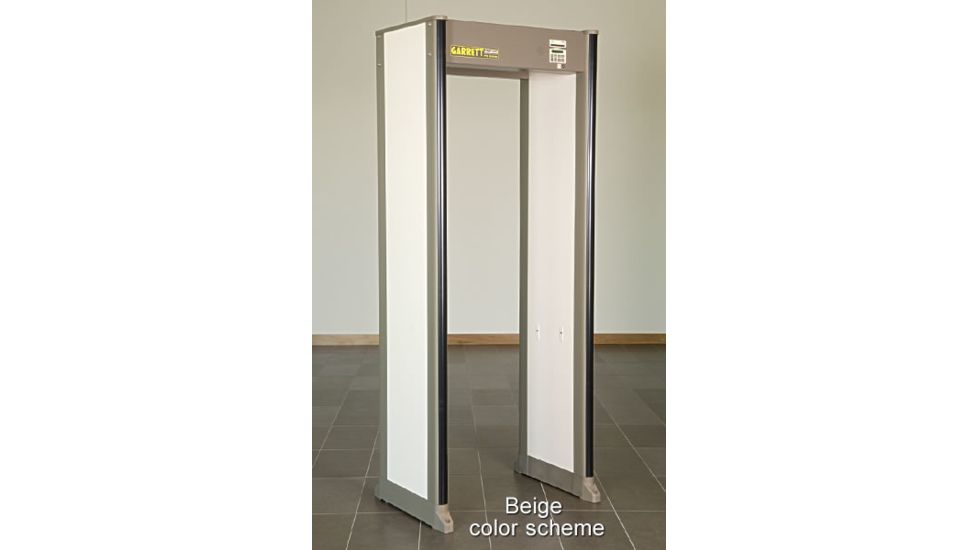

- 1168411: Garrett PD6500i TSA-Certified 30-inch Metal Detector, Beige

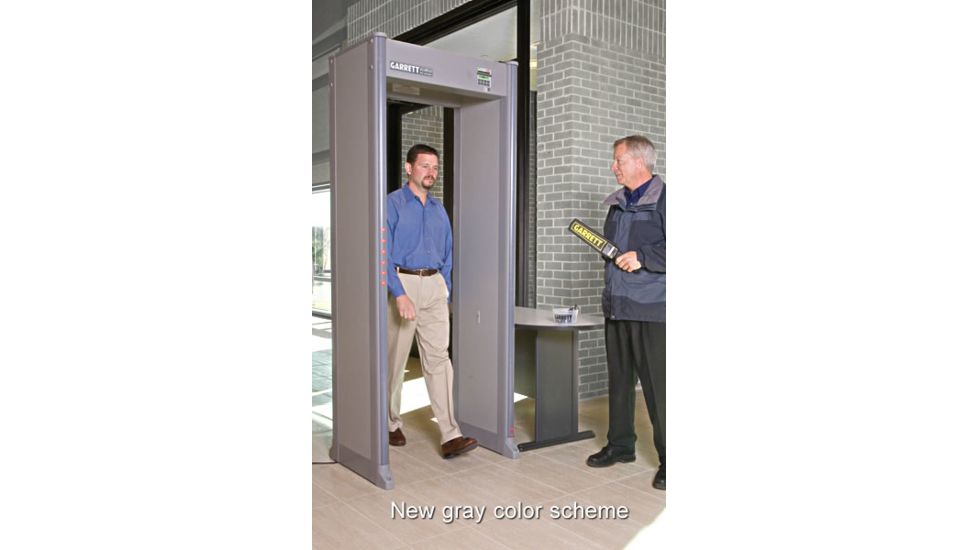

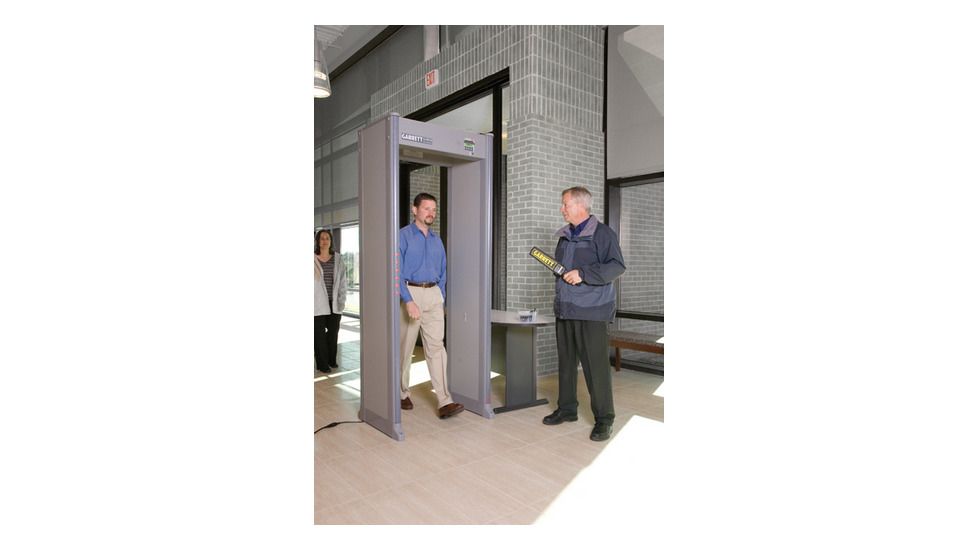

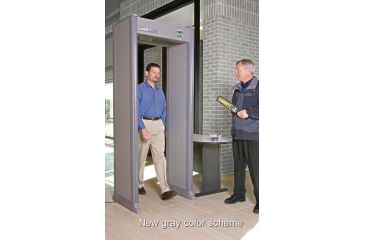

- 1168414: Garrett PD6500i TSA-Certified 30-inch Metal Detector, Gray
- 1168433: Garrett PD 6500i TSA-Certified 32.5-inch Metal Detector, Gray - Extra width to accomodate wheelchairs
- 1168432: Garrett LE PD 6500i 32.5-inch ADA Compliant Walk-Through Metal Detector, Gray
- 1168412: Garrett LE PD 6500i EZL Walk-Through Metal Detector, Gray
- 1168428: Garrett LE PD 6500i 28in Walk-Through Metal Detector, Gray
Specifications for Garrett PD 6500i Walk-Through Metal Detectors:
| Operating Temperatures: | -4°F (-20°C) to + 158°F (70°C); Humidity - To 95% noncondensing. | |
| Power: | Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 55 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards. | |
| Weatherproofing / Foreign Object Protection Standards: | Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529. | |

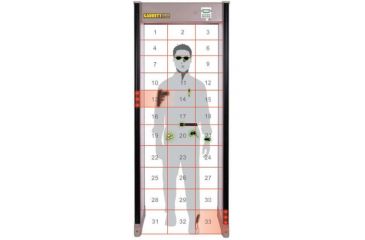

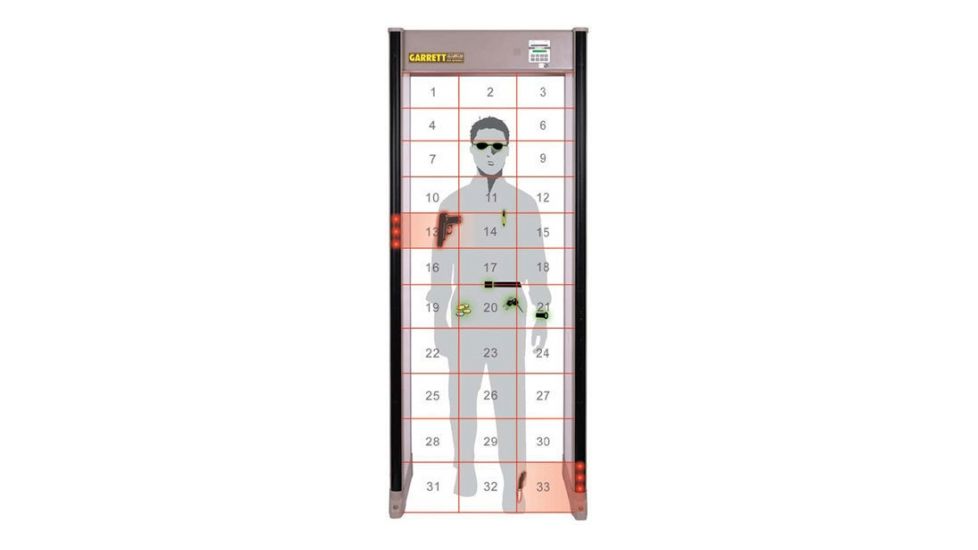

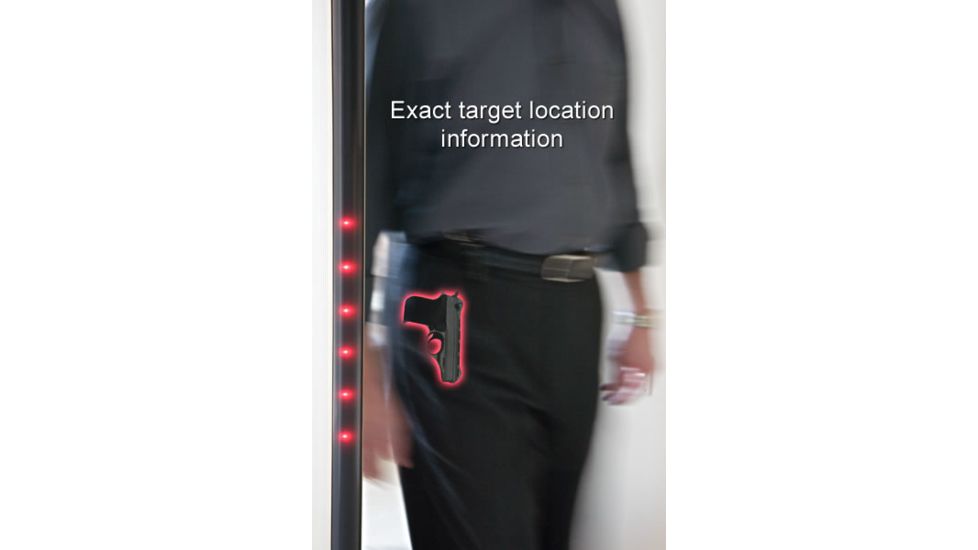

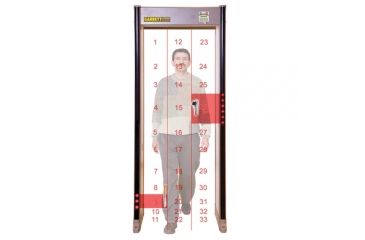

| Target Pinpointing Lights: | Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i. | |
| Programs: | Eighteen (18) independent programs designed to meet all installation specific requirements including European Airports and TSA's Enhanced Metal Detector (EMD) requirements for all U.S. airports. | |
| Multi-Unit and Multi-Brand Compatibility: | 2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-throughs. | |
| Interference Suppression: | Advanced analog and digital filtering"as well as adjustable operating frequencies"eliminate the potential effects from x-ray units, radios and other electrical interference sources. | |
| Traffic Counter: | Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage. | |
| Random Alarm Feature: | Provides ability to randomly alarm a selected percentage of non-alarming persons; adjustable from 0 to 50 percent. | |
| Alarms: | Audible tone and volume adjustable. Bright LED visual alarm. | |
| Pacing Lights: | International symbols located at entrance. | |

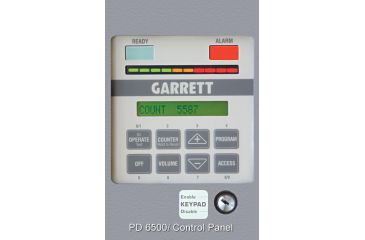

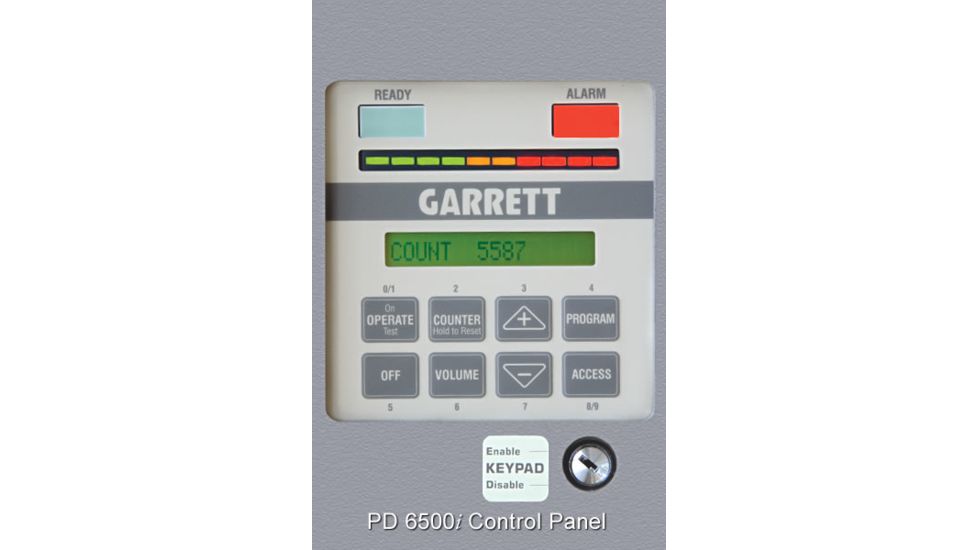

| Tamper-Proof: | All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics. | |
| Control Outputs: | Solid state switches (low voltage AC or DC) for operating external alarms and control devices. | |
| Construction: | Attractive scratch and mar-resistant laminate. Detection Heads and Support - Heavy duty aluminum. | |
| Warranty: | 24 months, parts and labor | |
Features of Garrett PD6500i Walk Through Metal Detectors:
- Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.
- The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all U.S airport installations.
- Multi-dimensional coil design (33 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.

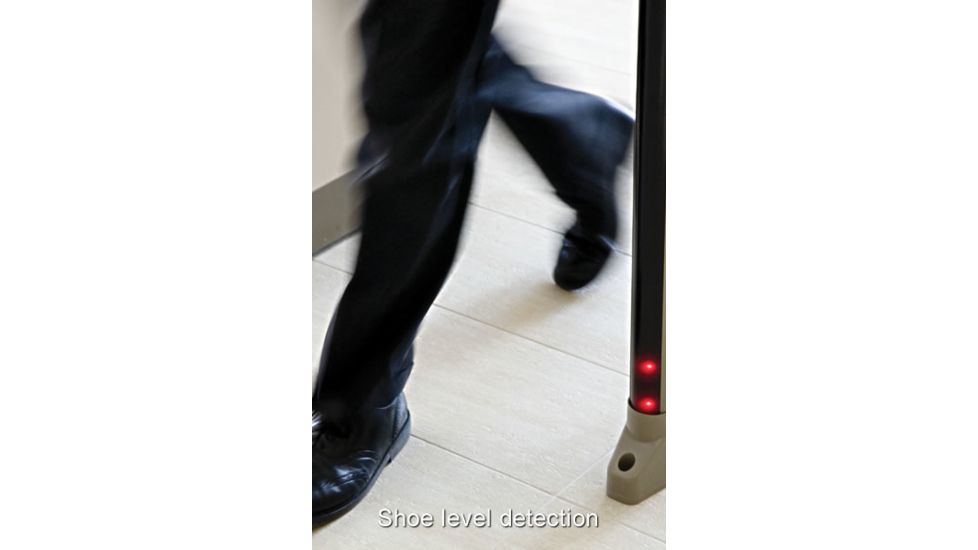

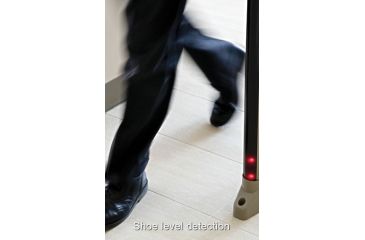

- Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.
- Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.
- Durable, IP 55 weather-proof construction.
Package Contents:
- Garrett PD 6500i Walk-Through Metal Detector
Garrett PD 6500i Walk-Through Metal Detector - 33 Detection Zones, TSA Certified Options
| Product Code | UPC | SKU | Garrett PD 6500i Walk-Through Metal Detector - 33 Detection Zones, TSA Certified Options |
|---|---|---|---|
| GT-MD-PDi-1168411 | 1168411 | Garrett PD6500i TSA-Certified 30-inch Walk-Through Metal Detector, Beige 1168411 | |
| GT-MD-PDi-1168414 | 1168414 | 1168414 | Garrett PD6500i TSA-Certified 30-inch Walk-Through Metal Detector, Gray 1168414 |
| GT-MD-PDi-1168433 | 1168433 | Garrett PD 6500i TSA-Certified Extra-Wide 32.5-inch Walk-Thru Metal Detector, Gray 1168433 | |
| GT-MD-PDi-1168432 | 007861560258 | 1168432 | Garrett PD 6500i Walk-Through Metal Detector - 33 Detection Zones, TSA Certified |
| GT-MD-PDi-1168412 | 078615600374 | 1168412 | Garrett LE PD 6500i EZL Walk-Through Metal Detector |
| GT-MD-PDi-1168428 | 078615600397 | 1168428 | Garrett LE PD 6500i 28in Walk-Through Metal Detector |
