Code: 0A-THM-SSFR1-TAVT36MNASIDE101
MPN: TAVT36MNASIDE101
UPC: 810081911665

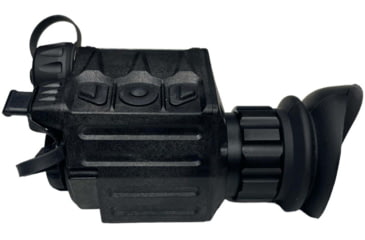

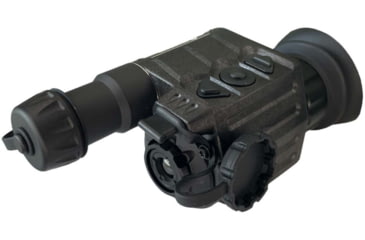

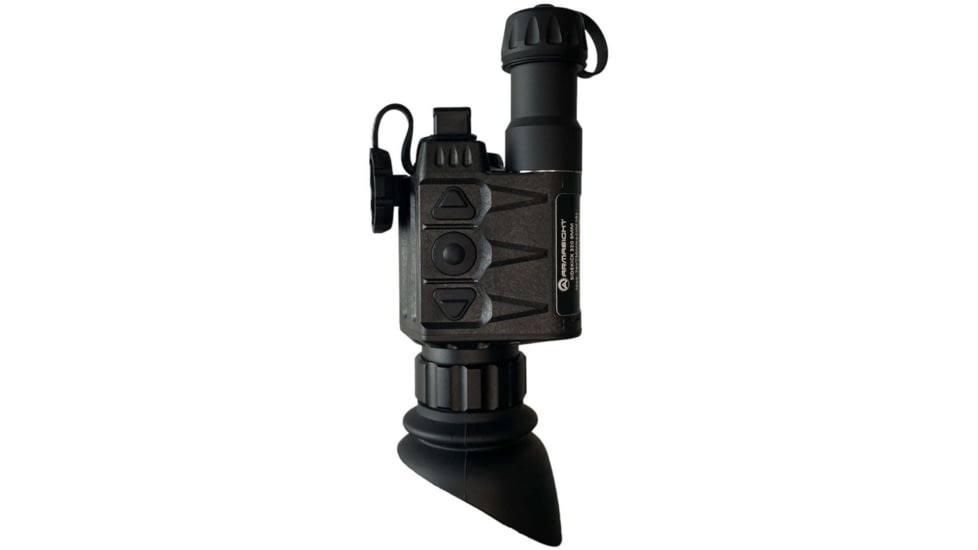

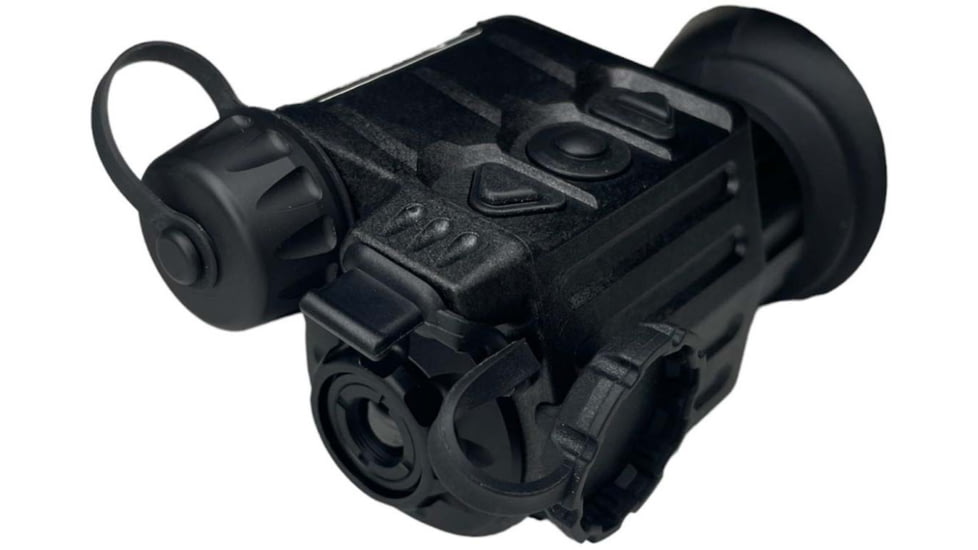

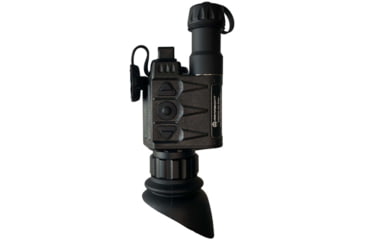

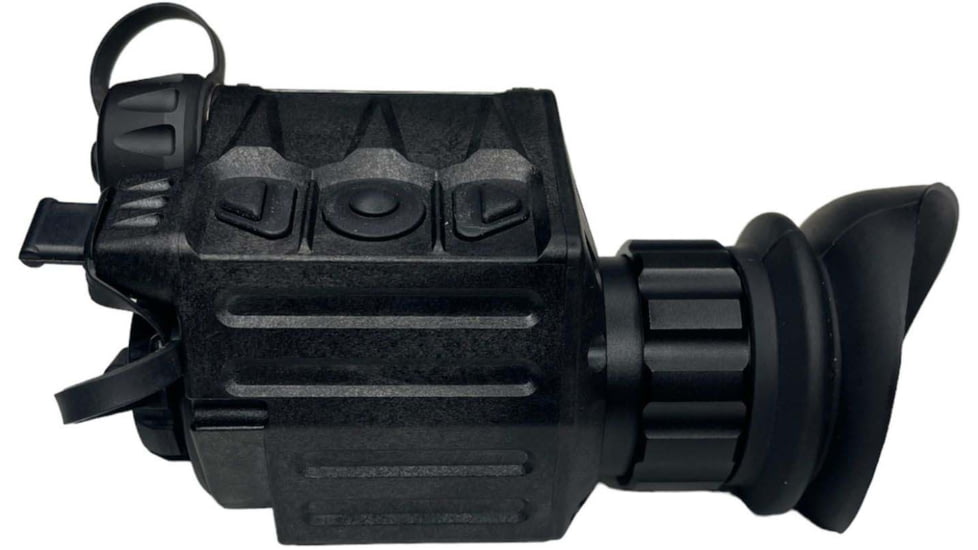

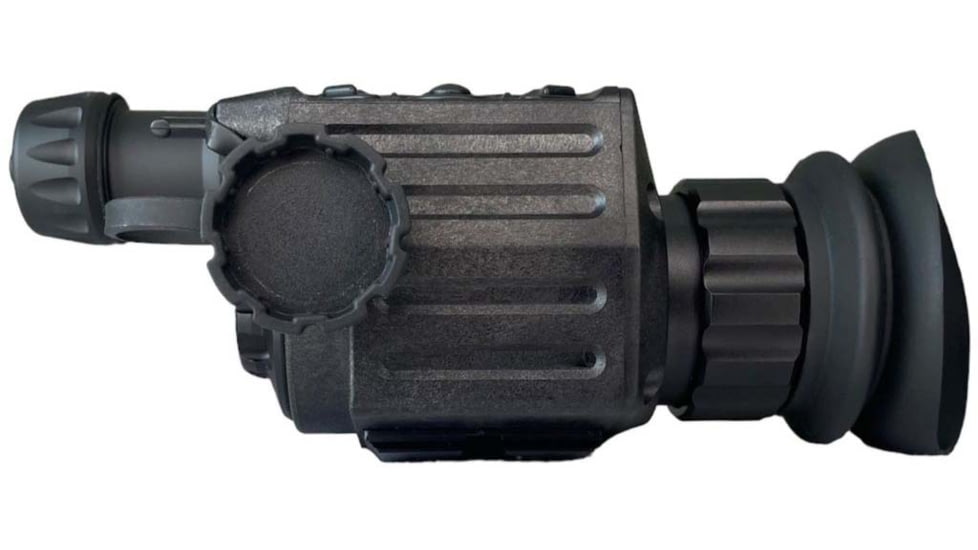

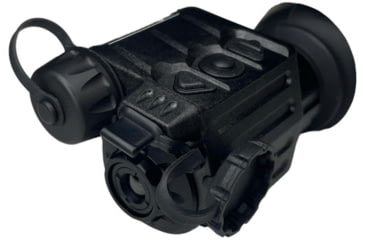

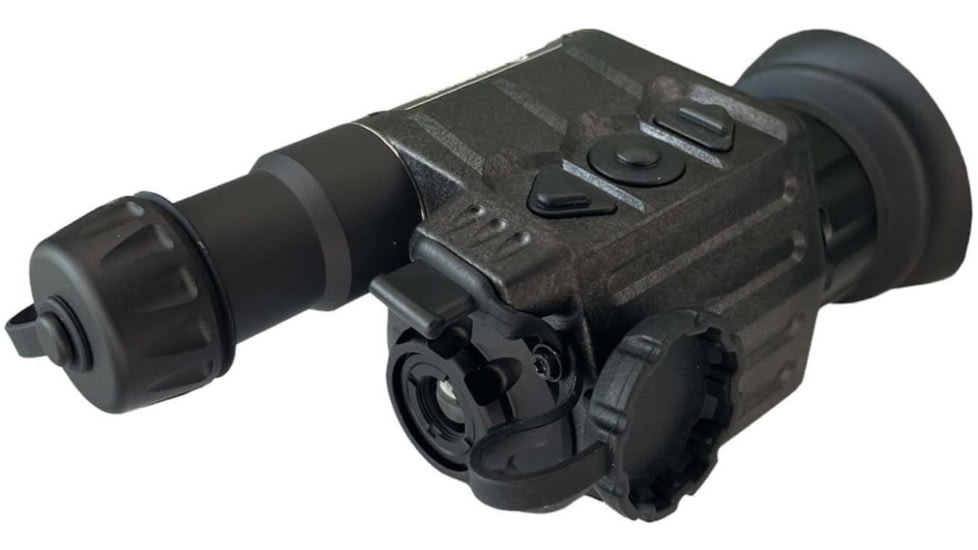

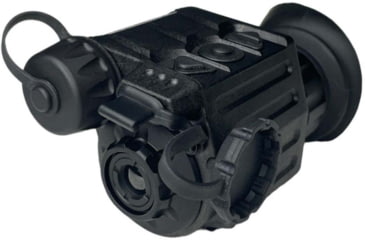

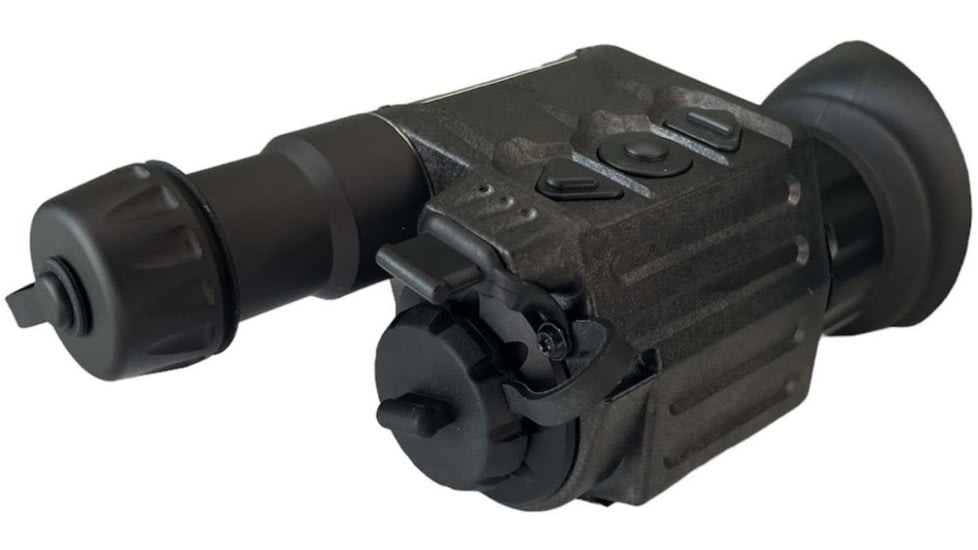

Product Info for Armasight Sidekick 320 1x9.1mm Thermal Monocular
The Armasight Sidekick 320 is the smallest multi-functional 12-micron thermal monocular on the market. Based on Armasight’s Iron Wolf thermal technology platform, the Sidekick 320 thermal monocular boasts a 60Hz frame rate for industry-leading image quality and sharpness. This Armasight 320 thermal weighs under 210 grams and can be used as a handheld thermal or mounted to a helmet using the built-in Dovetail mini rail. The high-definition 1024x768 OLED display delivers crisp images and features icons displaying key information like compass location and battery life.
With simplified 3-button controls and one-touch image and video recording, Sidekick 320 Thermal Imaging are incredibly easy to use and operate in the field. Choose from a variety of color palettes to suit your needs and utilize the USB-C port to attach an external battery pack for enhanced runtime. Buy the Armasight Sidekick 320 mini thermal monocular today to scout and survey day or night in any environment.
Specifications for Armasight Sidekick 320 1x9.1mm Thermal Monocular:
| Manufacturer: | Armasight |
| Magnification: | 1 x |
| Color: | Black |
| Resolution: | 240x320 pixels |
| Field of View, Angle: | 24.18-18.13 degrees |
| Objective Lens Diameter: | 9.1 mm |
| Width: | 2.6 in |
| Length: | 5.7 in |
| Height: | 1.9 in |
| Eye Relief: | 15 mm |
| Battery Type: | 16650, CR123A |
| Weight: | 0.46 lb |
| Water Resistance Level: | IP67 |
| Refresh Rate: | 60 Hz |
| Finish: | Black |
| Condition: | New |
| Lens Material: | Germanium |
| Operating Temperature: | -40 - 50 Celsius, -40 - 122 Fahrenheit |
| Condition Quality: | Excellent |
| Range of Detection: | 331 m on human sized target |
| Condition Details: | Other |
| Noise Equivalent Temperature Difference: | 40 mK NETD |
| Battery Quantity: | 1 |
Features of Armasight Sidekick 320 1x9.1mm Thermal Monocular
- Multiple color palettes
- Intuitive 3-button control
- 1 hour runtime on 1 CR123A battery at 20 degrees C
- Image Detail Enhancement
- Dovetail Mini-Rail Included for Helmet Mounting (with optional mount)
- Video Recording and Image Capture
- USB Video Stream
- USB-C Interface for External Devices
- Compass
- Battery Status Indicator
- ULTEM Composite Body and Ergonomic Design

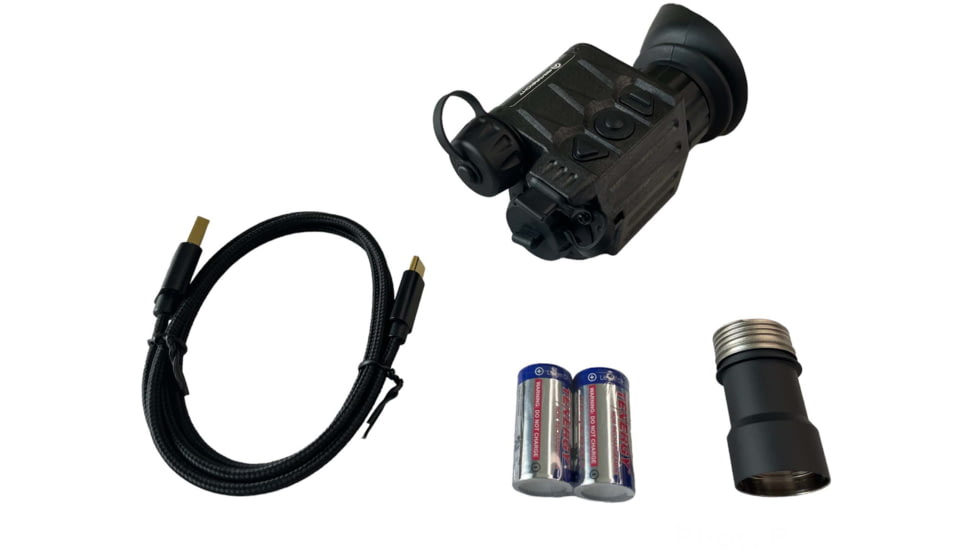

Package Contents:
- Armasight Sidekick 320 1x9.1mm Thermal Monocular
- Thermal Monocular
- 2 CR123A Battery
- USB-C Cable
- Product Manual
- Lens Cloth
- Soft Case
Armasight Warranty
The Armasight Warranty is built on trust when it matters most. Every Armasight product is designed for performance and durability, and we stand behind it. If your unit shows defects in materials or workmanship, we’ll repair or replace it—no charge. If we can’t, we’ll provide a product of equal or greater value.
Register your product within 60 days to extend coverage, gain access to updates, and ensure you’re mission-ready at all times.
Coverage:
- Night Vision Devices: 1 Year Standard / 3 Years Extended
- Thermal Imaging Devices: 1 Year Standard / 3 Years Extended
- Laser & Illumination Devices: 1 Year Standard / 3 Years Extended
- Accessories & Components: 6 Months Standard / 1 Year Extended
Your warranty applies to the original owner with proof of purchase. While it does not cover loss, theft, misuse, or cosmetic wear that doesn’t affect performance, you can count on Armasight to stand behind our commitment to quality and mission-ready reliability.
Armasight gear is built to perform—our warranty ensures it stays that way.
