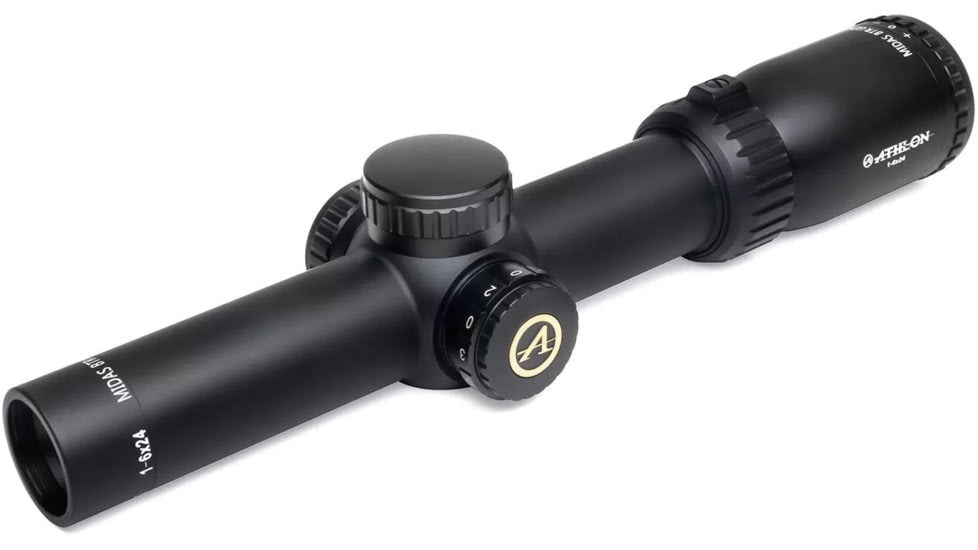

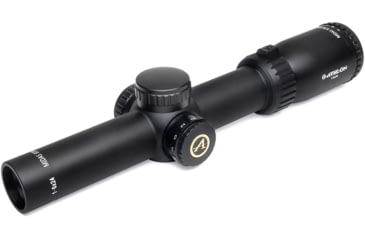

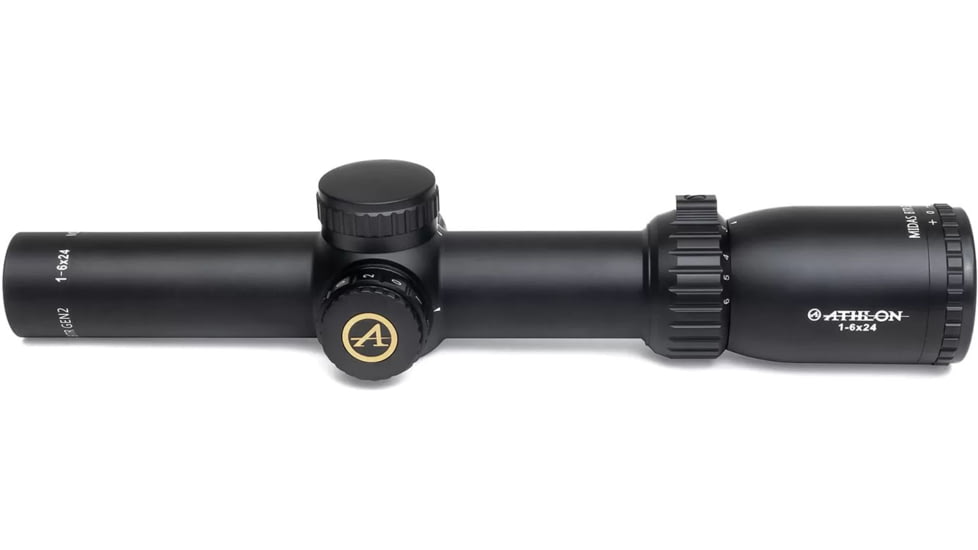

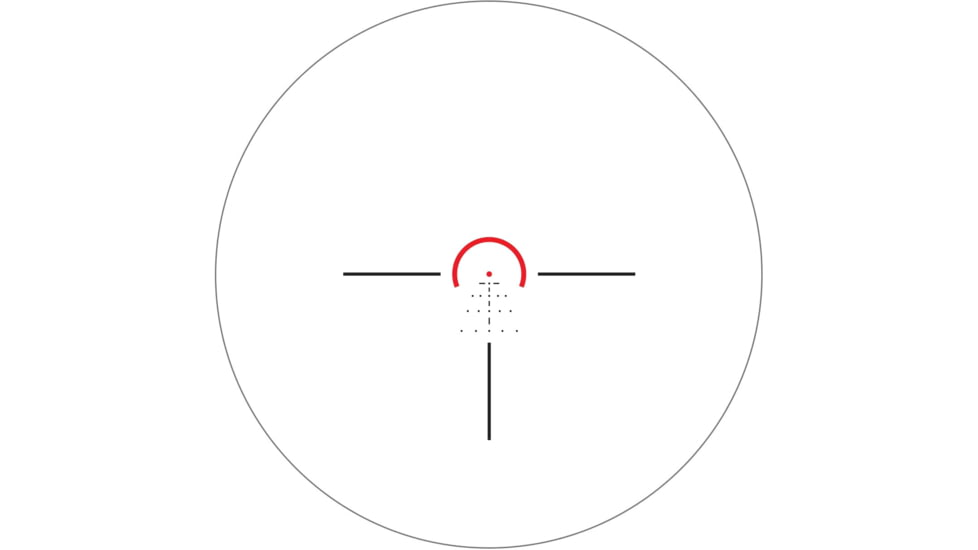

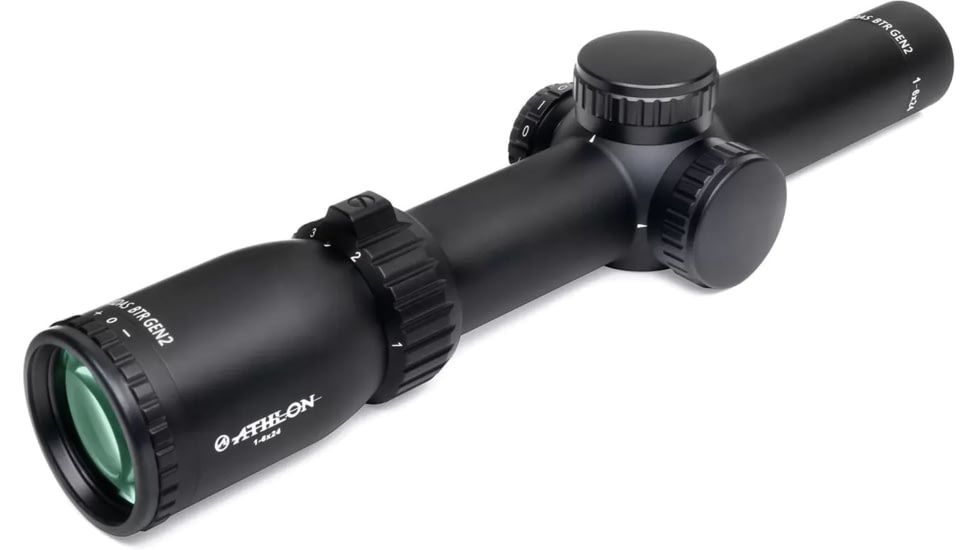

This Midas BTR GEN2 1-624 is equipped with ATSR4 reticle that is specifically designed for 3 gun competition. With hold over points for both bullet drop and wind compensation, the ATSR4 reticle is designed for 68 and 69 grain BTHP 223 Rem/5.56mm NATO rounds. It is also suitable for many other bullet weights in these calibers. The low profile capped turrets will ensure you stay zeroed. The 1.4 moa center red dot is perfect for zeroing your rifle at 200 yards. You can use the dots below the center red dot for targets at 300, 400, 500, and 600 yards. The unique design of the small size dots eliminate target obstruction on 12~18 inch targets beyond 200 yards and allow the shooter to take a quick shot. The dots on the left and right off the center line are the hold over points for 5 mph and 10 mph wind.
Manufacturer: | Athlon Optics |
Objective Lens Diameter: | 24 mm |
Magnification: | 1 - 6 x |
Tube Diameter: | 30 mm |
Reticle Focal Plane: | Second Focal Plane (SFP) |
Exit Pupil: | 4 - 12.5 mm |
Illumination Color: | Red |
Finish: | Matte |
Field of View, Linear: | 108 - 17.6 ft at 100 yds |
Eye Relief: | 3.8 in |
Color: | Black |
Weight: | 18.1 - 1.13125 oz |
Adjustment Click Value: | 0.5 MOA |
Length: | 10.6 in |
Adjustment Type: | MOA |
Parallax: | Fixed |
Illumination Type: | LED |
Battery Type: | CR2032, Lithium Metal |
Fabric/Material: | Aluminium |
Adjustment Range: | 50 MOA |
Focus Range: | 100 yds |
Lens Material: | Glass |
Optical Coating: | Fully Multicoated |
Weather Resistance: | Yes |
Water Resistance Level: | IPX-7 |
Shockproof: | Yes |
Fogproof: | Yes |
Battery Quantity: | 1 |
Magnification Type: | Variable |
Condition: | New |
W/E Travel at 100 Yds: | 120 MOA |
Gun Type: | Rifle |
Eyepiece Lens Diameter: | 43.18 mm |
Attachment Type: | Riflescope Ring |
