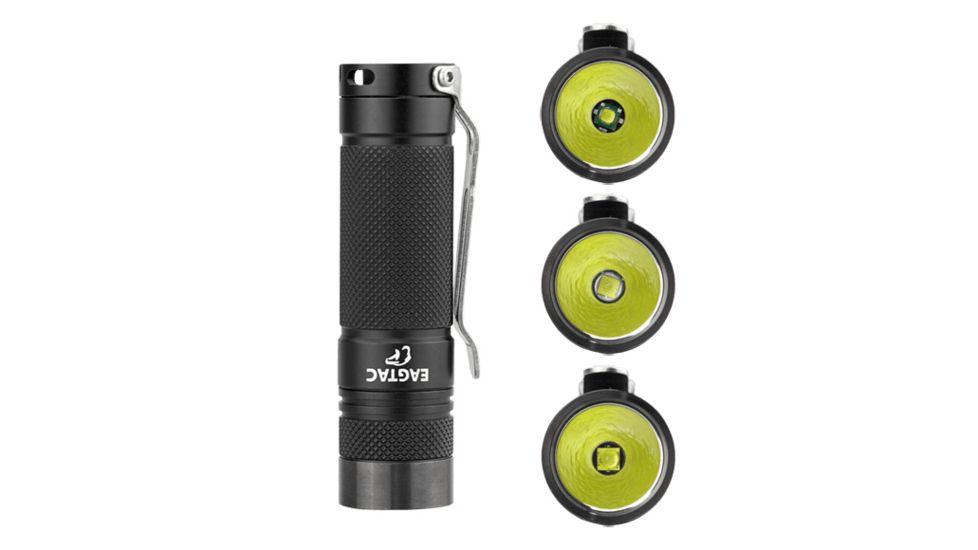

EAGTAC D Series D25C RC Clicky Ultimate Compact LED Flashlight w/ Free S&H — 7 models

EAGTAC adopts current regulated high efficiency circuit to manage current that goes through the LED.

High output that you can count on

This circuit survives the toughest torture environment including:

1) repeatedly over-night burn-in test,

2) over input voltage test,

3) over-driven output current test, and

4) high temperature oven test.

We designed this circuit to offer extreme output performance, while maintaining reasonable amount of headroom. Thus making this flashlight one of the top performer with a rock stable circuit design.

A950RC circuit

We use current regulation method to control the amount of current going through the LED for all output levels. This results in constant brightness output regardless of battery type, LED model, and temperature/voltage change .

This circuit utilizes low restrictive passive components and top-notched ICs/FETs to ensure ultra-high efficiency and low drop-out voltage.

D25C runs for 150+ hours on its lowest brightness level. The current regulated circuit design allows constant output throughout its runtime for all output levels without PWM-flicking.

At highest brightness level, D25C current regulates for 0.9 hours using a single CR123A battery.

The current regulation control method allows the just right of amount of current going through the LED. This results in constant brightness output regardless of battery type, LED variation, and temperature change.

One of the most powerful single AA cell flashlight available!

Maximum lumen output

LED lumen

XM-L2 U4: 5191/339/38/1

XP-L HI V3: 4501/293/31/1

XP-G2 S3: 4371/287/40/1

Nichia 219 (CRI-92): 3001/287/40/1

ANSI FL-12 lumen

XM-L2 U4: 3631/240/28/0.5

XP-L HI V3: 3301/223/28/0.5

XP-G2 S3: 2911/192/27/0.5

Nichia 219 (CRI-92): 2001/129/16/0.5

Turbo boost technology

1) Turbo boost technology is activated every time you turn on at turbo output setting. It offers 20% more power to the LED for the first 200 seconds at turbo mode.

2) ANSI FL-1 is the total overall light output being emitted from the flashlight. This measurement is generally more accurate as it takes into consideration the loss from reflector/lens/bezel. EAGTAC ANSI FL-1 Lumen output is measured using a calibrated integrated sphere three minute after turning on the flashlight.

Top binned LED

Cool White LED

CREE XM-L2 U4 LED

CREE XP-L HI V3 LED

CREE XP-G2 S3 LED

Neutral White LED

CREE XM-L2 U2 LED

CREE XP-L HI V2 LED

Nichia 219B SW45 D220 LED

Color tint selection

Cool White LED

This gives you the maximum brightness output in its class and maximum beam distance.

Neutral White LED

If you need awesome beam output out in the woods, or areas with a lot of green vegetation, use our neutral white LED as it offers higher CRI (Color rendering index). Neutral white LED renders color like the sun in the afternoon. Neutral white LED is approximately 7% dimmer than our top binned cool white LED, but it's well worth the ability to see the real color of your surrounding.This gives you better color rendition and more accurate color relative to cool white LED.

CREE XP-G2 S3 LED

291 ANSI lumen, Good far projecting performance, excellent beam profile

XP-G2 is the best well-balance LED for this flashlight in terms of beam profile, output, far projecting and up close beam performance.

Offers up to 550 LED lumen when direct drive with 16340 li-ion battery.

XP-L HI is the best well-balance LED for this flashlight in terms of beam profile, output, far projecting and up close beam performance.

Offers up to 550 LED lumen when direct drive with 14500 li-ion battery.

CREE XM-L2 U4 LED

162 ANSI lumen, Fair far projecting performance, excellent (relatively floody) beam profile

Offers up to 803 LED lumen when direct drive with 14500 li-ion battery.

(Cool white LED beam profile shown above) Neutral white LED shares the same beam profile as its cool white version.

Nichia 219B SW45 D220 LED

Nichia 219 is currently the only one in the market that offers high 92 CRI in neutral white tint of 4500K. The 219 LED offers very nice smooth beam and gives you the best illuminated object color. We use the highest flux D220 for maximum output.

Self intuitive, easy-to-use, nothing to memorize.

Clicky on/off switch & Twisty head

Easy on/off operation

Press the switch button until it clicks to turn on the flashlight. To switch off the light, press the switch again until it clicks.

Output adjustable

Half press the switch button to switch to next output level. With the head loose, AUX hidden modes are available after you repeat two sets of regular low-med-high output. Loose the head for group one output, and tighten the head for group two output.

Programmable settings

Moonlight output (disable by default) - disable or enable the moonlight output. The entire output range of the group 1 output will be shifted to a brighter output set or a dimmer output set accordingly. Toggle this setting starting with head loosen, turn on the light, and then repeat tight and loose for three times.

Turbo boost technology

This is activated every time you turn on at turbo output setting. It offers 20% more power to the LED for the first 200 seconds at turbo mode. Its normal for the light to get warm at such level. Do not leave the light running unattended.

Gorgeous Knurling.

Supreme handling.

The CNC precisely cut and rolled square-shape knurling provides a sure grip throughout the entire flashlight body.

Your safety is our first priority

Inserting battery in the wrong direction may lead to serious damage to the flashlight and the battery. We incorporate a physical structure to protect against reverse polarity without compromise (battery with a protruding button top is required).

Excellent thermal path

The one piece head design allows the LED to dissipate heat quickly to the outside world. This result in higher output (LED looses output as junction temperature increases) and longer LED life.

Durable structure against drop impact

The stainless steel bezel provides highly drop resistance. O-ring is used as cushion to protect and waterseal the harden waterwhite glass lens (with anti-reflective and Sapphire coating)

Stainless steel pocket clip.

The stainless steel pocket clip clips on almost everywhere. To remove the custom M2 hex screw on the flashlight. A custom-made M1.55 hex key is required (available via ET dealers or us).

paracord lanyard.

Carry the mil-spec paracord lanyard with or without the pocket clip. D25C mini also allows tail-stand when lanyard is attached.

Light candle.

Place the flashlight on any flat surface to light up the surrounding.

Specifications for EAGTAC D Series D25C RC Clicky Ultimate Compact LED Flashlight:

Features of Eagtac D Series D25C RC Clicky Ultimate Compact LED Flashlight:

• Stainless steel pocket clip (Titanium coated)
• Stainless steel bezel (Titanium coated)
• Rigid Nylon Holster
• Mil-Spec paracord lanyard
• Included Accessories:
• Stainless steel bezel w/ durable dark titanium coating
• Spare o-rings
• Stainless steel pocket clip (Titanium coated)
• User Manual
• Rigid Nylon Holster w/ self-retention device and flip
• Mil-Spec paracord lanyard w/ quick attachment clip

Package Contents:

• EAGTAC D Series D25C RC Clicky Ultimate Compact LED Flashlight
