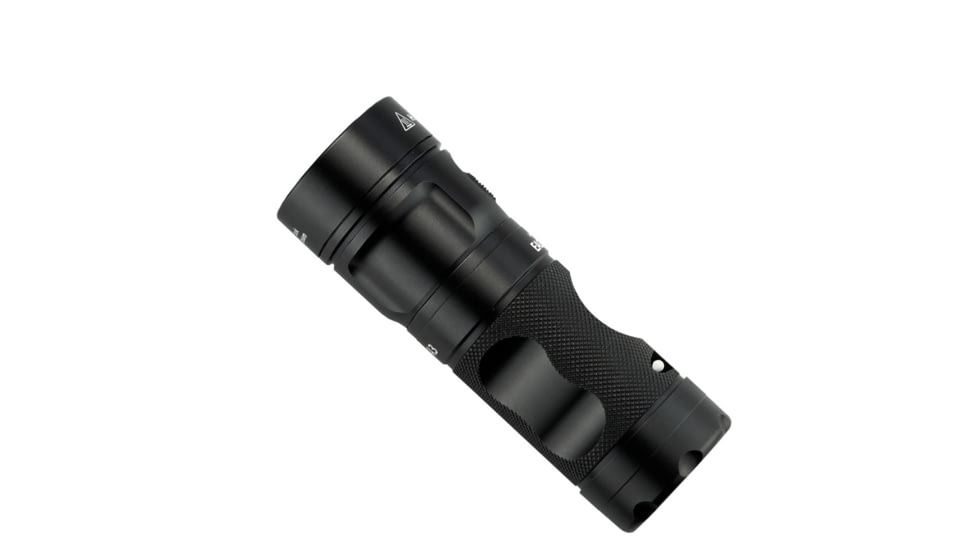

EAGTAC G Series GX25A3 Compact Daily LED Flashlight w/ Free S&H — 4 models

Reliability that you can count on

We design this circuit to survive the toughest torture environment including: 1) repeatedly over-night burn-in test w/ minimal cooling, 2) over input voltage test of up to 13.5V, 3) over-driven output current test of up to 4A, and 4) high temperature bake test.

Our experienced electronic engineers ensure all components are working at its maximum efficiency and highest stability with the optimally planned and implemented circuit pcb layout. All chosen electrical components in this circuit design have good amount of headroom to ensure high stability in long term usage.

Inside the C3000 ST

This highly efficient synchronous buck current regulated circuit controls the precious amount of current that goes through the LED at all output levels. This results in constant brightness output regardless of LED variation, battery voltage, and temperature change. Our smart EMI management and quick soft-start design provide clean electricity to power the LED with enhanced service life.

Our synchronous buck converter is more technologically advanced and compact than competitor standard LED driver. Ours utilize low RDS(on) high power external mosfets, rugged & shielded power inductor, low ESR tantalum capacitors, and low resistance 2 oz copper PCB for maximum efficiency. This also lower required input voltage to current regulate the LED at maximum output when the battery voltage is near the LED forward voltage.

The microprocessor is programmed to provide handy and easy-to-use interface for users. When the flashlight is turned off, it shuts off all unnecessary components and waits for response to user command at very low standby current (uA).

Excellent runtime & efficiency

We use highly precise operating amplifier with very low offset voltage to control the output current. This allows GX25A3 to run for 100+ hours on its lowest brightness level and constant regulate all output levels without LED flicking.

At its highest brightness output, GX25A3 runs for 1.3 hour using two standard eneloop batteries with energy saving feature enabled. More runtime can be obtained when you use higher capacity batteries.

We strive to offer the brightest and the most efficient flashlight in the market regardless of added cost. Professional reviewers found our lights to be one of the brightest with their integrated sphere and lux meter. They typically report up to 20%-30% more runtime than other competitors during their runtime test. We always believe performance and function come before fancy appearance.

Maximum lumen output

LED lumen

XM-L2 U4: 12781-1162/418/11

ANSI lumen2

XM-L2 U4: 10481-953/345/10

Energy saving technology

1) This feature prolongs turbo output runtime, by reducing output current by 45% after 200 seconds at turbo mode. With this feature disabled by user, it reduces output current by only 15% after 200 seconds at turbo mode for higher output.

2) ANSI FL-1 lumen is the total overall light output being emitted from the flashlight. This measurement is generally more accurate as it takes into consideration the loss from reflector/lens/bezel. EAGTAC ANSI FL-1 Lumen output is measured using a calibrated integrated sphere one minute after turning on the flashlight.

Cool White LED

CREE XM-L2 U4 LED

CREE XP-L HI V3 LED

Neutral White LED

CREE XM-L2 U2 LED

CREE XP-L HI V2 LED

XM-L2 and CREE are registered trademark of CREE Inc.

Color tint selection

Cool White LED

This gives you the maximum brightness output in its class and maximum beam distance.

Neutral White LED

If you need awesome beam output out in the woods, or areas with a lot of green vegetation, use our neutral white LED as it offers higher CRI (Color rendering index). Neutral white LED renders color like the sun in the afternoon. Neutral white LED is approximately 7% dimmer than our top binned cool white LED, but it's well worth the ability to see the real color of your surrounding.This gives you better color rendition and more accurate color relative to cool white LED.

CREE XM-L2 U4 LED

Crazy 1048 ANSI lumen from a little light, excellent far projecting performance, excellent beam profile, great for close-up use with lowered brightness.

(Cool white LED beam profile shown above) Neutral white LED shares the same beam profile as its cool white version.

Specifications for EAGTAC G Series GX25A3 Compact Daily LED Flashlight:

Features of Eagtac G Series GX25A3 Compact Daily LED Flashlight:

• Clicky on/off side switch & Twisty head
• Easy on/off operation
• Turn on the light by press and release the on/off button switch (Included Accessories:
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• Tailcap with rear switch
• Heavy duty nylon holsterw/ self-retention device and open-top design

Package Contents:

• EAGTAC G Series GX25A3 Compact Daily LED Flashlight
