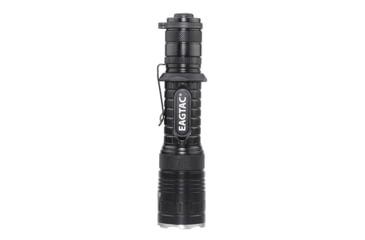

EAGTAC T Series T25C2 LED Flashlight w/ Free S&H — 4 models

The C3300 Extreme circuit dominate the output competition with its ultimate power management ability and proven stability.

T25C2 without boundary

Whether you're professionals that uses ultraviolet (UV) 365nm/395nm output for inspection/verification/curing, or specialists that uses infrared (IR) 850nm/940nm output for night vision purposes, or artists/perfectionists that uses high CRI, or hobbyists that uses multi-color LED for outdoor sport, the T25C2 offers a wide selections of optional LED drop-ins that comes in different wavelength and output to suit your special needs.

With improved LED efficiency and circuit performance introduced from LED or IC manufacturers almost every few years, always enjoy the latest technology and new functions by upgrading to the latest LED module at a very reasonable cost.

C3300 Extreme3

This highly efficient synchronous buck current regulated circuit controls the precious amount of current that goes through the LED at all output levels. This results in constant brightness output regardless of LED variation, battery voltage, and temperature change. The Low EMI management and quick soft-start design provide clean electricity for the circuit and LED to enhance their service life.

Our synchronous buck converter is more technologically advanced and compact than regular buck converter. It also allows more board space for our exceptionally low DCR mosfets, rugged & shielded power inductor, and low ESR tantalum capacitors. This together leads to very high efficiency and low dropout voltage which allows single 18650 to regulate at turbo for most of the runtime.

Excellent runtime and flat regulation

T25C2 runs for 150+ hours on its lowest brightness level with EAGTAC 3400mAh 18650 li-ion. The current regulated circuit design allows constant output throughout its runtime for all output levels without flicking.

At highest brightness level, T25C2 current regulates for 1 hour using two EAGTAC CR123A batteries. With two 3400mAh 18650 batteries (using 4 cells body extender) you get about 3.3 hours of runtime on high (2.5 hours with energy saving feature turned off).

The current regulation control method allows the just right of amount of current going through the LED. This results in constant brightness output regardless of battery type, LED variation, and temperature change.

High lumen output

LED lumen

XM-L2 U4 (Cool White): 13501-1042/614/115/9

XM-L2 U2 (Neutral White): 11801-910/536/100/8

ANSI FL-12 lumen

XM-L2 U4 (Cool White): 12651-978/576/111/9

XM-L2 U2 (Neutral White): 9651-746/440/85/7

Smart energy management

1) Energy saving feature (on by default) reduces lumen output by 24% after 200 seconds at turbo mode. With this feature turned off, turbo mode output lumen will be reduced by only 8% instead after 200 seconds. If you wish to turn off this feature, we recommend only do so when you are using 18650 batteries or more than two CR123A for better runtime.

2) ANSI FL-1 Lumens is a measurement of light output standardized by American National Standards Institute for use with flashlights. This ANSI Lumen measurement is the total overall light output being emitted from the flashlight. This measurement is generally more accurate as it takes into consideration the loss from reflector/lens/bezel. EAGTACs ANSI Lumen output is measured using a calibrated integrated sphere three minutes after turning on the flashlight.

CREE XM-L2 U2 LED

Cool White output

This gives you the maximum brightness output in its class. Our XM-L2 LED offers 1350 LED lumen at turbo mode with industrial leading efficiency (175+ lumen/watt at 700mA current output).

Neutral White output

If you need awesome beam output out in the woods, or areas with a lot of green vegetation, use our neutral white LED as it offers higher CRI (Color rendering index) compared to cool white LED. Neutral white LED renders color like the sun in the afternoon. XM-L2 T6 Neutral white LED is approximately 7% dimmer than our top bin limited edition U2 cool white LED, but it's well worth it if you prefer the comfortable neutral color tint.

neutral color tint.

Color temperature choices

Cool White LED

This allows you to view the object with maximum brightness output and gives you maximum beam distance.

Neutral White LED

This gives you better color rendition and more accurate color relative to cool white LED.

Beam distance

The T25C2 beam reaches 287 yards / 262 meters at turbo output with the XM-L2 U2 LED.

Reflector

T25C2 uses polished aluminum reflector with smooth reflective finish for maximum output and far projecting beam. No donut, dark dot, or artifacts inside the beam.

Output color transformer

Red color filter

Low light application.

Yellow color filter

Design to use in rain and fog. Also ideal for caving.

Blue color filter

Low light application. Great for investigation and inspection.

Green color filter

Great for hunting and fishing lighting.

Spot and floody beam

Diffused beam

Use the optional diffused filter to instantly transform between spot and floody beam. The floody diffused beam is great for close up work.

Specifications for EAGTAC T Series T25C2 LED Flashlight:

Features of Eagtac T Series T25C2 LED Flashlight:

• Introducing the T25C2 user interface
• Easy and Trusty operation
• Switch on and off:
• Turn on the light by pressing the tailcap button until it clicks
• Slightly press for momentary on/off.
• Switching between output
• Twist the head to select between turbo
• high
• and medium output levels
• You can pre-selected output level before turning on the light
• To access the lowest level
• switch to medium level (3rd level)
• then high level (2nd level)
• and then back to 3rd level within one second for the lowest output.
• Cycle through auxiliary modes
• Tighten the head (1st level)
• and loosen to 3rd level and then tighten the head within one second to enter auxiliary setting
• Repeat to cycle through all settings
• Turn off the light or loosen the head to quit.
• Other powerful features
• T25C2 comes with two pre-defined modes
• i) Tactical mode which includes Hi/Lo brightness levels and a strobe output for tactical use; ii) Regular mode which includes four well separated brightness level for general use
• To toggle between modes
• dial to 2nd output level and turn the flashlight on and off for 20 times.
• Tail strobe feature (off by default): With this enabled
• you can access strobe output at the tailcap switch button
• To enable (or disable) this function (disable from factory)
• dial to 1th level and turn the flashlight on and off 20 times (one second or less between each click)
• With the tailcap strobe setting enabled
• double pressing the switch button (within one second) will activate the strobe output.
• Energy saving feature (on by default): T25C2 reduces output by 24% after 200 seconds at turbo mode
• With this feature turned off
• turbo output will be reduced by only 9% after 200 seconds at turbo mode
• To toggle this feature
• dial the head to 3rd level and turn the flashlight on and off for 20 times
• Once setting has been changed
• LED will output 3 seconds at 100% (enable)
• or 1 second at 100% (disable).
• High level of confidence
• Gorgeous knurling
• T25C2 offers a sure grip with or without gloves
• The body and the knurling surface are slightly polished by nylon wheels to give excellent gripping comfort.
• Safety protection
• Battery reverse polarity protection
• Your safety is our first priority
• Inserting battery in the wrong direction may lead to serious damage and fire
• We incorporate a physical structure to protect against reverse polarity without compromise (battery with a protruding button top is required).
• Try our world shortest Panasonic based 3400mAh protected 18650 with protruding button
• it features industrial leading 3400mAh capacity and our trusty protective circuit is good for 6A of continuous output.
• Battery stabilizer
• We incorporate a spring loading mechanism in the flashlight body to prevent the batteries from rattling inside the body
• This allows reliable battery contact regardless of head tighten or loosen.
• Always ready for you
• One press for MAX or MIN output
• Unlike others that needs to cycle through modes or levels to get to the output you need
• With head tighten/loosen
• turning on the flashlight will always get you the maximum/minimum output power.
• Four pre-defined output
• Turn the head to access all three output levels
• You can pre-select your desired output before turning on the light
• For the lowest hidden output
• start from head loose
• tight and loose the head to enter the lowest output setting
• This setting is especially useful when you are in a dark environment and need to preserve your adapted night vision.
• Included Accessories:
• Heavy duty nylon
• Mil-Spec Para-cord Lanyard
• Tail stand rubber add-on

Package Contents:

• Eagtac T Series T25C2 LED Flashlight
• Mil-Spec Para-cord Lanyard
• Tail stand rubber add-on
