Maretron DCR100-01 Direct Current Relay Module w/ Free Shipping
Tap Tap to Zoom
Code: 35A-XA-CWR6456-DCR100-01
MPN: DCR100-01
UPC: 873804003108

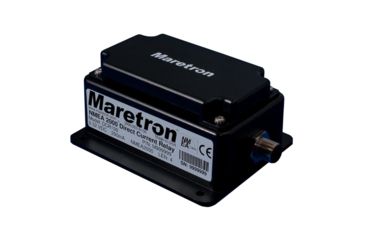

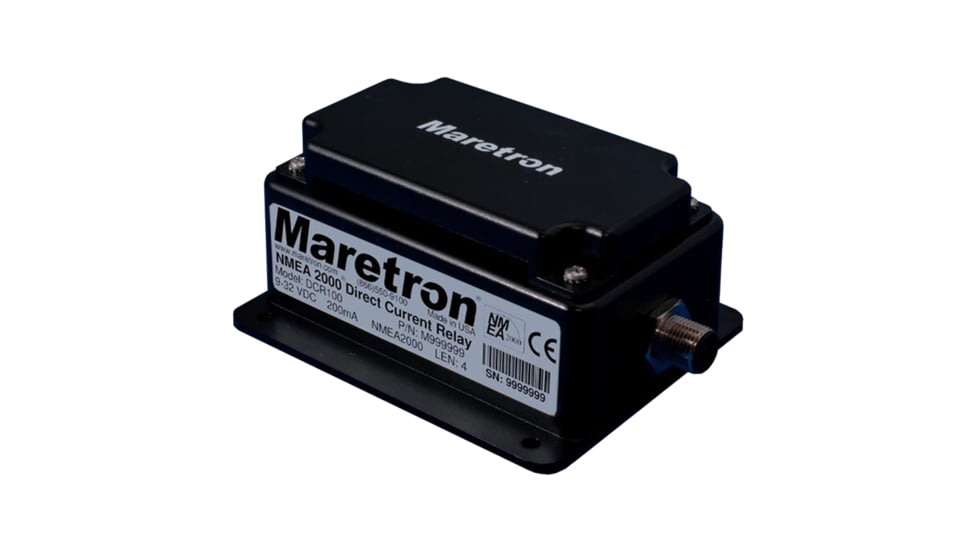

Product Info for Maretron DCR100-01 Direct Current Relay Module
Maretron's DCR100 contains 6 Direct Current (DC) relays each capable of switching up to 10amps. The DCR100 connects directly to an NMEA 2000 network so you can turn on and off the relays from any device onboard or remotely running Maretron's N2KViewr software. The DCR100 easily handles resistive DC loads like lights or inductive DC loads like pumps and motors. The DCR100 can also be used to switch AC circuits using external relays.
An added benefit of the DCR100 is that it reports the current through each of the six channels. This allows you to determine if loads are drawing too little electrical current such as burnt out bulbs or if the loads are starting to draw too much electrical current.
Specifications for Maretron DCR100-01 Direct Current Relay Module:
| Manufacturer: | Maretron |
| Color: | Black |
Features of Maretron DCR100-01 Direct Current Relay Module
- Load Equivalence # (LEN): 4
Package Contents:
- Maretron DCR100-01 Direct Current Relay Module
