MDT Elite Scope Rings w/ Free Shipping — 10 models
Tap Tap to Zoom
Code: 3JN-RR-ESRS-102715-BLK
MPN: 102715-BLK
UPC: 723905910488
Code: 3JN-RR-ESRS-104100-BLK
MPN: 104100-BLK
UPC: 709951109281
Code: 3JN-RR-ESRS-102718-BLK
MPN: 102718-BLK
UPC: 723905910518
Code: 3JN-RR-ESRS-102712-BLK
MPN: 102712-BLK
UPC: 723905910457
Code: 3JN-RR-ESRS-104101-BLK
MPN: 104101-BLK
UPC: 682131925096
Code: 3JN-RR-ESRS-102771-BLK
MPN: 102771-BLK
UPC: 723905910440
Code: 3JN-RR-ESRS-104102-BLK
MPN: 104102-BLK
UPC: 682131925102
Code: 3JN-RR-ESRS-102714-BLK
MPN: 102714-BLK
UPC: 723905910471
Code: 3JN-RR-ESRS-102708-BLK
MPN: 102708-BLK
UPC: 723905910426
Code: 3JN-RR-ESRS-102717-BLK
MPN: 102717-BLK
UPC: 723905910501

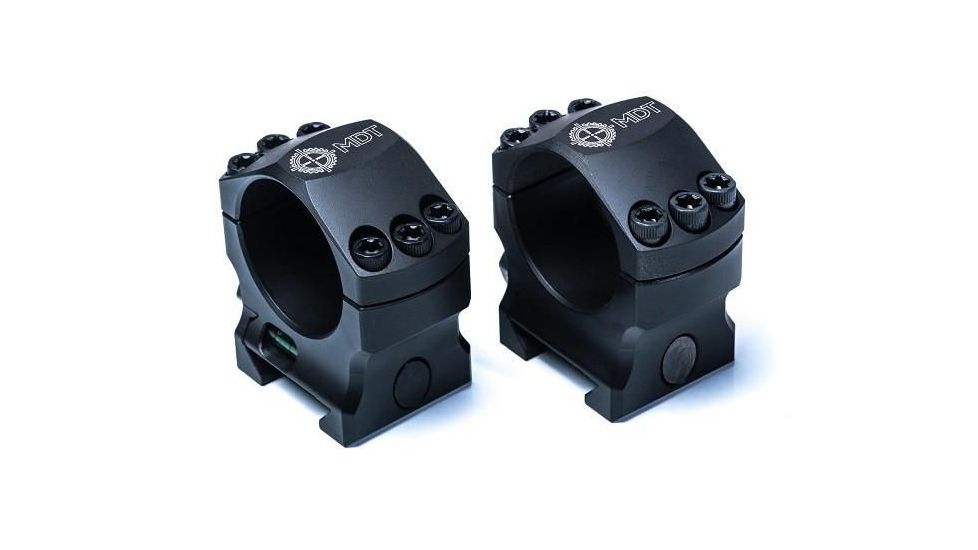

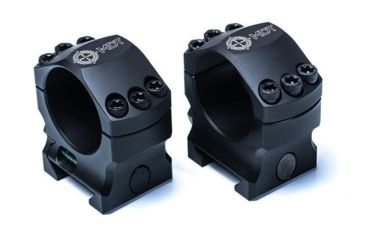

Product Info for MDT Elite Scope Rings

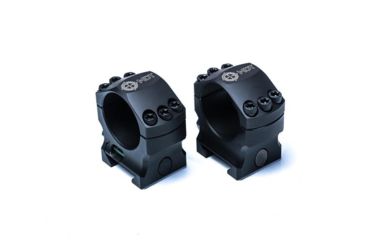

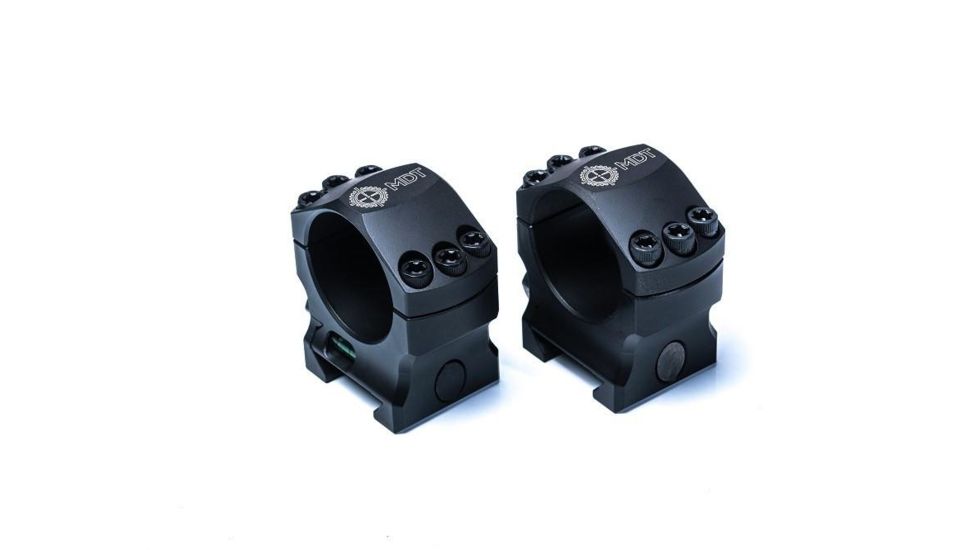

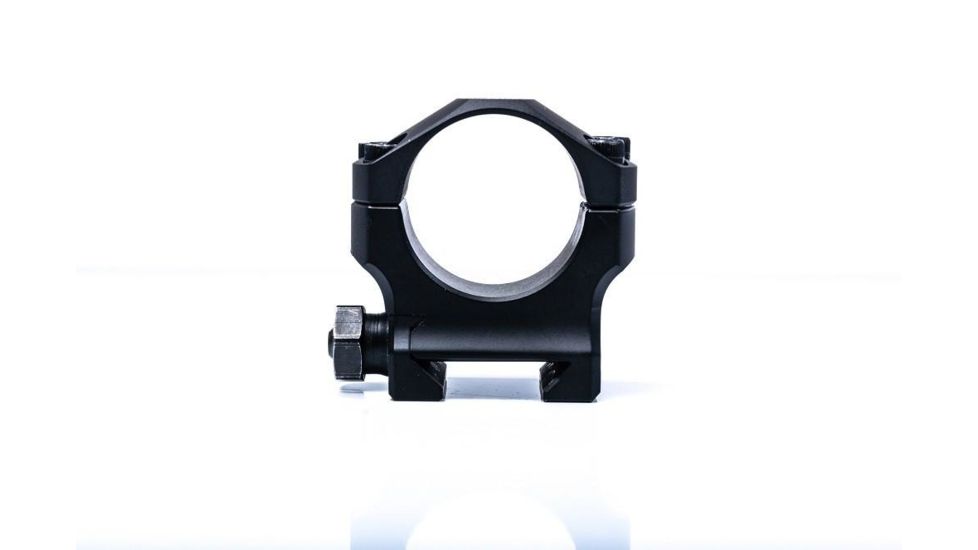

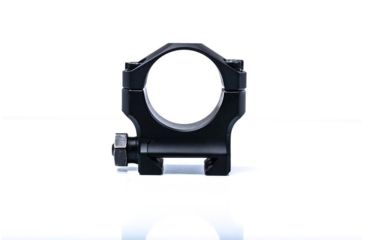

Our Elite Scope Rings offer a solid, lightweight mounting system for your optics. Made from precision-machined aluminium, these are available in three diameters:
- 30mm
- 34mm
- 35mm
And four heights (top of rail to center of bore):
Low: 20.8 mm (0.820in)
Medium: 25.4mm (1.000in)
High: 31.8 (1.250in)
Extra-High: 38.1mm (1.500in)
Our rings are designed for ultimate precision and strength:
- 25mm (0.984in) of lateral contact with scope tube
- 30mm (1.181in) of lateral contact with mounting rail
The main body is machined on an automated seven-axis, high-end CNC machine tool.
Extra wide profile provides extremely stable mounting The bottom rail interface is machined at the same time as the scope clamp interface, guaranteeing all rings are square and parallel. CMM checked to 1.5 millionths of an inch precision. Machined from Billet 7075-T651 Aluminum - 1/3 the weight of steel with similar strength.
Extra thick clamp system will never bend, fatigue, or become loose with use.
Specifications for MDT Elite Scope Rings:
| Manufacturer: | MDT |
| Finish: | Matte |
| Ring Quantity: | Pair |
| Condition: | New |
| Color: | Black |
| Country of Origin: | Canada |
Features of MDT Elite Scope Rings:

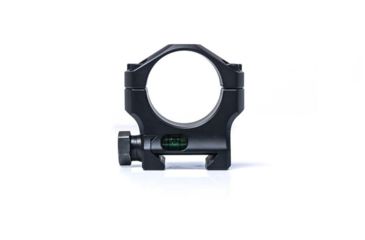

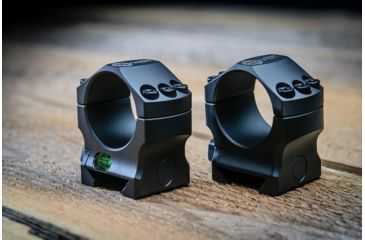

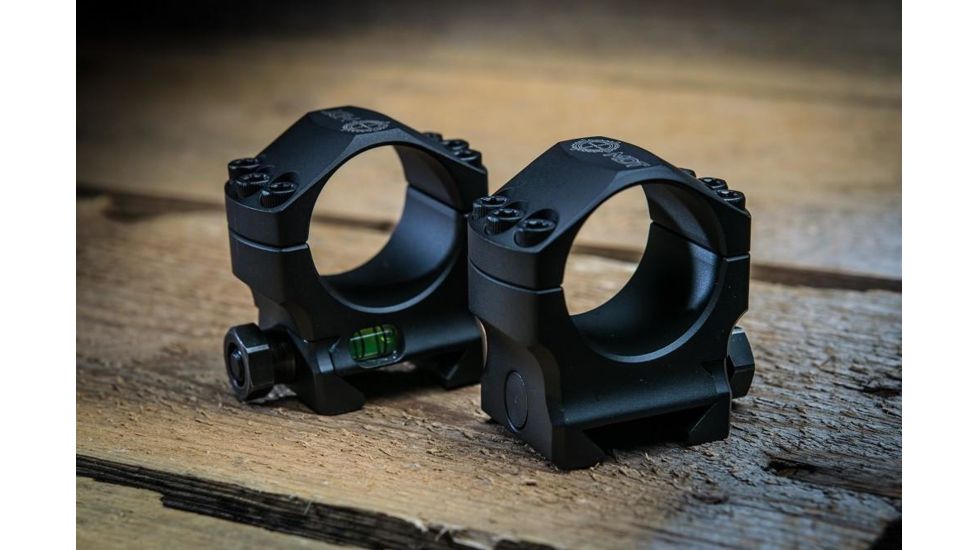

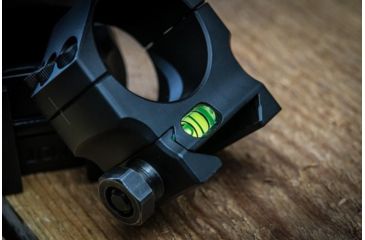

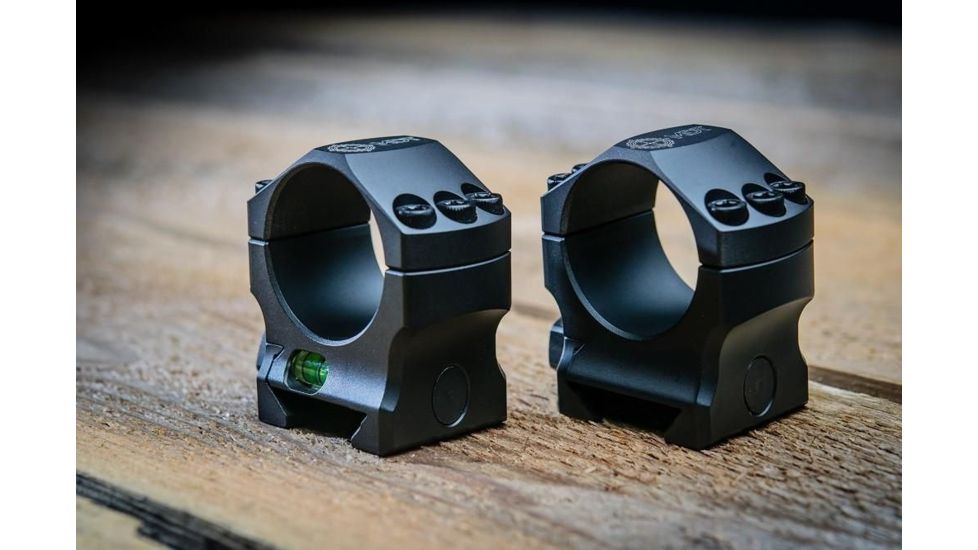

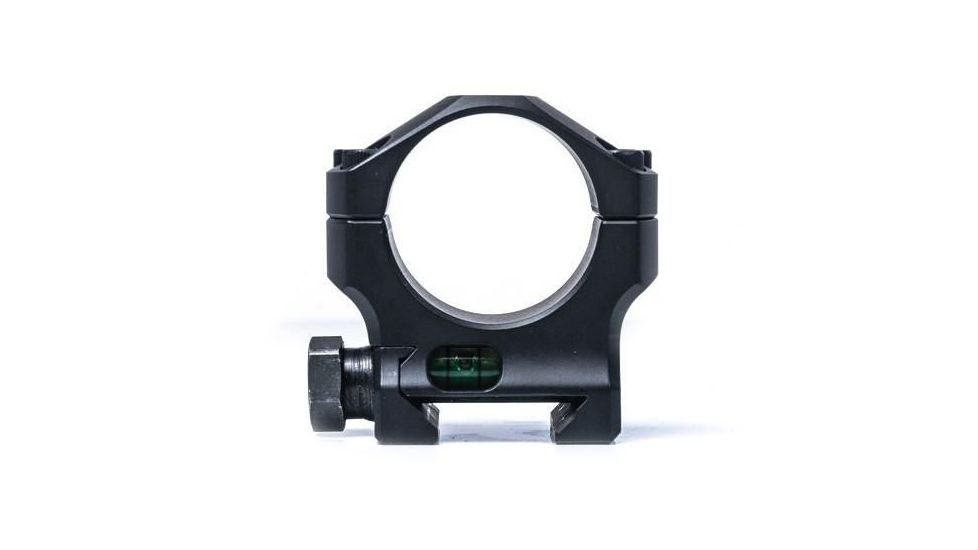

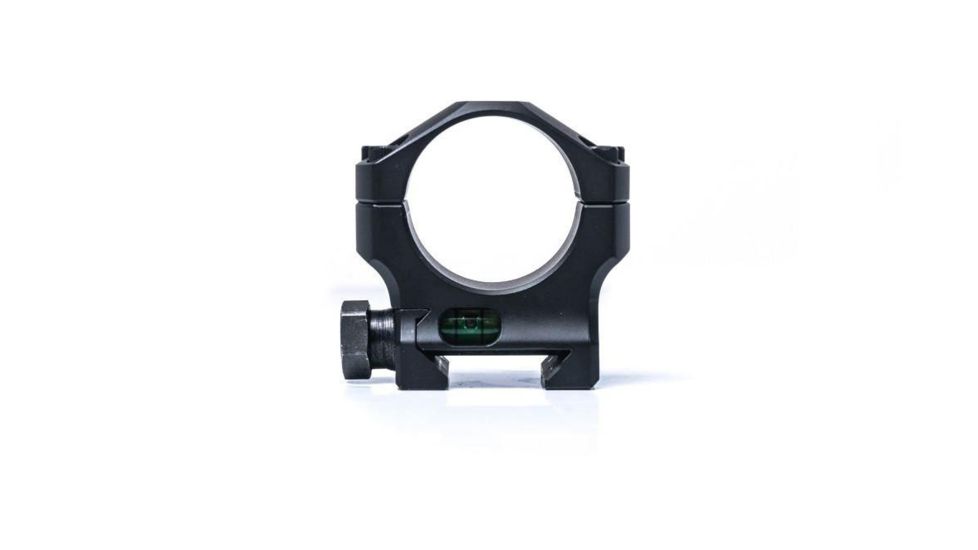

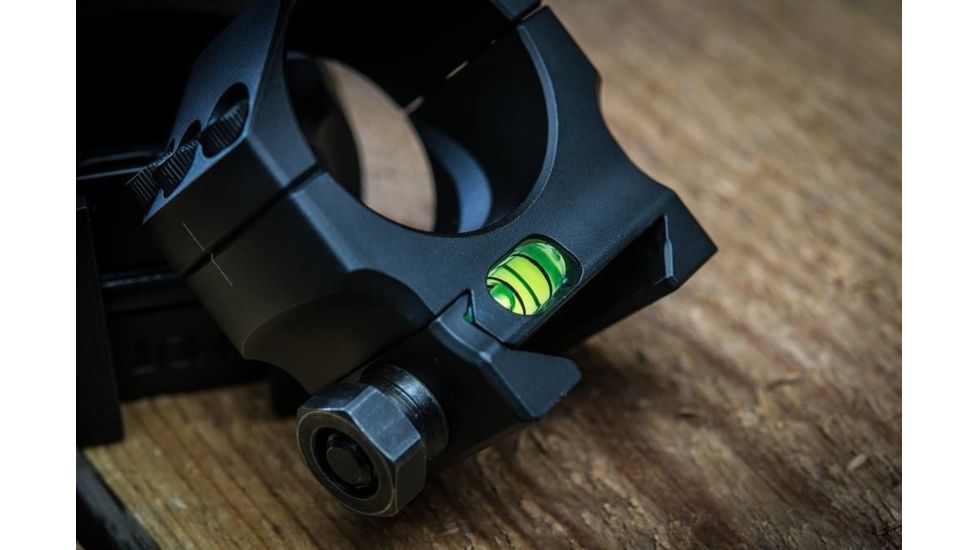

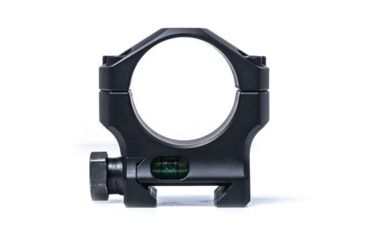

- Built-in bubble level on medium, high, and extra-high rings (No bubble level on low rings)
- Stepped base-to-cap interface allows the fasteners on one side to be tightened before making final scope alignment adjustments

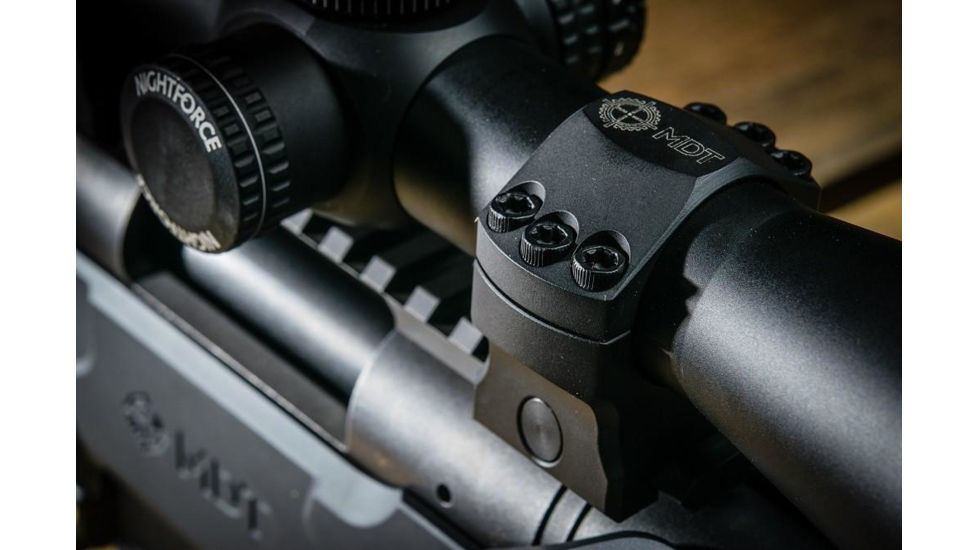

- Six oversized #8-32 Grade 8 fasteners used for clamping the scope
- Sleek curves blend well into most scopes

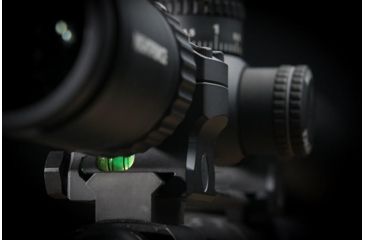

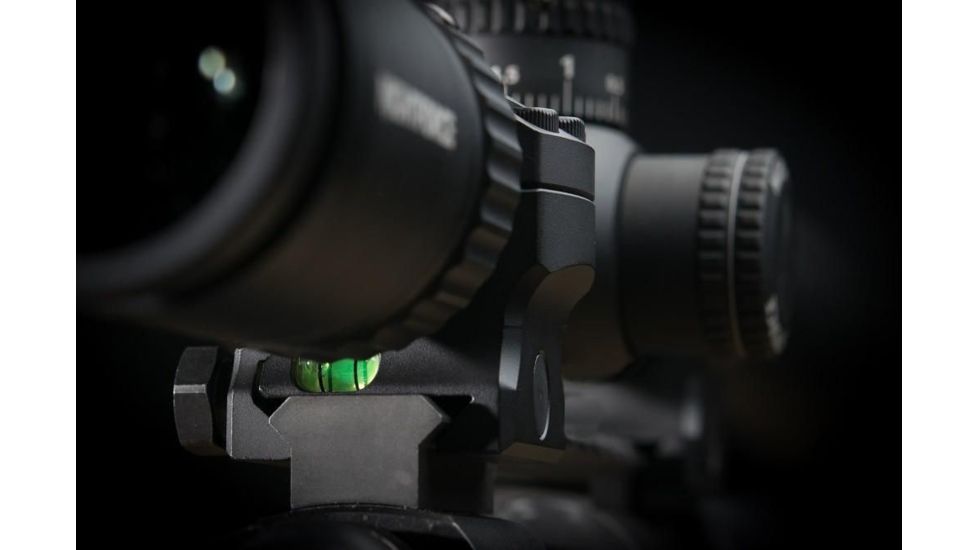

- MDT Precision Scope Rings are designed and manufactured to STANAG 4694 specification, also known as "NATO spec". This means the scope ring sits tight to the top of the scope base rail, with pressure being applied to the underside of the angled rail surfaces to maintain a solid interface (as shown below). This design also allows mounting on out-of-spec rail.
By contrast, US MIL-STD-1913 spec mounts attach only to the angles sides of the rail, leaving a small gap between the top of the rail and the underside of the mount, and significantly reducing the amount of contact area between the mount and ral.
Testing performed by NATO has shown that the STANAG attachment method increases the robustness of the interface, leading to increased alignment repeatability. MDT Elite Precision Scope rings can be mounted to scope base rails designed to both the STANAG and MIL-STD specifications.
Package Contents:
- MDT Elite Scope Rings
