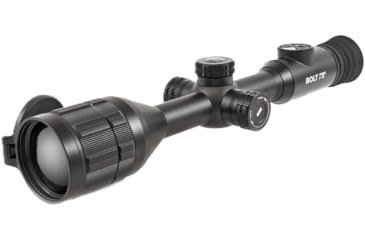

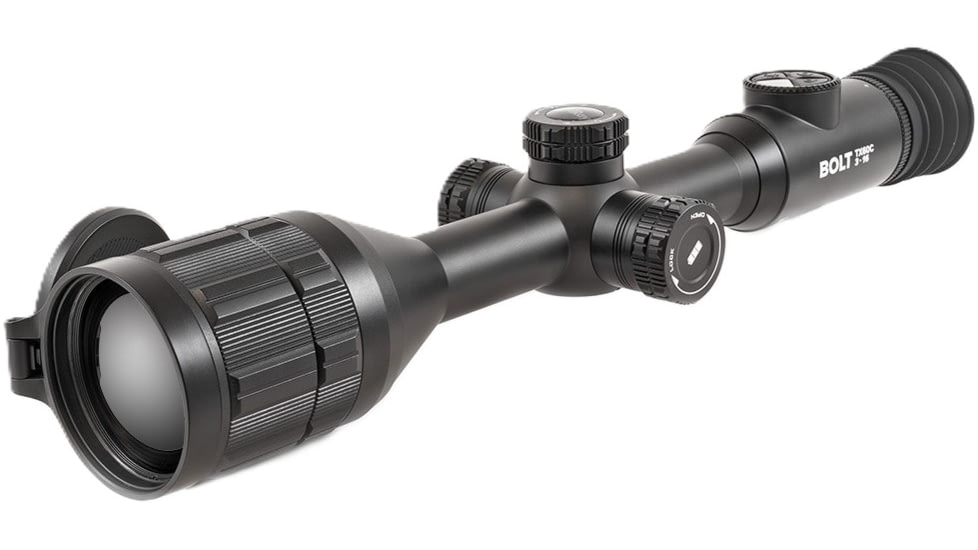

Product Info for InfiRay Outdoor BOLT TX60C 3-16x60mm Thermal Imagin Rifle Scope, 30mm Tube

The BOLT TX60C provides hunters with a high-resolution 1024×1024 InfiRay Micro II thermal sensor at a native 3× magnification and digital zoom up to 16×, ideal for predator hunting and longer-range shots. Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels. A fast f/1.0 germanium objective lens, a sensitivity rating of ≤18mK, and a round 2560×2560 AMOLED display provide exceptional detail and precision. The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings. Wirelessly paired with the ILR-1200-1 Laser Rangefinding module, the TX60C is capable of displaying real-time ranges on-screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.image

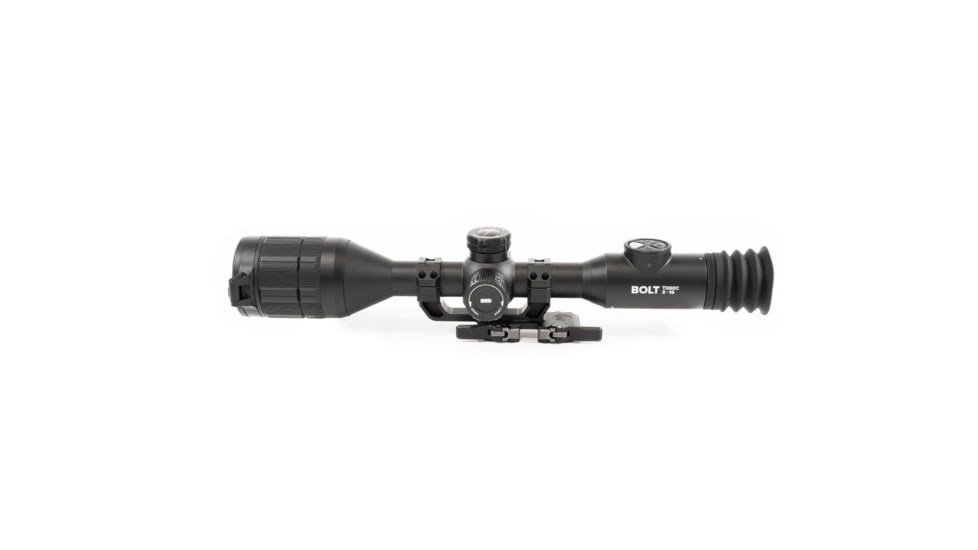

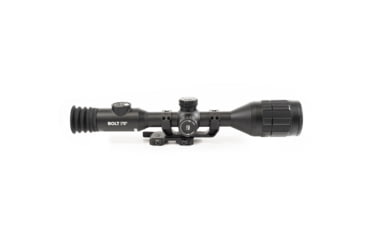

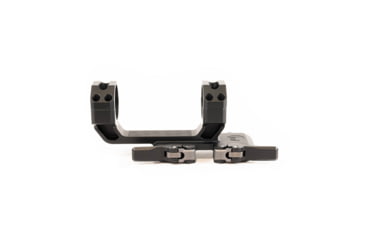

The TX60C comes with a 30 mm one-piece quick-detach scope mount with dual-locking levers (AC112) to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope, or share one thermal on multiple rifles.

As an evolution from previous BOLT series models, the TX60C can now directly accept common 18650 cell batteries (button-top version) without an extension/adapter.

Specifications for InfiRay Outdoor BOLT TX60C 3-16x60mm Thermal Imagin Rifle Scope, 30mm Tube:

Manufacturer: InfiRay Outdoor
Color: Black
Magnification: 16 x, 3 x, 3 - 16 x
Objective Lens Diameter: 60 mm
Tube Diameter: 30 mm
Sensor Resolution: 1024x1024 pixels
Display Resolution: 2560x2560 pixels
Refresh Rate: 50 Hz
Reticle: 7
Illumination Color: Red, White, Green, Black
Eye Relief: 50 mm
Field of View, Angle: 11.7 degrees
Diopter Adjustment Range: -5 - 3.5 dpt
Range of Detection: 2700 yds
Lens Material: Germanium
Attachment Type: Picatinny
Battery Type: 18650
Battery Life: 3.5 hours, 8+ hours
Operating Temperature: -4 - 122 Fahrenheit
Water Resistance Level: IP67
Length: 15.12 in
Width: 4.09 in
Height: 3.03 in
Weight: 35.27 oz
Fabric/Material: Aluminum
Included Accessories: Standard
Battery Quantity: 2
Display Type: AMOLED
Gun Rail: Picatinny
Thermal Sensitivity: 18 mK
Pixel Pitch: 12 micrometers
Memory: 128 GB
Housing/Frame Material: Aluminum
Focal Length: 60 mm

Features of InfiRay Outdoor BOLT TX60C 3-16x60mm Thermal Imagin Rifle Scope, 30mm Tube:

  • InfiRay Micro II 1024 Sensor
  • MATRIX III Image Processing

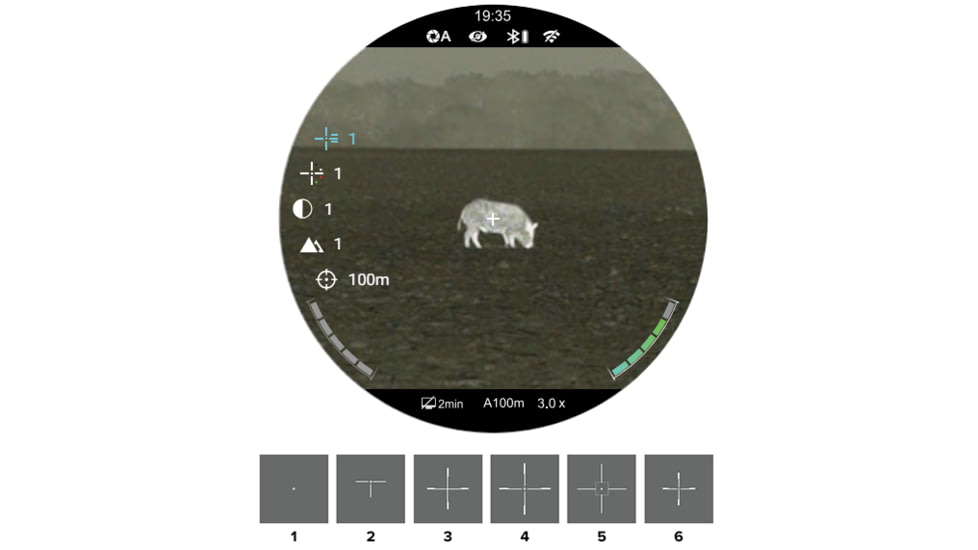

  • 7 Reticles (1 Dynamic, 5 Static, 1 DIY)
  • Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
  • Rangefinder Bluetooth ILR-1200-1 LRF (NOT INCLUDED)
  • Picture-in-Picture
  • Image Capture/Onboard Recording
  • Wi-Fi/Mobile App/User-Updatable Firmware
  • Connector Type: USB-C
  • Less than 10 Seconds Startup Time, Instant from Stand-by Mode
  • Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
  • Warranty: 5 Years

Package Contents:

  • InfiRay Outdoor BOLT TX60C 3-16x60mm Thermal Imagin Rifle Scope, 30mm Tube
  • Objective Lens Cap
  • Eyeguard
  • IRAY-AC112 30 mm One-Piece Scope Mount
  • (x2) 18650 Battery
  • Battery Charger
  • USB-C Cable for Data/Video
  • USB Power Adapter
  • Lens Cloth
  • Soft Case
  • User Manual
