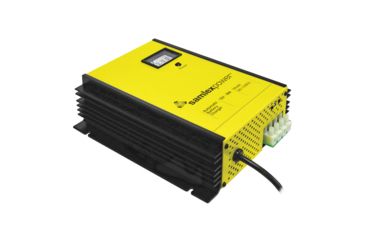

Samlex America 30A Battery Charger SEC-1230UL w/ Free S&H

This advanced fully automatic three-stage 30 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded/Absorbed Glass Mat (AGM)/Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to three separate battery banks.

Specifications for Samlex America 30A Battery Charger:

Features of Samlex America 30A Battery Charger

• High efficiency
• Commercial Grade
• Lightweight
• Quiet operation
• Industry Proven Design 1000s of units in operation
• 2 or 3 stage charging (user selectable)
• 120 or 230 VAC 50/60 Hz (user selectable)
• Voltage meter display Ammeter and LED power status
• For all types of Lead Acid batteries
• Charge with a battery load or stand alone
• Use as a power supply or DC UPS
• UPC: Universal Protection Circuit short circuit overload reverse battery polarity
• Charge 3 banks of batteries at once no isolator necessary
• Input: 120 VAC 60 Hz or 230 VAC 50 Hz
• Output: 12 VDC
• Amps: 30 Amps
• Weight: 7 (lbs)
• Weight: 3.17 (kg)
• Dimensions: 10.5 x 8.5 x 3 (in)
• Dimensions: 26.7 x 21.6 x 7.6 (cm)
• Safety: Listed to UL Standard UL-1564 EMI Compliant to FCC Part 15(B) Class B
• Warranty: 2 Year Limited
• Applications:Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems

Package Contents:

• Samlex America 30A Battery Charger
