Code: AG2-NVG-NVG51-14NV5123474111
MPN: 14NV5123474111
UPC: 810027779441

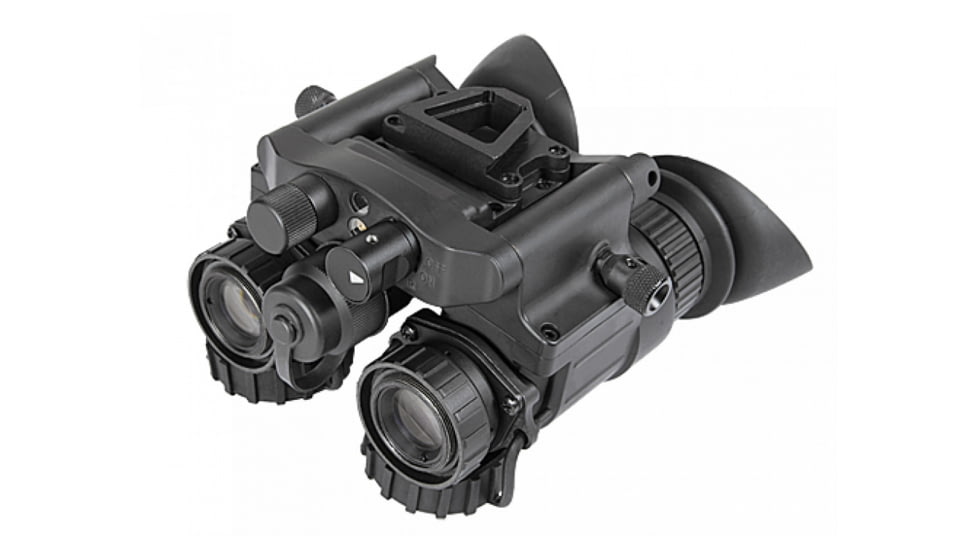

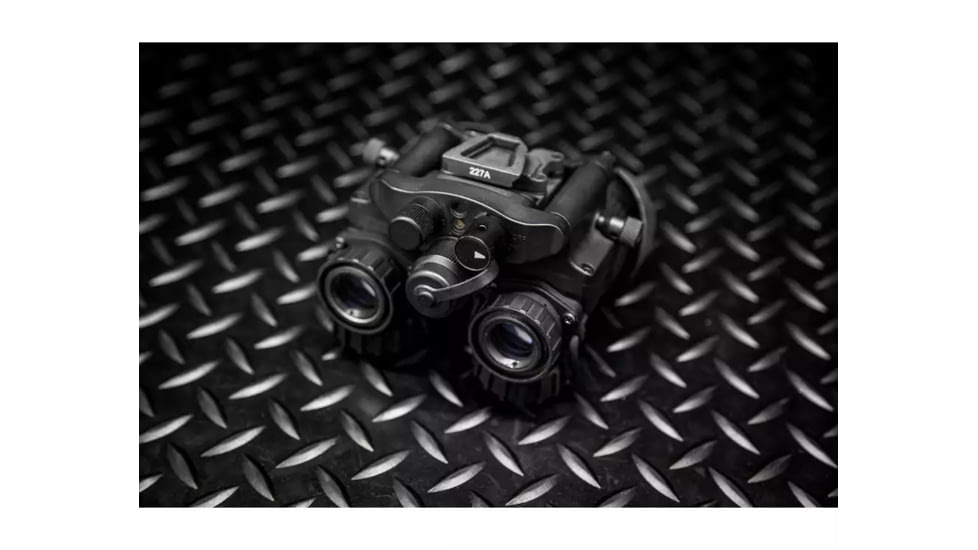

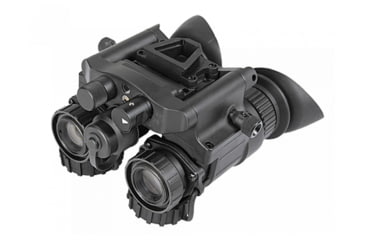

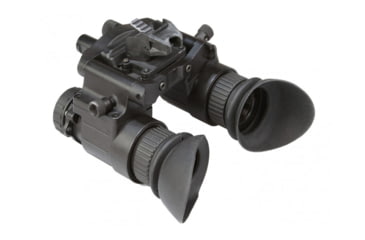

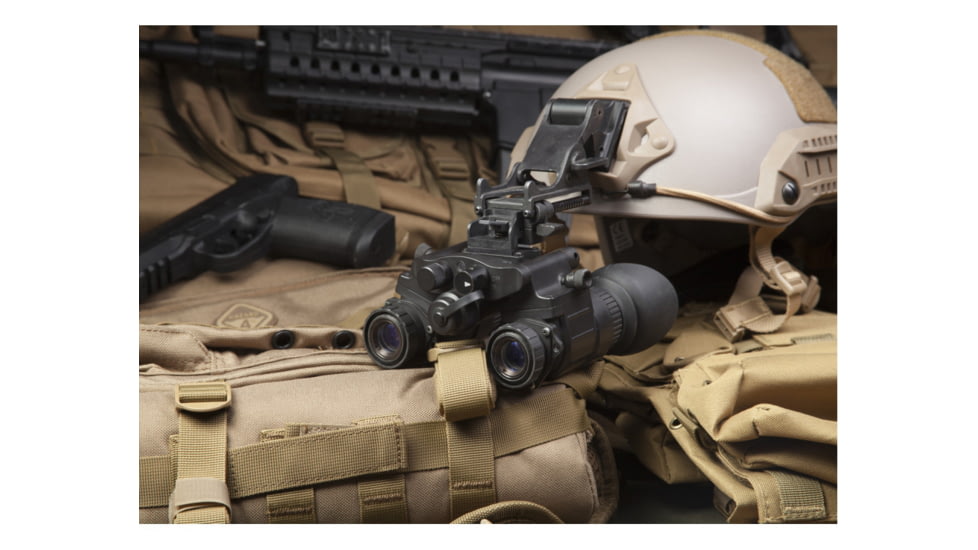

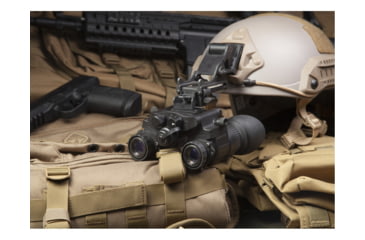

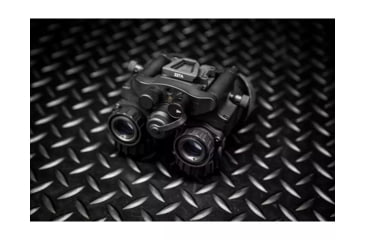

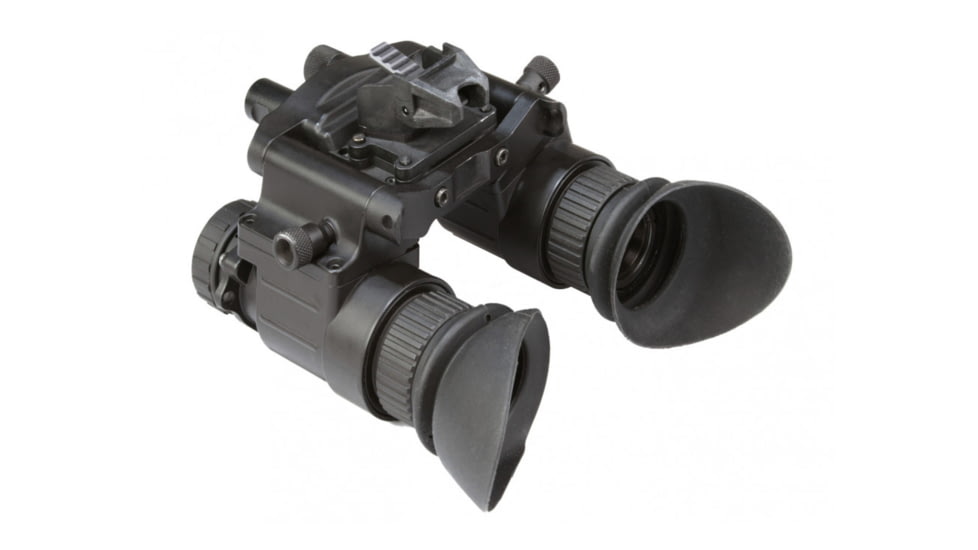

The AGM NVG-50 is a dual-channel night vision system. With a 51degree field of view (FOV), it provides a large visual field without needing to move the binoculars. The NVG-50 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

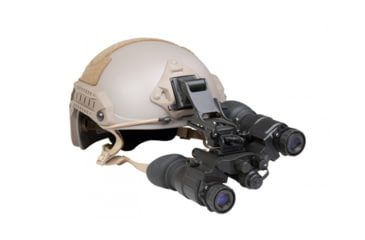

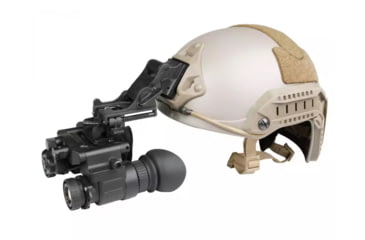

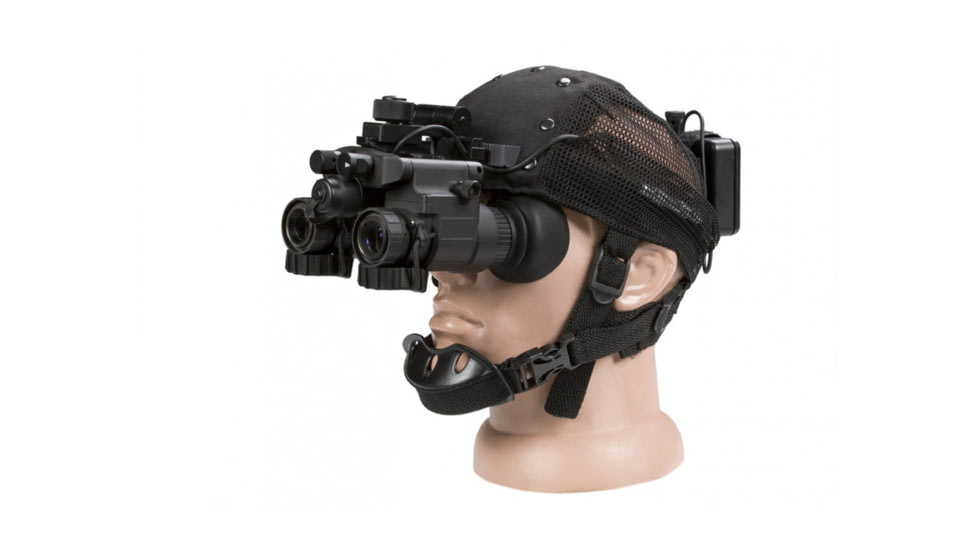

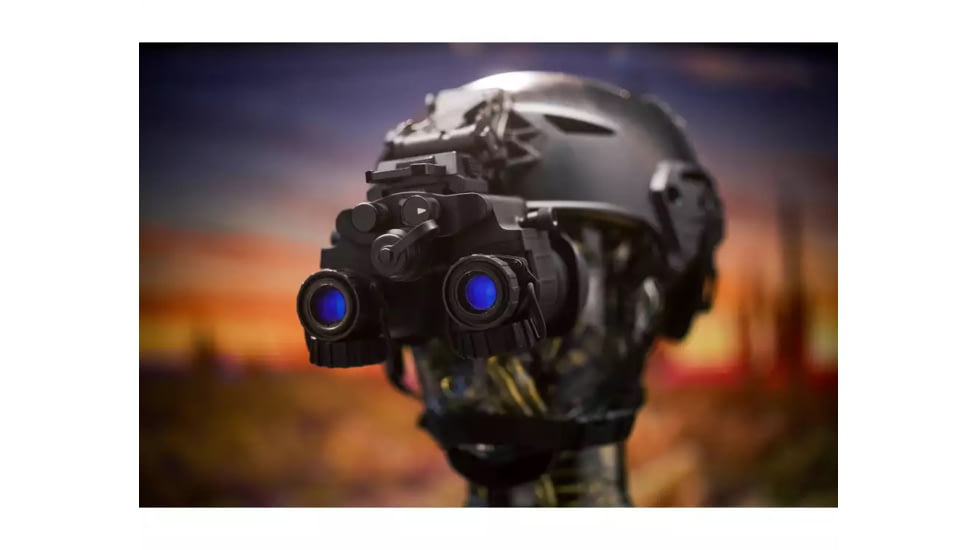

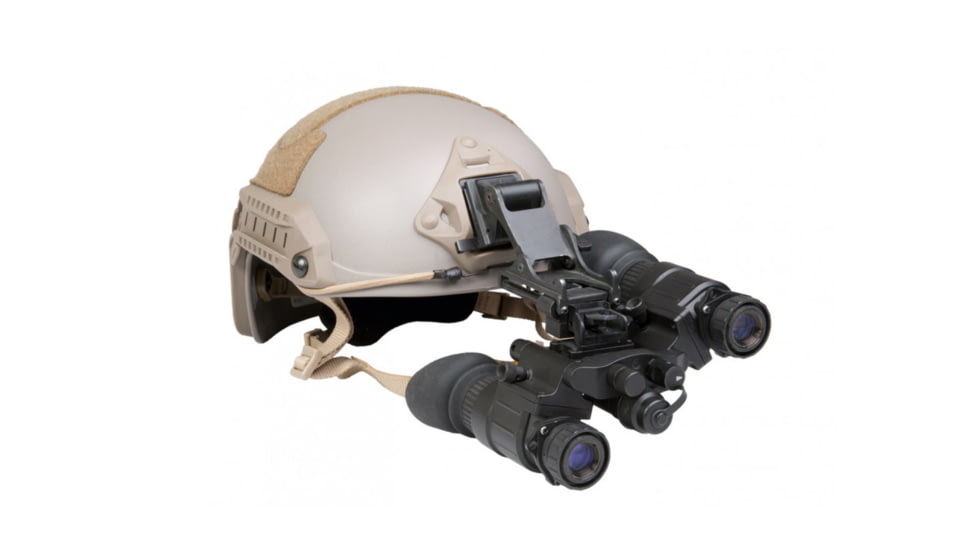

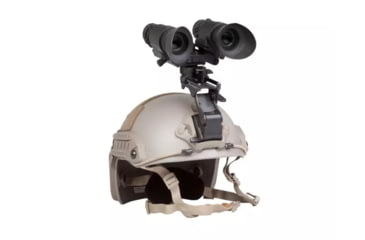

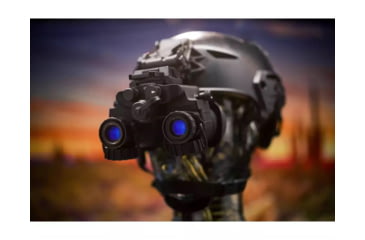

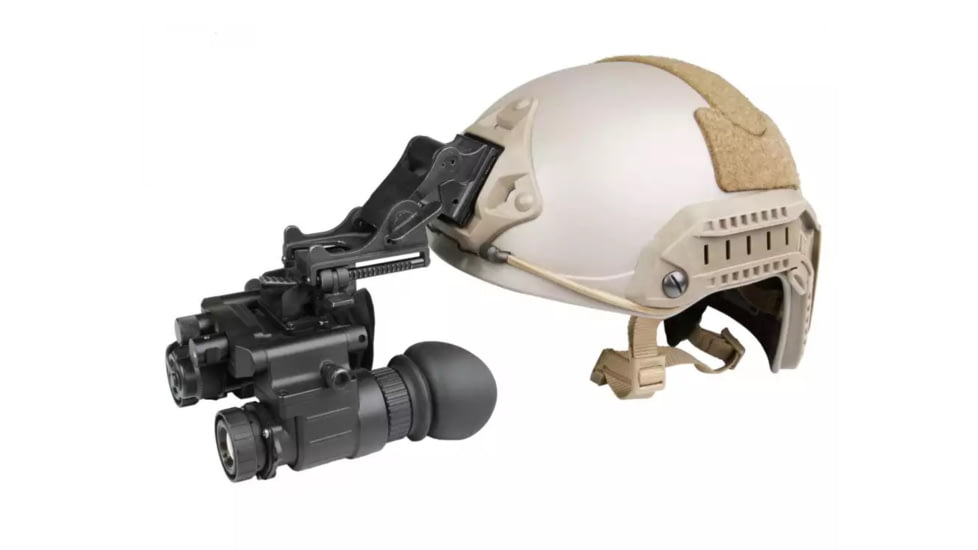

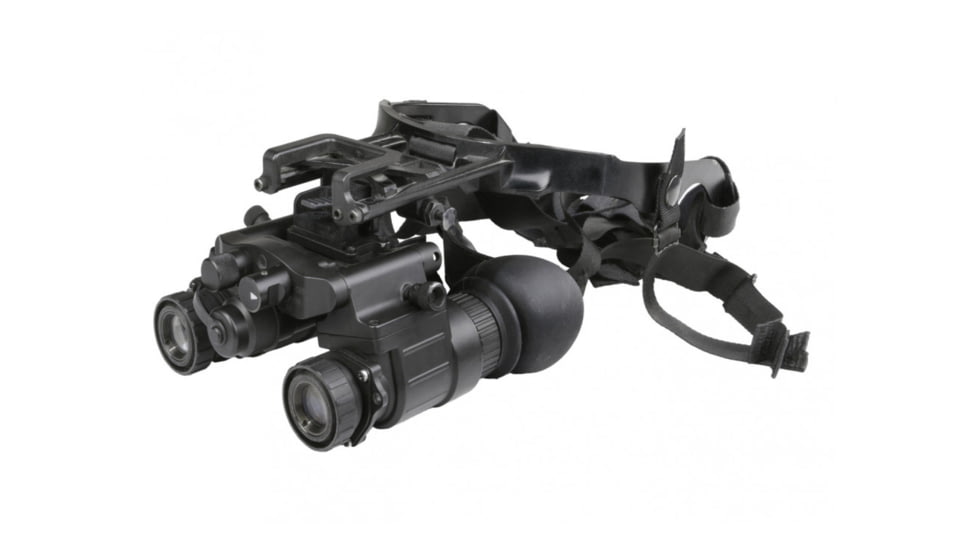

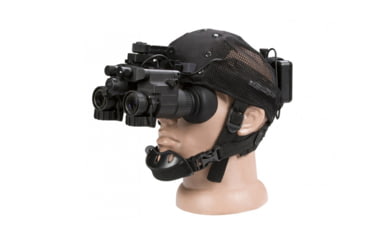

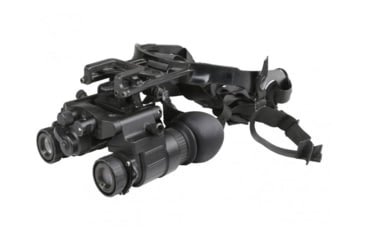

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

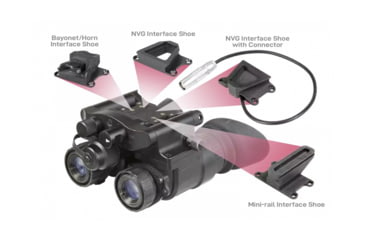

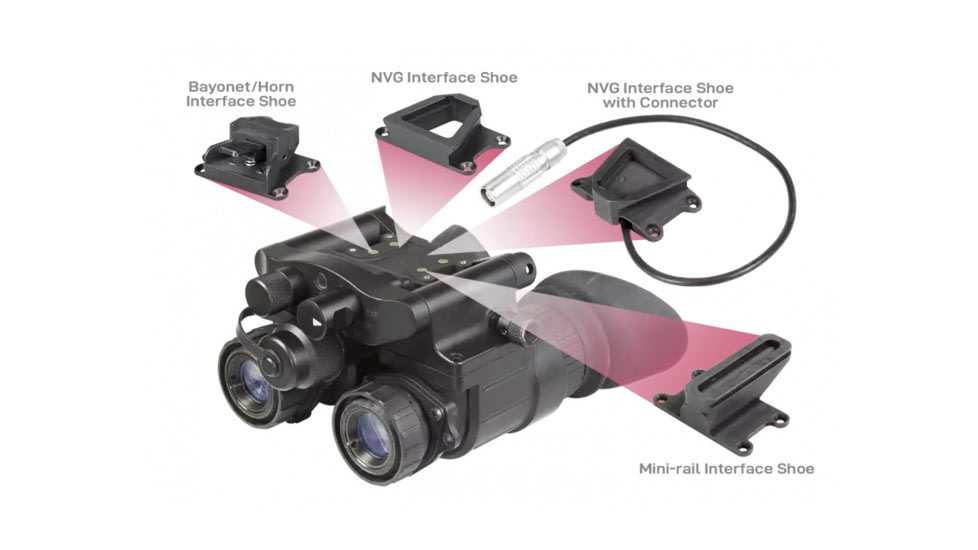

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

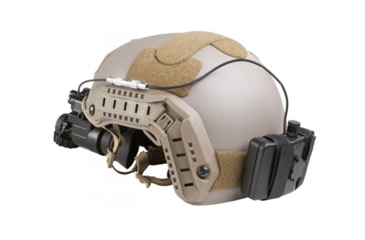

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount.
Manufacturer: | AGM Global Vision |
Night Vision Generation: | 3 |
Image Intensifier Tube: | Autogated |
Image Intensifier Color: | White Phosphor |
Weight: | 1.35 lb |
Magnification: | 1 - 3 x |
Objective Lens Diameter: | 19 mm |
Color: | Black |
Focus Range: | 0.25 m to Infinity |
Field of View, Linear: | 40 ft at 100 yds |
Field of View, Angle: | 51 degrees |
Battery Type: | AA, CR123A |
Weather Resistance: | Yes |
Water Resistance Level: | IP67 |
Battery Quantity: | 1 |
System/Lens Resolution: | 45 - 57 lp/mm |
Diopter Adjustment Range: | -6 - 2 dpt |
