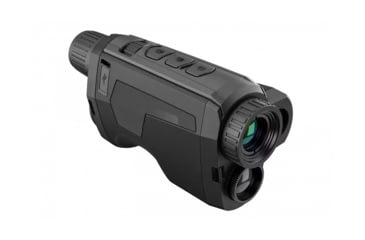

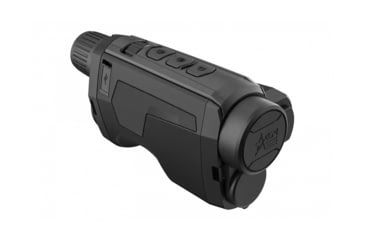

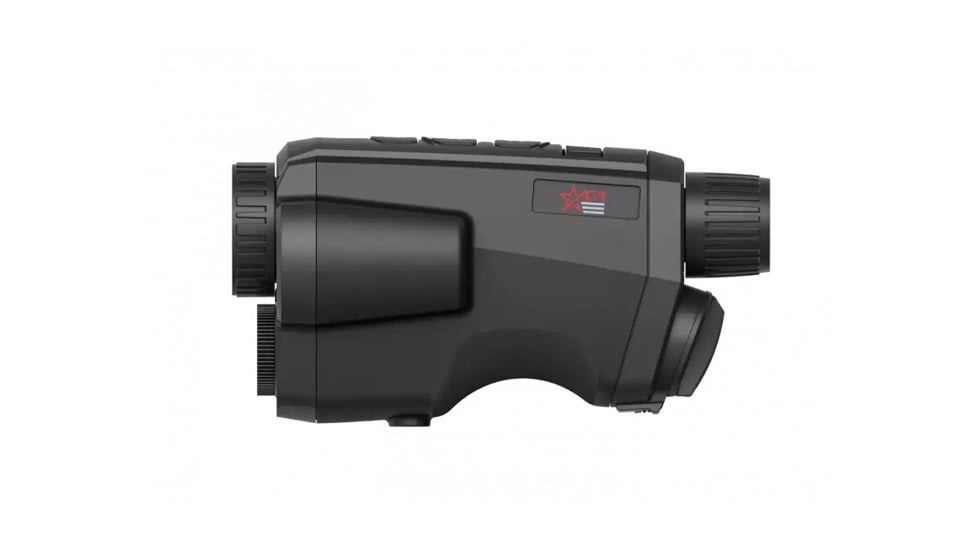

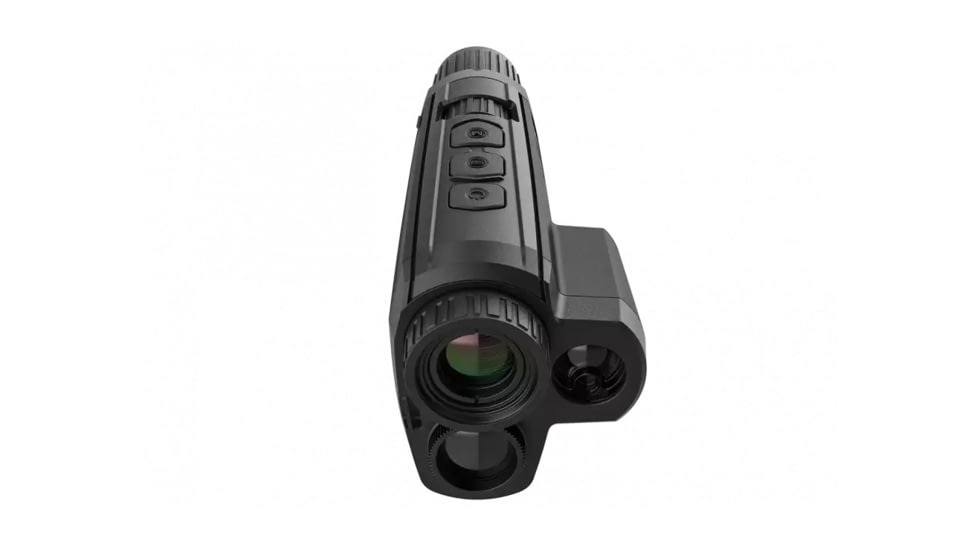

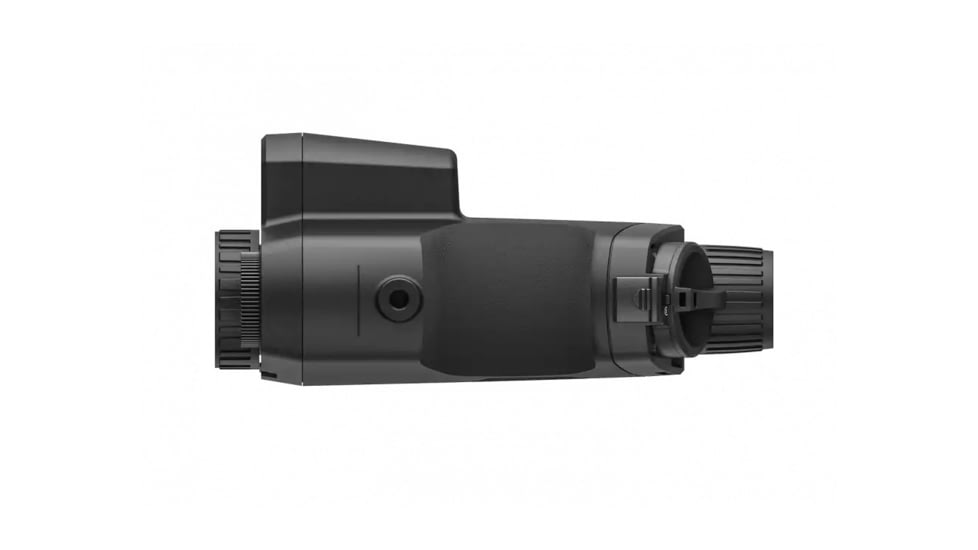

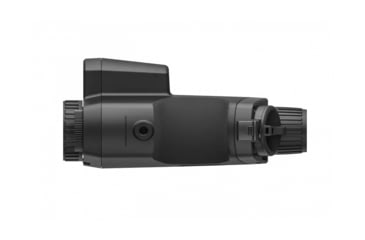

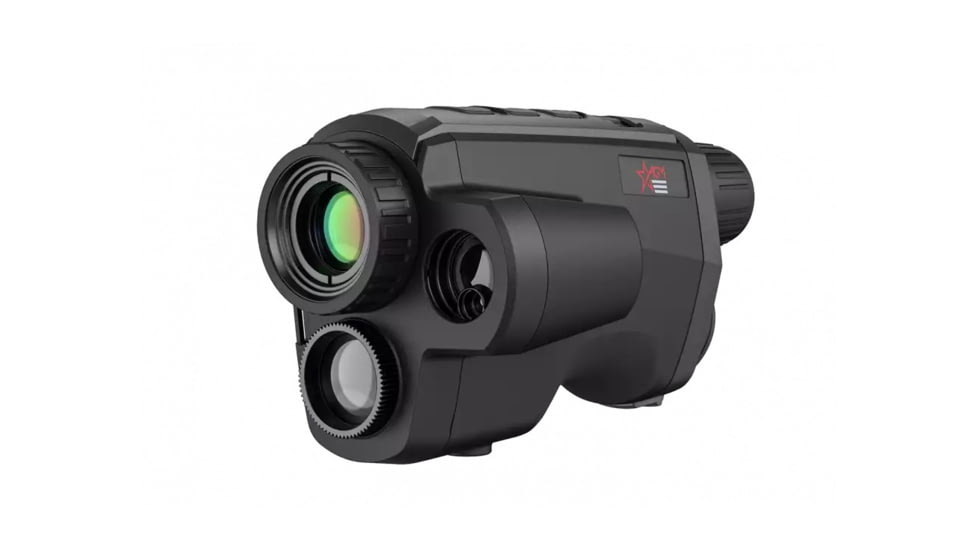

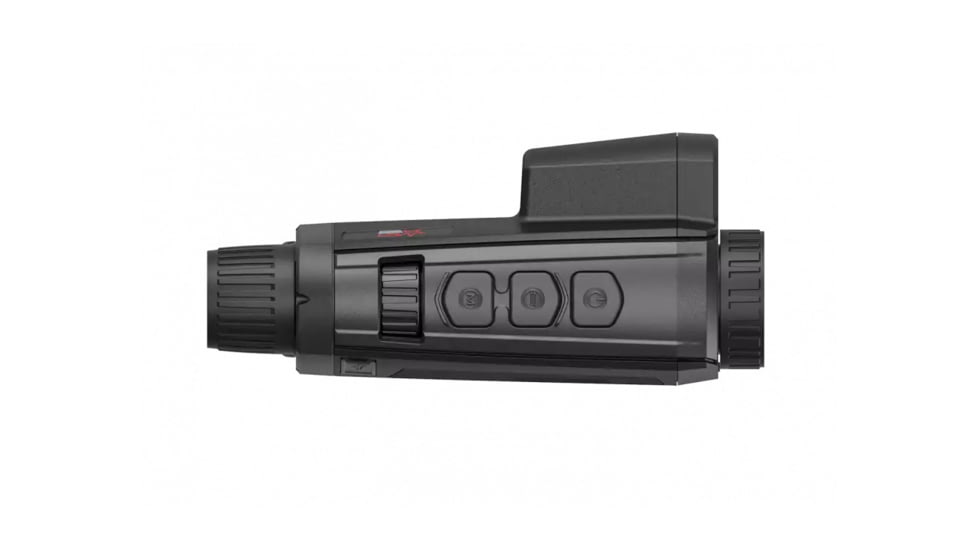

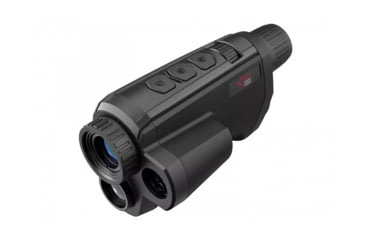

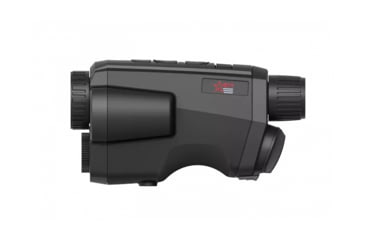

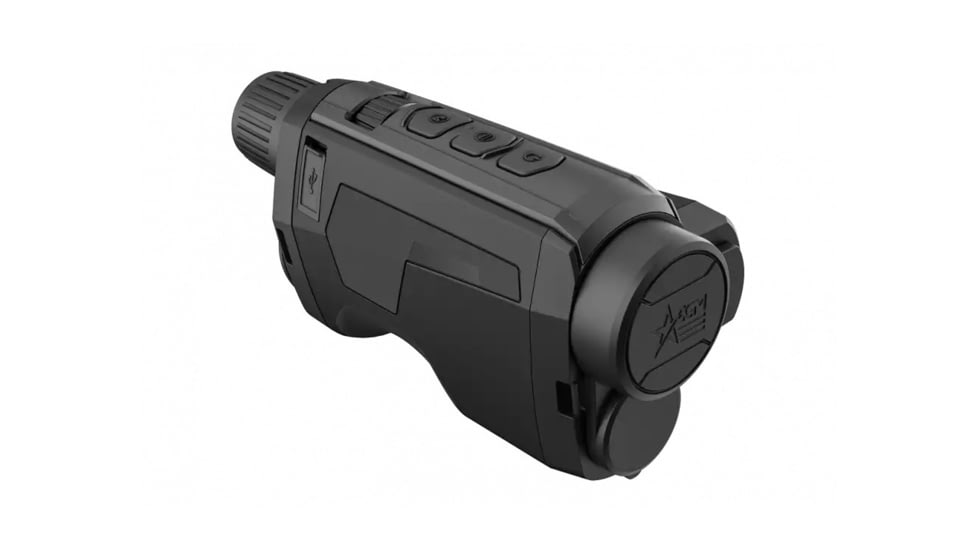

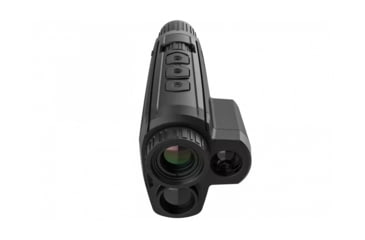

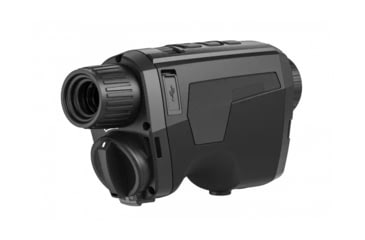

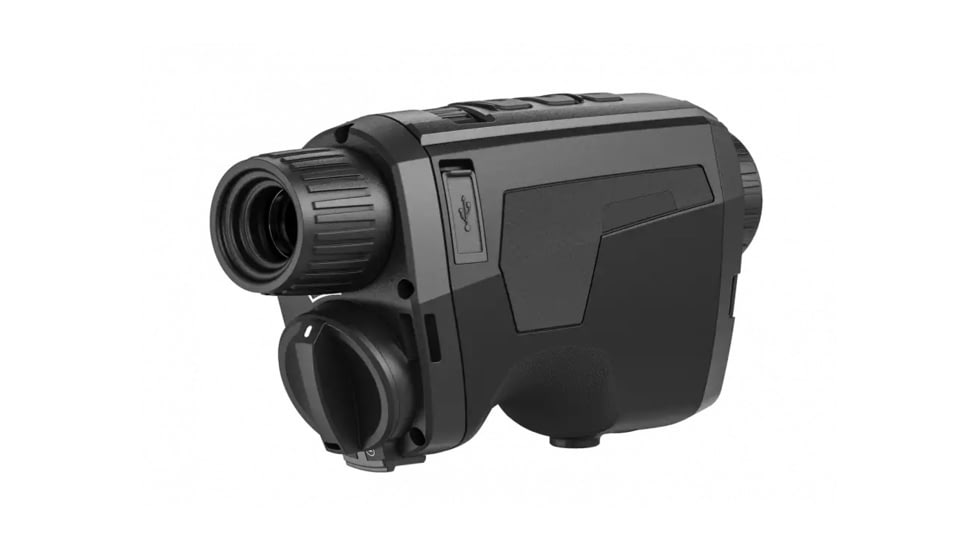

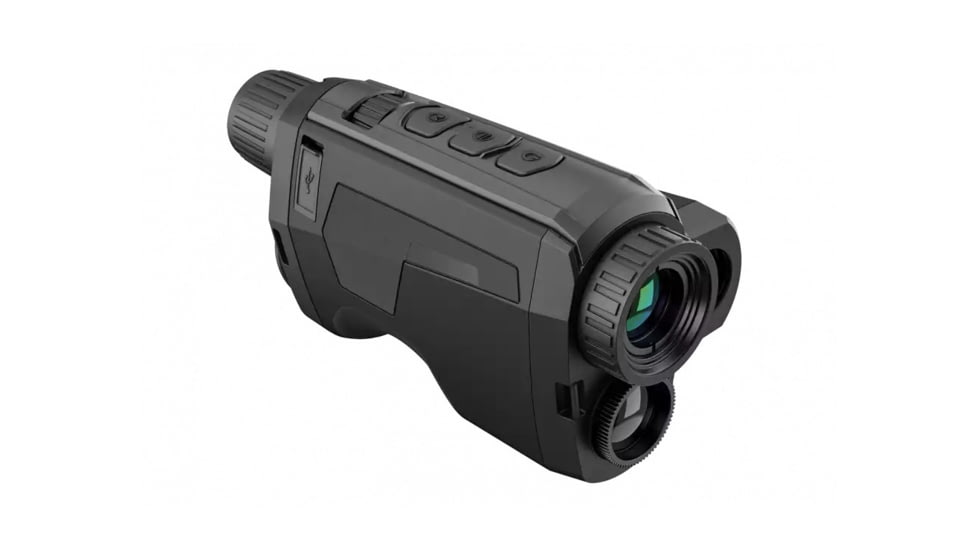

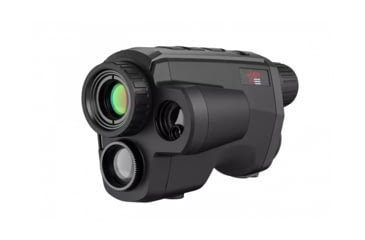

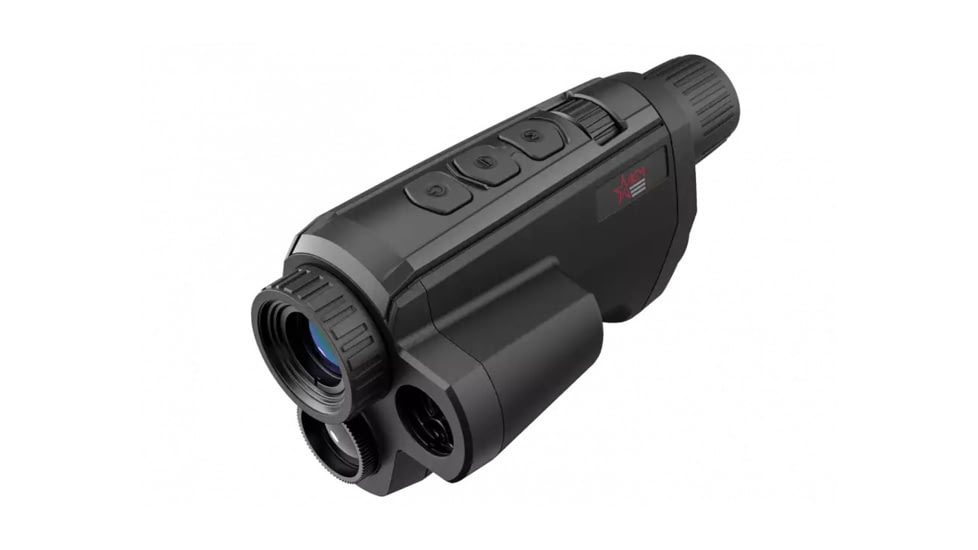

AGM Global Vision Fuzion LRF TM25-384 2.5-20x25mm Fusion Thermal Imaging/CMOS Monocular 3142451304FM21 w/ Free S&H
Tap Tap to Zoom
Code: AG2-THM-FUZT4-3142451304FM21
MPN: 3142451304FM21
UPC: 810027779540
Product Info for AGM Global Vision Fuzion LRF TM25-384 2.5-20x25mm Fusion Thermal Imaging/CMOS Monocular
The AGM Fuzion LRF TM25-384 Thermal & Digital Day/Night Vision monocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron 384x288 thermal detector. This sensor from AGM will ensure human-sized heat signatures detectable at up to 0.8 miles (1250m). Unlike other thermal monoculars on the market, the Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility.
The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 25mm Germanium lens with a 1.0 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 2.5X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder, up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and of course AGMs 5 Year Transferable Warranty!
*Refurbished Units Only Include 1 Year Warranty*
Specifications for AGM Global Vision Fuzion LRF TM25-384 2.5-20x25mm Fusion Thermal Imaging/CMOS Monocular:
| Manufacturer: | AGM Global Vision |
| Magnification: | 2.5 - 20 x |
| Color: | Black |
| Resolution: | 384x288 pixels |
| Field of View, Angle: | 7.9 - 10.5 degrees |
| Objective Lens Diameter: | 25 mm |
| Width: | 2 in |
| Length: | 6.3 in |
| Height: | 3.4 in |
| Battery Life: | 5 hours |
| Eye Relief: | 45 mm |
| Battery Type: | 18650 |
| Weight: | 1.12 lb |
| Water Resistance Level: | IP67 |
| Refresh Rate: | 50 Hz |
| Condition: | New |
| Operating Temperature: | -4 - 131 Fahrenheit |
| Battery Quantity: | 1 |
| Reticle: | No Reticle |
| Display Resolution: | 1024x768 pixels |
| Diopter Adjustment Range: | -6 - 4 dpt |
Features of AGM Global Vision Fuzion LRF TM25-384 2.5-20x25mm Fusion Thermal Imaging/CMOS Monocular
- Bi-spectrum image fusion and object highlight
- Detail enhancement and target recognition
- Selection of thermal view channel, visible light channel, or both them combined
- 12 ?m, 35 mK NETD high sensitivity thermal detector
- Fast 50Hz imaging
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Ultra-low illumination optical channel
- 19201080 Optical resolution
- Eye-safe laser rangefinder
- 1024768 resolution, 0.39-inch OLED display
- Video recording and snapshot, built-in EMMC (16 GB)
- Wi-Fi hotspot
- Standby mode
- Up to 5 hours continuous running
- Waterproof
Package Contents:
- AGM Global Vision Fuzion LRF TM25-384 2.5-20x25mm Fusion Thermal Imaging/CMOS Monocular
