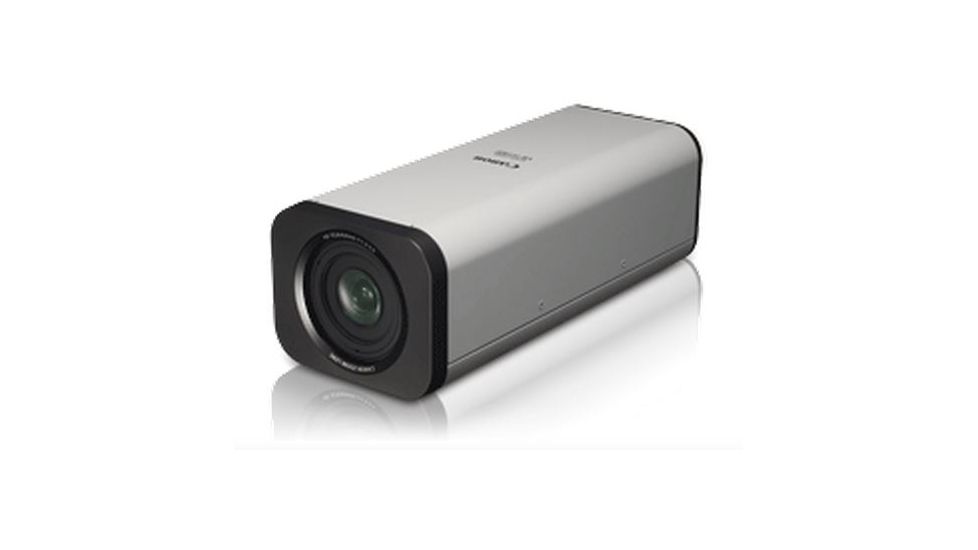

Canon VB-H730F Fixed Box Network Security Camera with 2.1 Megapixel Resolution 1920 x 1080 9905B001
Tap Tap to Zoom
Product Discontinued by Manufacturer
Canon VB-H730F Fixed Box Network Security Camera with 2.1 Megapixel Resolution 1920 x 1080 has been discontinued by Canon and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Security Products, CCTV Cameras yourself to try and find the perfect replacement for you!
Product Info for Canon VB-H730F Fixed Box Network Security Camera with 2.1 Megapixel Resolution 1920 x 1080
With exceptional lenses and video quality, the Canon Fixed Dome Network Security Camera with 2.1 Megapixel Resolution 1920 x 1080 is the ideal way to keep track of capturing, viewing, storing, and analyzing your video surveillance. Featuring exceptional low light performance, this Security Camera from Canon is the best way to survey your work or home even at night, improving the quality of the video and images thanks to the DIGIC DV III Image Processor. The asherical lenses and multilayer coatings record crystal clear picture, and the 112.6 degree wide angle lens and 3x optical zoom lens can be adjusted with the built-in Remote Adjustment Function, so that you don't have to move to get the perfect view of your surveillance area with the Canon Fixed Dome Network CMOS Security Camera with 2.1 Megapixel Resolution 1920 x 1080. Get seamless integration with your ONVIF 2.4 / Profile S when you use the Canon Fixed Dome Network Surveillance Security Camera with 2.1 Megapixel Resolution 1920 x 1080.
Specifications for Canon Fixed Dome Network 3x Security Camera with 2.1 Megapixel Resolution 1920 x 1080:
| IMAGE SENSOR: | 1/3 type CMOS (primary color filter) |
| NUMBER OF EFFECTIVE PIXELS: | Approx. 2.1 million pixels |
| ANALOG VIDEO RESOLUTION: | N/A |
| ANALOG VIDEO STANDARD: | N/A |
| ANALOG S/N RATIO: | N/A |
| SCANNING METHOD: | Progressive |
| LENS: | 3x optical (4x digital) zoom lens (electric drive) |
| FOCAL LENGTH: | 2.8 (W) - 8.4 (T) |
| F-NUMBER: | F1.2 (W) - F2.0 (T) |
| HORIZONTAL VIEWING ANGLE: | 112.6° (W) - 36.7° (T) |
| VERTICAL VIEWING ANGLE: | 60.8° (W) - 20.6° (T) |
| DAY/NIGHT SWITCH: | Auto/Manual |
| I/R CUT FILTER: | Removable |
| MIN. SUBJECT ILLUMINATION - DAY (COLOR): | 0.3 lux (F1.2, shutter speed 1/30 sec., SSC off, 50IRE); 0.02 lux (F1.2, shutter speed 1/2 sec., SSC off, 50IRE); 0.008 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE) |
| MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME): | 0.015 lux (F1.2, shutter speed 1/30 sec., SSC off, 50IRE); 0.001 lux (F1.2, shutter speed 1/2 sec., SSC off, 50IRE); 0.0005 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE) |
| FOCUS: | One-shot AF/Manual/Fixed at infinity |
| SHOOTING DISTANCE: | Day Mode, 0.3m (12 in.) - infinity; Night Mode, 1.0m (3.3ft) - infinity |
| SHUTTER SPEED: | 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec. |
| EXPOSURE: | Auto / Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Aperture, Gain) |
| WHITE BALANCE: | Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/ Manual (One-shot WB / R Gain/ B Gain) |
| METERING MODE: | Center-Weighted/Average/Spot |
| EXPOSURE COMPENSATION: | 9 levels |
| SMART SHADE CONTROL: | Auto / Manual / Disable; Auto, 3 Levels; Manual, 7 Levels |
| AGC LIMIT: | 5 levels |
| IMAGE STABILIZER: | N/A |
| PAN ANGLE RANGE: | N/A |
| TILT ANGLE RANGE: | N/A |
| ROTATION ANGLE RANGE: | N/A |
| MOVING SPEED: | N/A |
| VIDEO COMPRESSION METHOD: | JPEG, H.264 |
| VIDEO SIZE: | JPEG, H.264; 1280x720, 640x360, 320x180, 1280x960, 640x480, 320x240 |
| VIDEO QUALITY: | JPEG, H.264; 5 levels |
| FRAME RATE: | JPEG, 0.1 - 30 fps; H.264, 1/2/3/5/6/10/15/30 fps |
| MAXIMUM FRAME RATE: | 1920 x 1080, 30 fps |
| I-FRAME INTERVAL: | 0.5/1/1.5/2/3/4/5 sec. |
| SIMULTANEOUS CLIENT ACCESS: | Max. 30 Clients + 1 Admin Client - H.264, Max. 10 Clients |
| CAMERA CONTROL: | Administrator, Authorized user, Guest user, Max. 50 user names and passwords registered for authorized users. |
| ACCESS CONTROL: | User authority (user name and password), Host Access Restrictions(IPv4,IPv6) |
| ENCRYPTED COMMUNICATIONS: | SSL/TLS, IPsec (Auto Key Exchange/Manual) |
| IEEE 802.1X: | EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP |
| ONVIF Version: | ONVIF Ver. 2.4 / Profile S |
| IPv4 PROTOCOL: | TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS(Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP(Canon proprietary), ONVIF |
| IPv6 PROTOCOL: | TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon Proprietary), ONVIF |
| AUTO IP: | Available |
| AUDIO COMPRESSION METHOD: | G.711 ì-law (64 kbps) |
| AUDIO COMMUNICATION METHOD: | Full-duplex (two-way) - Echo cancellation function compliant |
| AUDIO FILE PLAYBACK: | Available (audio files can be played back when an event is triggered by the intelligent function or external device input.) |
| PRIVACY MASK: | Number of registration - Max. 8 places, Number of mask colors - 1 (select from 9 colors) |
| VIEW RESTRICTION: | N/A |
| PRESETS: | Max. 20 positions (Digital) |
| INTELLIGENT FUNCTION - VIDEO: | Moving object detection, abandoned object detection, removed object detection, camera tampering detection, and passing detection |
| INTELLIGENT FUNCTION - DETECTION SETTINGS: | Max. 15 |
| INTELLIGENT FUNCTION - VOLUME: | Volume Detection |
| EVENT TRIGGER TYPE: | External Device Input, Timer, Intelligent Function (Video), Intelligent Function (Volume) |
| IMAGE UPLOAD: | FTP/HTTP/SMTP (e-mail) |
| Temporary storage memory in camera: | Max. approx. 5 MB |
| Frame Rate: | Max. 10 fps (JPEG), Max. 30 fps (H.264) |
| EVENT NOTIFICATION: | HTTP/SMTP (e-mail) |
| ON-SCREEN DISPLAY: | Available |
| IMAGE CROPPING FUNCTION: | Digital PTZ; Cropping Sizes 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72/640 x 480/512 x 384/384 x 288/256 x 192/128 x 96 |
| DAYLIGHT SAVING TIME: | Available |
| NETWORK TERMINAL: | LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) |
| AUDIO INPUT TERMINAL: | O3.5mm (O0.14 in.) mini-jack connector (monaural); Switch LINE IN/MIC IN in the setting page; LINE IN x 1 (connect to an amplifier microphone) or MIC IN x 1 (connect to a microphone w/o amplifier) |
| AUDIO OUTPUT TERMINAL: | O3.5mm (O0.14 in.) mini-jack connector (monaural)- Connect via an audio interface cable (included); LINE OUT x 1 (connect to an amplifier speaker) |
| EXTERNAL DEVICE I/O TERMINAL: | Input x 2, Output x 2 |
| ANALOG VIDEO OUT: | N/A |
| MEMORY CARD: | MicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory Card Compatible. |
| Frame Rate: | Max. 1 fps (JPEG), Max. 30 fps (H.264) |
| TEMPERATURE: | -10°C - +50°C (+14°F - +122°F) |
| HUMIDITY: | 5% - 85% (without condensation) |
| PoE: | PoE power supply via LAN connector (IEEE802.3af compliant) |
| AC ADAPTER: | PA-V17 or PA-V18(100 - 240 V AC) (sold separately) |
| EXTERNAL POWER SOURCE: | 24 V AC/12 V DC |
| WITH PoE: | Max. approx. 6.9 W |
| WITH AC ADAPTER: | PA-V17, Max. approx. 8.5W (100 VAC); PA-V17, Max. approx. 8.7 (240 VAC); PA-V18, Max. approx. 7.5W (100 VAC); PA-V18, Max. approx. 7.8W (240 VAC) |
| WITH 12VDC: | Max. approx. 7.0 W |
| WITH 24VAC: | Max. approx. 6.5 W |
| DIMENSIONS: | 65 x 80 x 192 mm (2.56 x 3.15 x 7.56 in.) |
| MOUNTING POSITION: | Horizontal / Vertical |
| WEIGHT: | Approx. 670g (1.48 lb.) |
| OUTDOOR READY: | No |
| IP RATING: | N/A |
| VANDAL RESISTANT: | No |
| IMPACT RESISTANCE: | N/A |
Features of Canon Fixed Dome Network Wide Angle Security Camera with 2.1 Megapixel Resolution 1920 x 1080:
- Low profile design
- Genuine Canon 112.6° Wide Angle Lens with 3x optical lens zoom, 2.1 Megapixel Resolution (1920 x 1080) and Canon's advanced DIGIC DV III Image Processor and DIGIC NET II Processor for crystal clear images
- RM-Lite Network Video Monitoring & Recording Software
- ONVIF 2.4 / Profile S conformant
- Exceptional low light performance
- Remote Adjustment Function
- Choice of simultaneous streaming options for video with both M-JPEG and H.264 Codecs in multiple resolutions (1080p, 720p, and 4:3 category video sizes) and codecs (M-JPEG and H.264)
- Aspherical lenses and multilayer coatings
Package Contents:
- Canon Fixed Dome Network Remote Adjustment Security Camera with 2.1 Megapixel Resolution 1920 x 1080
- VB-H730F Network Camera
- Warranty Card
- Setup CD-ROM
- Installation Guide
- Power Connector
