Code: DZ-SCM-FRSSCMS-381PT-EDEMO-RE-B
MPN: 381PT-EDEMO
Code: DZ-SCM-FRSSCMS-381PT
MPN: 381PT
UPC: 879956001207

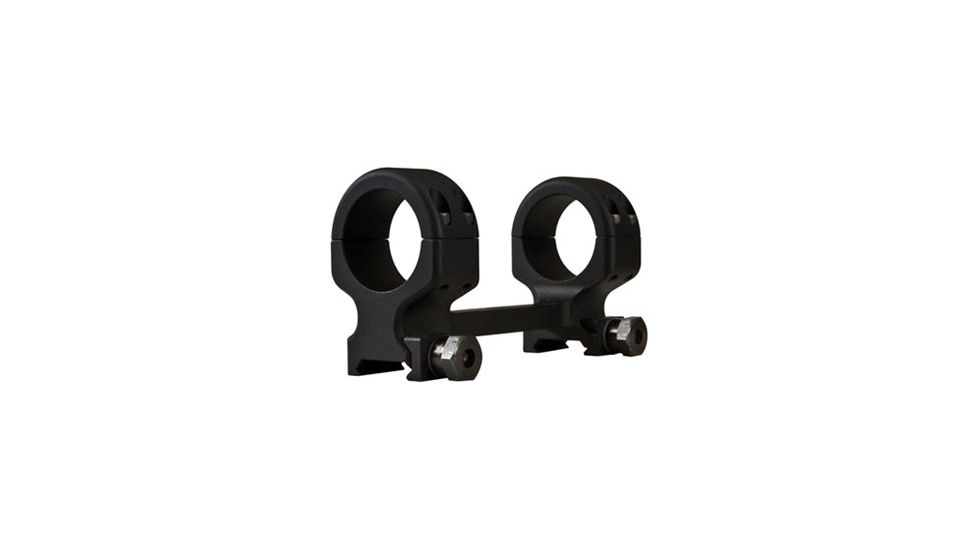

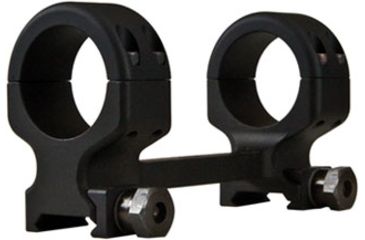

Freedom Reaper:
We offer 1 mounts, 30MM scope mounts, and 34MM scope mounts.
We have standard 1 piece mounts, Forward 1 piece mounts, Forward 1 piece mounts with 45 degree side rail, and 2 piece mounts. We have mounts with 2 screws per ring, 4 screws per ring, and 6 screws per ring.
We have carry handle mounts for 1 and 30MM scopes that fit into a carry handle. These mounts have a peep hole thru them so you can see your iron sights.
For the 2 screw per ring mounts the ring is .63 wide. For the 4 screw per ring mounts the ring is .80 wide. For the 6 screw per rings the ring is 1.38 wide. ( 1.38wide 6 screw ring is for the Beast Reaper mounts only)
34MM rings are .90 long and have 4 screws per ring.
MOA mounts are tapered down on front for long range shooting. Height will be about .03 lower on front ring than a standard straight mount.
All ring screws are 6-40 X 5/8 long. They use a 7/64 Allen wrench.
Straight heights of Picatinny rail mounts from top of rail to centerline of scope tube medium 1.00, high 1.19, X high 1.38. Normal height is X High on the Freedom Reaper mounts.
Manufacturer: | DNZ Products |
Fabric/Material: | 6061-T6 Aluminum |
Color: | Black |
Tube Diameter: | 30 mm |
Length: | 3.46 in |
Ring Height: | Extra High |
Additional Features: | Picatinny Rail |
Finish: | Matte |
