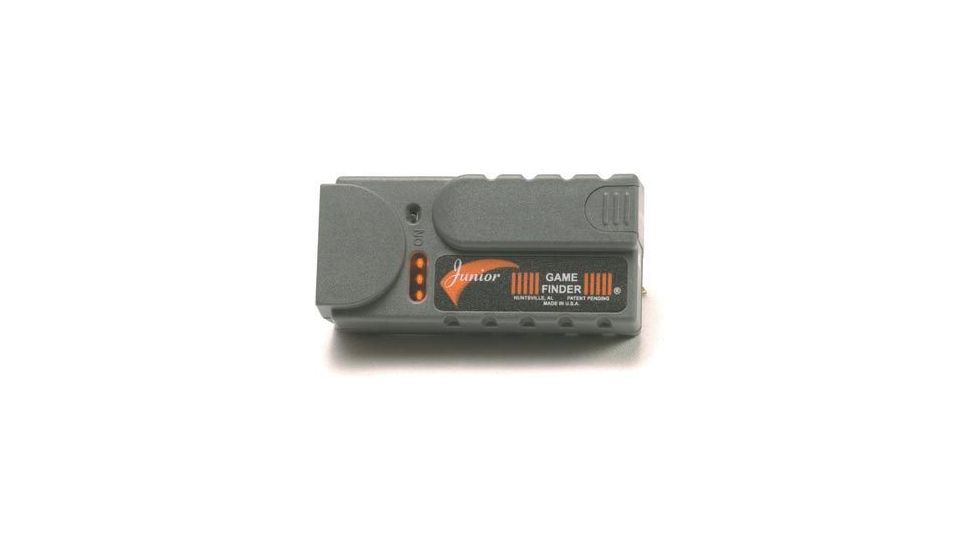

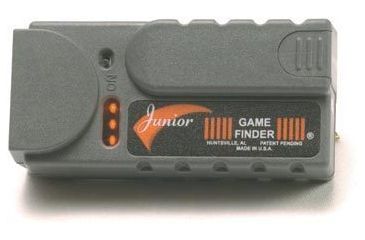

Game Finder Junior Enhanced CF-JR-E Heatseeker

Game Finder Junior Enhanced GF-JR E Heatseeker 00051 is simple to use and excellent for big game recovery. Flip the switch to on and give the unit a few seconds to warm up. Warm up takes only about 10 seconds but performance improves after about one minute.

Hold with the three light display up and scan from side-to-side across the area being searched. It should take about three (3) seconds to scan from one side to the other and back. Maintain a steady back-and-forth scan like the pendulum on a clock. GameFinder GF-JR E Junior Enhanced Heat Seeker "finds" changes in temperature. Game Finder - Junior Game Seeker takes a heat source of about five (5) degrees to cause one of Heat Seeker's three indicator lights to illuminate, about a ten (10) degree source for two lights and fifteen (15) degree source for all three lights. If more than one source is indicated, go check the one causing the most lights. If it is what is sought, the search is over. If not, continue searching and progressing in the general direction headed.

GameFinder Junior Enhanced GF-JR E Game Seeker will find hidden heat sources. The range is a function of a number of factors including density of foliage, air temperature, humidity and speed of scan. In most cases, Junior Enhanced GF-JR E Game Seeker from Game Finder Inc Inc will penetrate at least 10 to 25 yards into thick areas like a corn field or heavy foliage and, it will reach about two hundred yards in open areas.

Specifications for Game Finder CF JR E Junior Enhnanced:

Battery:		One 9-Volt Battery (Not included).
Battery Life:		Operational life of more than 60 hours at 70 degrees F.
Current Use:		Minimum average of 1.5 milliamp (ma).
Size:		Length 3.75", Width 1.75", Height 1.25"
Weight:		3.6 Ounces with battery.
Display:		Three segment red LED Bar Graph Display.
Enclosure:		Injection molded ABS plastic.
Operation:		Below 0o to above 120o F.
Detector:		Lithium tantalum dual element pyroelectric sensor.

Package Contents:

• Game Finder CF-JR-E Junior Enhanced Gray SKU 7 43774 00051 6

NOTE: Game Finder GF-JR E Junior Enhanced cannot see through glass or other solid matter.
