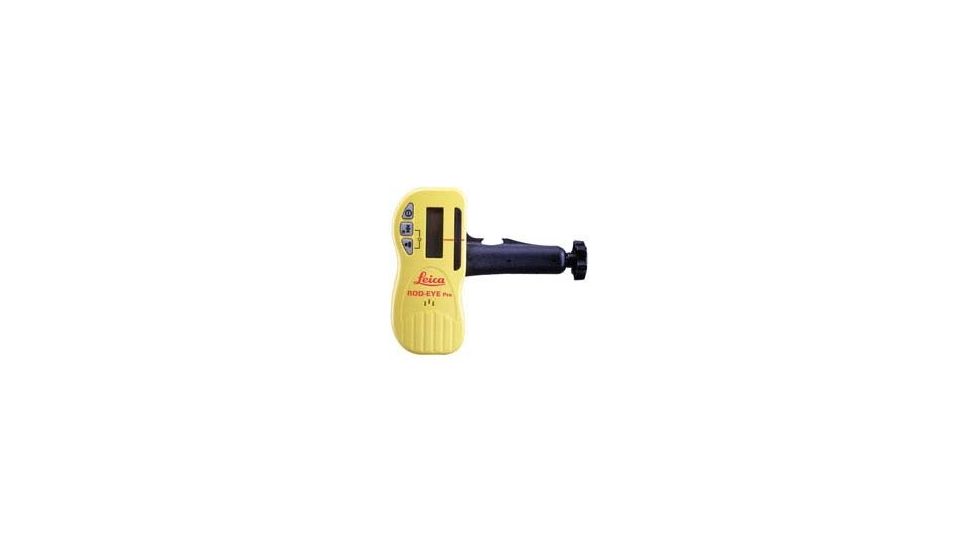

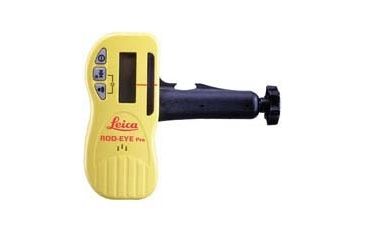

Leica Geosystems ROD-EYE Pro Laser Detector Sensors

Leica ROD-EYE Pro Laser Detector Sensors on sale and available from our online store. OpticsPlanet, Inc is an Authorized US Distributor for Leica Geosystems Surveying Equipment Accessories.

The Leica Geosystems ROD EYE Pro is the top of the line sensor for general construction applications. The Leica Geosystems ROD EYE Family of Sensors offers solutions for any general construction and interior application, and are ideally matched to work with the RUGBYTM Family of Lasers. They are construction-tough, designed to work in harsh, loud environments, and provide precise and repeatable accuracy. The Leica ROD-EYE sensors emit three selectable beeper sounds (rapid, slow, and continuous, when high, low, and on-grade, respectively) to meet your job site conditions.

The Leica ROD-EYE Pro Laser Detector is the top of the line sensor for general construction applications, with a working diameter of 2,500 ft (750 m). Its liquid crystal display (LCD) on both the front and rear allow for easy visual indication of the reference plane of visible or invisible laser light. The Leica ROD EYE Pro Sensor has extremely accurate sensing bands, and even features industrial deadband settings for special applications. The Leica ROD-EYE Pro's bracket comes with a reversible mounting jaw and a vise-like grip to suit all shapes of rods. All ROD-EYE Pro's come with a 36 month warranty - INDUSTRY'S BEST.

Available Leica Rod Eye Pro Laser Detectors:

• Leica 727160 Rod-Eye Pro Laser Detector Sensor w/o Bracket
• Leica 727163 Rod-Eye Pro Laser Detector Sensor w/ Bracket
• Leica 727164 Rod-Eye Pro Laser Detector Sensor w/ Bracket & Level Vial

Specifications of Leica ROD-EYE Pro Laser Detector Sensors:

Working Diameter:		6 ft to 2500 ft (2 m to 750 m)*
Detection Height:		2 inches (50 mm)
Detection Accuracy:		Standard Accuracy Bandwidth Super fine ± 0.020 in (0.50 mm) Fine ± 0.040 in (1 mm) Medium ± 0.080 in (2 mm) Course ± 0.120 in (3 mm) Industrial Accuracy Bandwidth Zero bandwidth ± 0.00 in (0.00 mm) Fine Industrial ± 0.0025 in (0.064 mm) Course Industrial ± 0.0050 in (0.127 mm)
Reception Angle:		± 45°
Display:		LCD front and rear
Grade Display:		9 channel grade display
Beeper Volumes:		High 110 dBA  Low 90 dBA   Off
Battery Size:		2 AA
Battery Life:		70+ hours**
Low Battery Indicator:		Yes
Rod Master:		Yes - indicates when the RUGBY's batteries are low
Automatic Shut Off:		30 minutes, 24 hours, or none (optional)
Dimensions:		6.4 x 2.9 x 1.2 inches (163 x 74 x 30 mm)
Offset notch:		2 inches (50 mm)
Operating Temperature:		-20°C to 60°C (-4° F to 140°F)
Memory, Last Beam Strike:		Yes
Rod-Eye Clamp:		Yes, with reversible jaw for oval rods
Warranty:		36 months

Features of Leica ROD-EYE Pro Laser Detector Sensors:

• Liquid Crystal Display (LCD) front and rear
• Working diameter of 2,500 ft (750 m)
• Detection height of 2 inches (50 mm)
• 9-channel grade display
• Beeper emits an audible tone that indicates on-grade, high or low
• Extremely accurate sensing bands are user selectable
• Industrial deadband settings for special applications
• Specifically designed for use in harsh, loud, construction environments
• Works with any rotating laser
• Bracket comes with reversible jaw and vise-like grip to suit all shapes of rods
• 36-month warranty — INDUSTRY’S BEST!

Package Contents:

• Leica ROD-EYE Pro Laser Detector Sensors
