Steiner Laser Devices DBAL-I2 Dual Beam Aiming Laser with Visible Green Pointer (532nm) (
Tap Tap to Zoom
Product No Longer Available
Unfortunately Steiner Laser Devices DBAL-I2 Dual Beam Aiming Laser with Visible Green Pointer (532nm) ( is not listed by TacticalStore.
Product Info for Steiner Laser Devices DBAL-I2 Dual Beam Aiming Laser with Visible Green Pointer (532nm) (

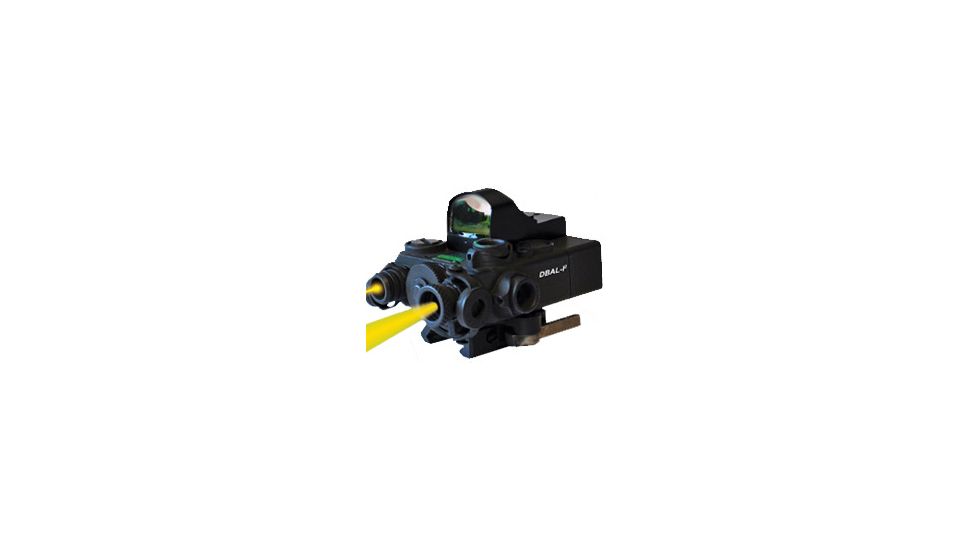

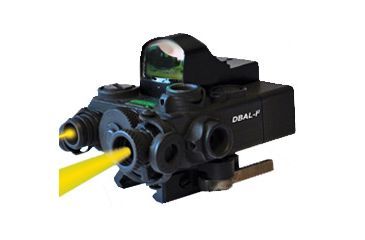

Steiner Aiming Laser DBAL-I2 with Visible Green Pointer (532nm) (<50mW), Infrared Pointer/Illuminator (835nm) (<150mW) is the cutting-edge replacement for the AN/PEQ-2A combining an visible green laser pointer and infrared pointer/illuminator in a lightweight, rugged metal housing. The Steiner Laser Sight from DBAL-I2 series provides the same functionality as AN/PEQ-2A. This Laser by Steiner is smaller and lighter and also significantly shorter and leaves more rail space for other accessories. Aiming Laser Sight by Steiner mirrors the AN/PEQ-2A activation switch options. Built to perform under the most rigorous conditions and survive the harshest environments, the Laser Device DBAL-I2 Laser Sight provides operators with a critical tool for use with night vision devices.
Specifications for Steiner Dual Beam Aiming Laser-Intelligent 2 with Visible Green Pointer and Infrared Pointer:
| Mechanical | ||
|---|---|---|
| Environment: | Waterproof to 3 meters | |
| Height: | 1.75 in / 4.4 cm | |
| Length: | 3.5 in / 8.9 cm | |
| Limited Warranty: | 1 year | |
| Material: | Anodized aircraft aluminum 6061T-6 | |
| Weight: | 8.2 oz / 232 grams (with battery) | |
| Width: | 2.75 in / 7 cm | |
| Electrical | ||
| Battery: | One 3-volt 123A lithium or One 1.5-volt AA | |
| Battery Life: | 5 hours continuous | |
| Full Angle Beam Divergence | ||
| IR Pointer: | 0.3 mrad | |
| IR Illuminator: | 0.5-75 mrad | |
| Laser Type | ||
| Visible Pointer: | Class IIIa | |
| IR Pointer: | Class IIIb | |
| IR Pointer/Illuminator: | Class IIIb | |
| Power Output | ||
| Hi-Power Visible pointer: | <5mW | |
| IR Pointer: | <50mW | |
| IR Pointer/Illuminator: | <50mW or <150mw | |
| Range Visibility | ||
| Visible pointer (low light): | 450 meters, 30 meters daytime | |
| IR Pointer: | 2000 meters | |
| IR Pointer/Illuminator (<50mW): | 2000 meters | |
| IR Pointer/Illuminator (<150mW): | 5000 meters | |
| Wavelength | ||
| IR Pointer/Illuminator: | 835nm | |
Features of Steiner Intelligent II DBAL I2 Dual Beam Aiming Laser:
- Rugged aerospace aluminum housing, MIL-SPEC Type III hardcoat anodized
- Hi- and Lo-power modes of operation
- Meets MIL-STD-810G requirements
- ESD compliant for air worthiness
- Activation / low battery indicator light
- Remote cable pressure pad switch and integrated momentary activation switch
- Single tap enables momentary activation
- Double tap activates the laser in a continuous ON mode
- Fully adjustable windage and elevation
- Optional optical diffuser, neutral density filter, mub-miniature red dot sight, MIL-SPEC-1913 top rail or flip-up front sight
- Manufactured in the U.S.A.
- IR Pointer (<50mW)
- IR Pointer / Illuminator (<50mW or <150mW)
- Optional visible red (<5mW) or green (<5mW, <30mW or <50mW) Pointer with IR Pointer/Illuminator
Package Contents:
- Steiner Laser Devices DBAL-I2 Laser Device with Visible Green Pointer (532nm) (<50mW), Infrared Pointer/Illuminator (835nm) (<150mW)
- Quick release mount
- Pattern generators (NSN #1240-01-537-0496)
- Battery
- 7 in. remote cable pressure
- Nylon pouch
Steiner eOptics 2-Year Warranty
Covers all Night Vision Devices, Laser Aiming Solutions, Beacons, and Battle Lights. Valid in U.S. and Canada only. eOptics warrants its products against defects in workmanship and materials for a period of 2 years from the date of purchase. Warranty is void if the product has been abused, misused, neglected, or disassembled prior to the return to the manufacturer. The Steiner eOptics Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
