Code: NI-4S-Eyepiece-7467
MPN: 7467
UPC: 018208074679

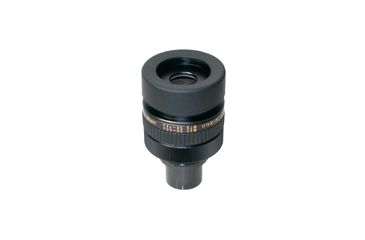

Nikon Zoom Fieldscope Eyepieces 13-40x for 50mm / 20-60x for 60mm / 25-75x for 82mm Spotting Scopes 7467 feature fully multicoated lenses for maximum light transmission, true color rendition, and distortion free viewing. Nikon 13-30x/20-60x/25-75x Fieldscope Zoom Eyepieces also incorporate sliding eyepieces to accommodate eyeglass wearers and are compatible with the full line of Nikon Fieldscopes. Nikon 7467 Fieldscope Eyepiece is a great eyepiece of the line with 20-60x zoom (25-75x zoom for 78mm Field-scopes and 13-40x for 50mm Fieldscopes). Each Nikon Fieldscope 13-30x / 20-60x / 25-75x Eyepiece is covered by Nikon's exclusive 25-year limited warranty, as well as Nikon's No Fault Repair/Replacement Policy.
Specifications for Nikon Zoom Eyepiece 13-40x for 50mm, 20-60x for 60mm and 25-75x for 82mm Field-scope Spotting Scopes:
Magnification: |  13-40x with 50mm scopes  20-60x with 60mm scopes
 25-75x with 82mm scopes |
|
Angle of View: |  3.0° with 50mm scopes at 13x only (unspecified otherwise)  2.0° with 60mm scopes at 20x only (unspecified otherwise)
 1.6° with 78 & 82mm scopes at 25x only (unspecified otherwise) |
|
Field-of-View (@ 1000 Yds):Â | Â 157'Â with 50mm scopes at 13x only (unspecified otherwise) Â 105' (35 m at 1000 m) with 60mm scopes at 20x only (unspecified otherwise)
 84' (28 m at 1000 m) with 78 & 82mm scopes at 25x only (unspecified otherwise) |
|
Exit Pupil Diameter: |  3.8 @ 13x with 50mm scopes  3.0 @ 20x with 60mm scopes
 3.3 @ 25x with 82mm scopes |
|
Eye Relief:Â | Â 14mm | |
Relative Brightness: |  14.4 @ 13x with 60mm scopes
 9 @ 20x with 78mm scopes  10.9 @ 25x  with 82mm scopes |
|
Twilight Factor:Â | Â 34.6-60.0 with 60mm scopes
 45.3-78.4 with 82mm scopes |
|
Weatherproofing:Â | Â Waterproof & fogproof | |
Dimensions:Â | Â 3.1 x 1.9" (79 x 48mm) LxW | |
Weight:Â | Â 0.33 lb (150 g) | |
Features of Nikon Fieldscope Zoom Eyepiece 13-40x for 50mm, 20-60x for 60mm and 25-75x for 82mm Fieldscope Spotting Scopes:
Package Contents:
