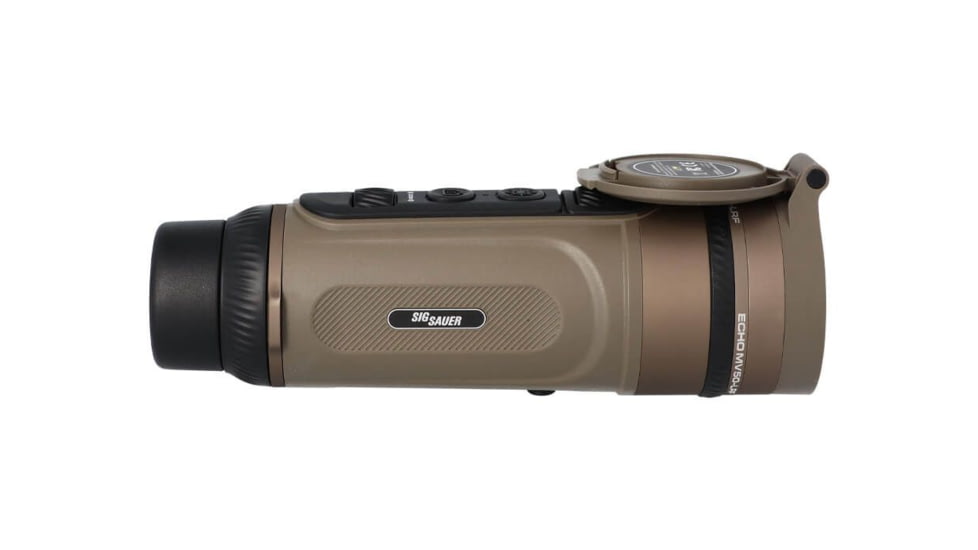

Product Info for SIG SAUER ECHO MV50-LRF 3-24x50mm Thermal Imaging Monocular
Leveraging years of experience creating the industry’s most innovative and rugged technologies, SIG SAUER’s new ECHO MV50-LRF is a compact thermal monocular packed with industry-leading features and fully backed by SIG SAUER’s unrivaled Infinite Guarantee.![]()
The ECHO MV50-LRF is powered by an LWIR 640x512 VGA, 12um 50Hz thermal core with <20mK sensitivity that allows you to identify targets in total darkness with 8 selectable color palettes. Compatible with SIG SAUER’s BDX 2.0 Mobile App, the ECHO MV50-LRF can capture both photo and video that can be viewed or shared in real-time via BDX 2.0.
With an integrated 1000-y laser rangefinder, the ECHO MV50-LRF can deliver custom ballistic solutions driven by Applied Ballistics Ultralight. When paired with a compatible ECHO riflescope, the MV50-LRF communicates immediate holdover solutions through the disturbed reticle of your optic.
Boasting one of the longest runtimes in the industry, the ECHO MV50-LRF is capable of drawing power from an internal reserve cell, in addition to a removable 18500 lithium-ion battery. The device ships with (2) 18500 batteries to ensure that you have all the power you need for long nights afield.
Specifications for SIG SAUER ECHO MV50-LRF 3-24x50mm Thermal Imaging Monocular:
| Manufacturer: | SIG SAUER |
| Magnification: | 3 - 24 x |
| Color: | Flat Dark Earth |
| Field of View, Linear: | 46 ft at 100 yds |
| Resolution: | 640x512 pixels |
| Objective Lens Diameter: | 50 mm |
| Length: | 10.7 in |
| Battery Life: | 10 hours |
| Battery Type: | Lithium Ion |
| Weight: | 31.3 oz |
| Water Resistance Level: | Waterproof |
| Refresh Rate: | 50 Hz |
| Sensor Resolution: | 640x512 pixels |
Features of SIG SAUER ECHO MV50-LRF 3-24x50mm Thermal Monocular
- Integrated 1000y Laser Rangefinder and Applied Ballistics Ultralight
- 3-24x Digital Zoom
- LWIR 640x512 VGA 12um 50Hz Thermal Core with <20mK sensitivity
- Fully Backed by SIG SAUER’s Infinite Guarantee
- 8 Selectable Color Palettes
- Record Photo and Video (With Audio)
- BDX 2.0 Connectivity
- Compatible with BDX-Capable Thermal Riflescopes
- 10-Hour Runtime
Package Contents:
- SIG SAUER ECHO MV50-LRF 3-24x50mm Thermal Imaging Monocular
