Reticle: V-Plex Tube Diameter: 1 inReticle Focal Plane: Second Focal Plane (SFP) Illumination Color: None Finish: Hard Anodized Color: Black Weight: 18 ozAdjustment Click Value: 0.25 MOAAdjustment Type: MOA Illumination Type: Non-Illuminated Included Accessories: 4-inch sunshade , Lens Cloth , Protective lens caps Additional Features: Capped Reset Turrets Condition: New W/E Travel at 100 Yds: 80 MOA

Code: VX-RS-DBHP4-DBK-10021

MPN: DBK-10021

UPC: 875874005457

List: $429.00Save 54%
$198.75

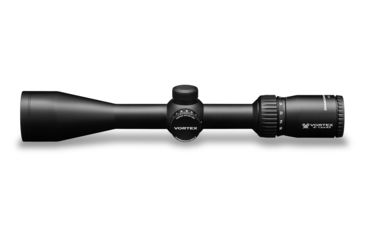

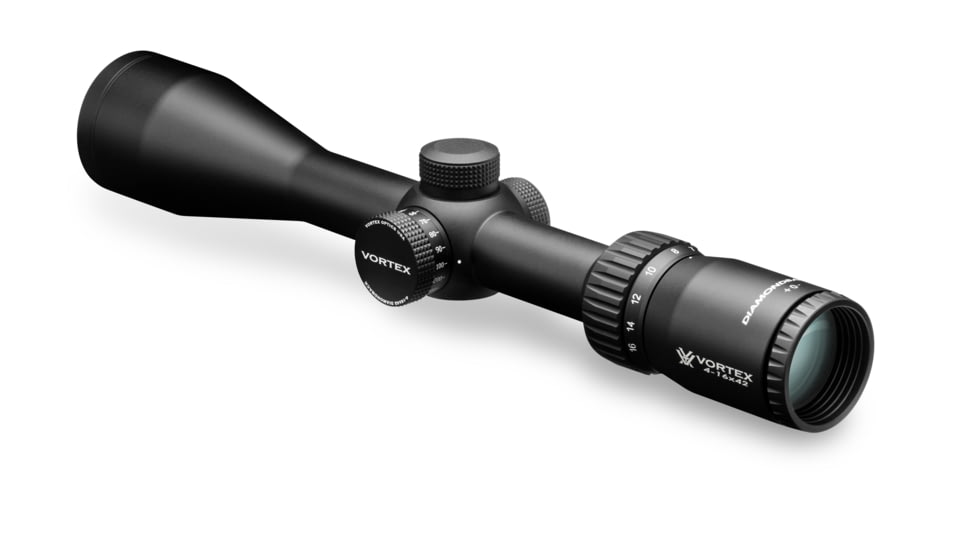

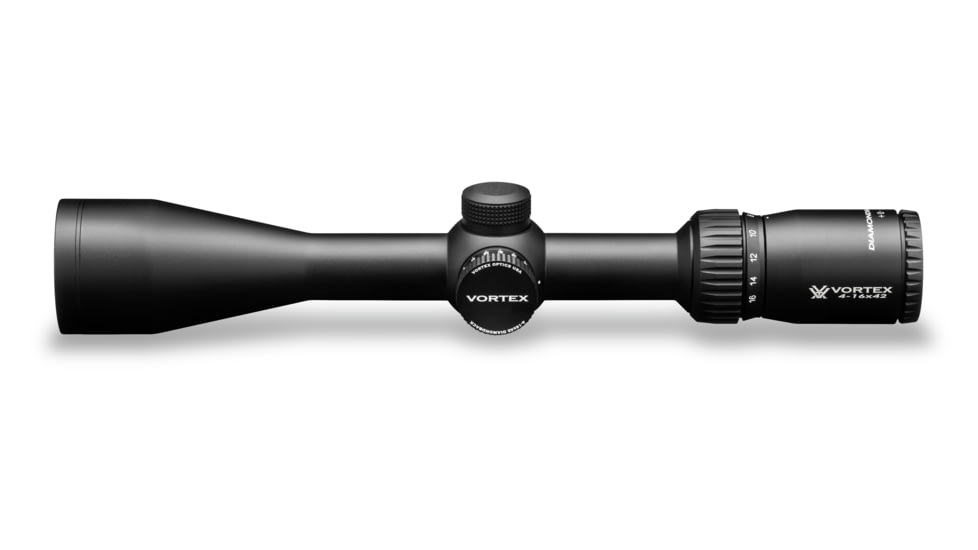

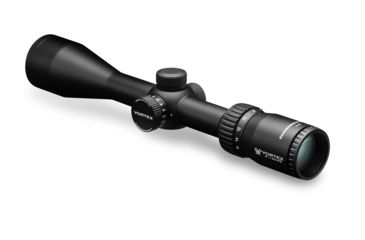

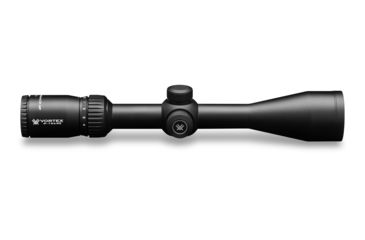

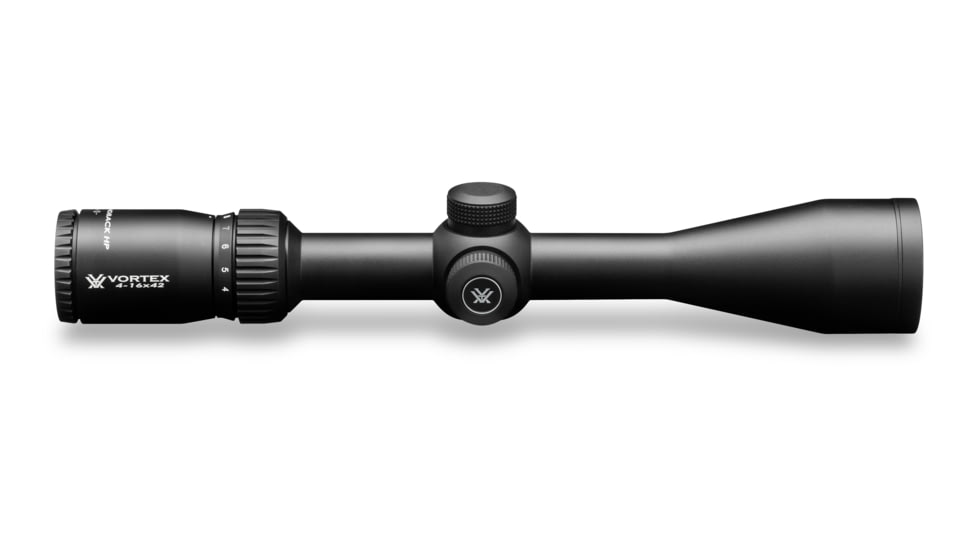

Product Info for OpticsPlanet Exclusive Vortex Diamondback HP 4-16x42mm Rifle Scope, 1in Tube, Second Focal Plane (SFP)

The Vortex Diamondback HP 4-16x42mm Shockproof Rifle Scope allows quick and easy reticle focusing to give you better accuracy in hitting your target. These 1" Riflescopes engineered by the experts at Vortex feature XD extra-low dispersion glass that increases resolution and color fidelity while XR fully multi-coated lenses maximize every minute of shooting light. The Vortex Diamondback HP 4-16x42 Rifle Scope includes easily accessible side focus parallax adjustment with a trim profile to allow optimal mounting height. The Vortex Diamondback HP 4-16x42mm Waterproof Rifle Scope is accurate even at the highest magnification to make your mark.image

Specifications for OpticsPlanet Exclusive Vortex Diamondback HP 4-16x42mm Rifle Scope, 1in Tube, Second Focal Plane (SFP):

Manufacturer: Vortex
Objective Lens Diameter: 42 mm
Magnification: 4 - 16 x

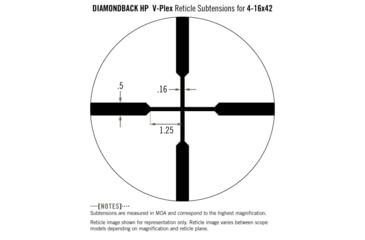

Reticle: V-Plex
Tube Diameter: 1 in
Reticle Focal Plane: Second Focal Plane (SFP)
Exit Pupil: 2.63 - 10.5 mm
Illumination Color: None
Finish: Hard Anodized
Field of View, Linear: 6.1 - 23.8 ft at 100 yds
Eye Relief: 4 in
Color: Black
Weight: 18 oz
Adjustment Click Value: 0.25 MOA

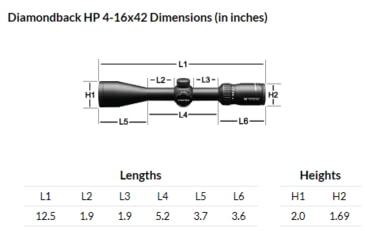

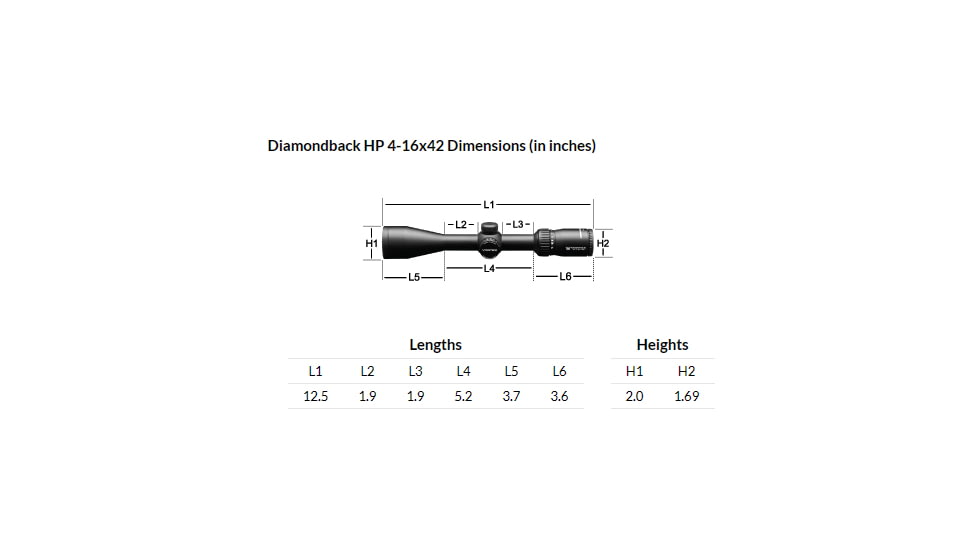

Length: 12.5 in
Adjustment Type: MOA
Parallax: 30 yds to infinity
Illumination Type: Non-Illuminated
Fabric/Material: Aircraft-Grade Aluminum
Adjustment Range: 80 MOA
Height: 2 in
Focus Range: 30 yds to infinity
Lens Material: XD Glass
Optical Coating: Fully Multi-Coated
Weather Resistance: Fog Resistant
Water Resistance Level: Waterproof
Shockproof: Yes
Fogproof: Yes
Package Type: Box
Included Accessories: Protective lens caps, Lens Cloth, 4-inch sunshade
Magnification Type: Variable
Additional Features: Capped Reset Turrets
Condition: New
W/E Travel at 100 Yds: 80 MOA

Features of OpticsPlanet Exclusive Vortex Diamondback HP 4-16x42mm Rifle Scope, 1in Tube, Second Focal Plane (SFP):

  • XD Lens Elements - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images
  • XR Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces
  • Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification
  • Capped Reset Turrets - Allow re-indexing of the turret to zero after sighting in the Rifle Scope. Caps provide external protection for turret
  • 1-inch diameter single-piece tube - maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproof function
  • Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity
  • Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position
  • Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the Rifle Scope for reliable performance in all environments
  • Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures
  • Shockproof - Rugged construction withstands recoil and impact
  • Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions
  • Side Focus - Adjustment located on Rifle Scope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal

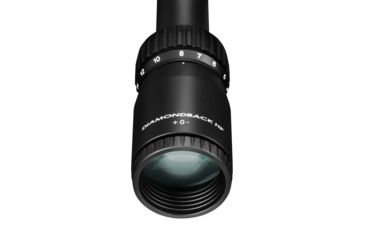

  • Fast Focus Eyepiece - Allows quick and easy reticle focusing

Package Contents:

  • OpticsPlanet Exclusive Vortex Diamondback HP 4-16x42mm Rifle Scope, 1in Tube, Second Focal Plane (SFP)
  • 4-inch Sunshade
  • Lens Caps
  • Lens Cloth
