- Reticle:
- Illuminated Etched
- Tube Diameter:
- 30 mm
- Reticle Focal Plane:
- Second Focal Plane (SFP)
- Finish:
- Matte
- Color:
- Black
- Weight:
- 16.2 oz
- Adjustment Click Value:
- 0.5 MOA
- Adjustment Type:
- MOA
- Additional Features:
- Low Turret-Finger Adjustable
Code: WQ-RS-SPRM5-1-4X24IR
MPN: 1-4x24IR
UPC: 840369202291

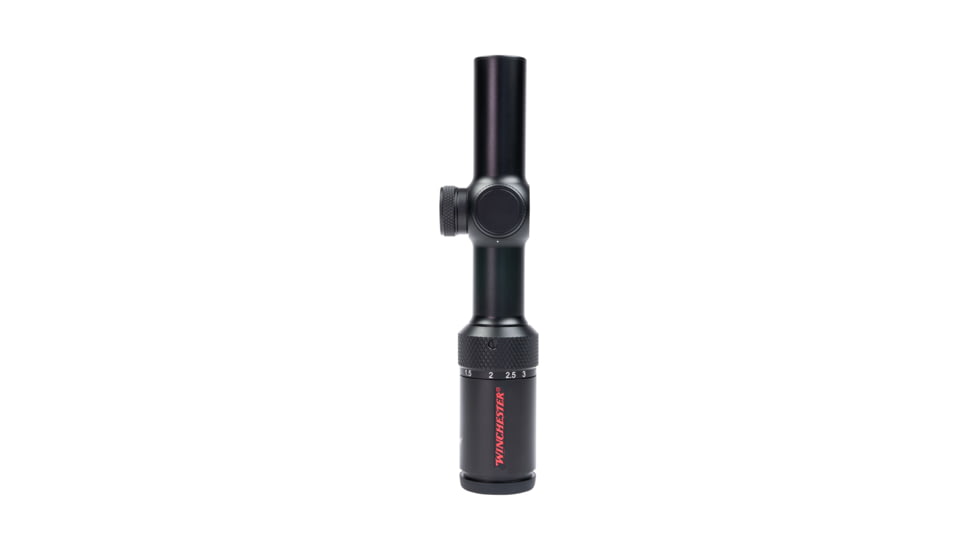

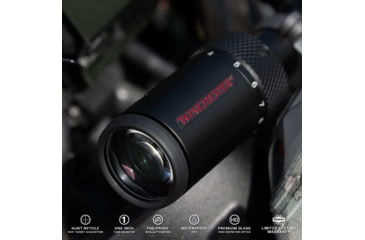

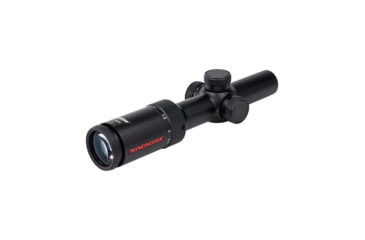

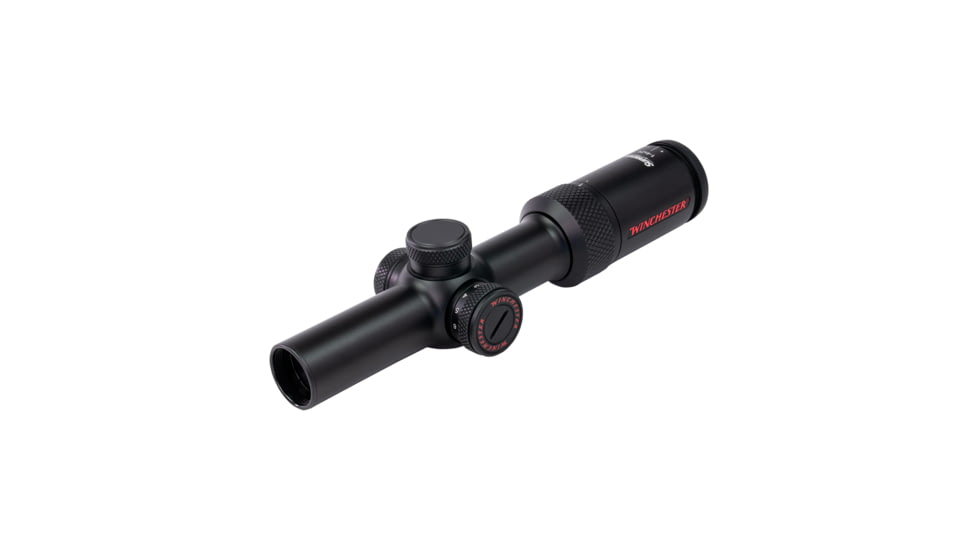

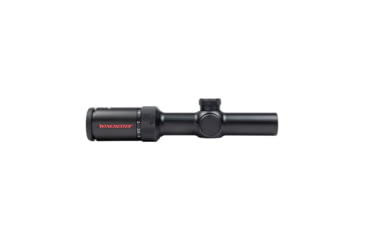

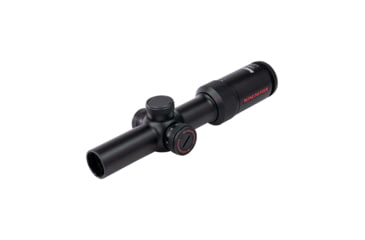

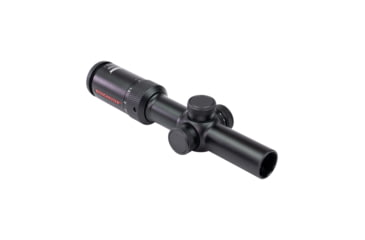

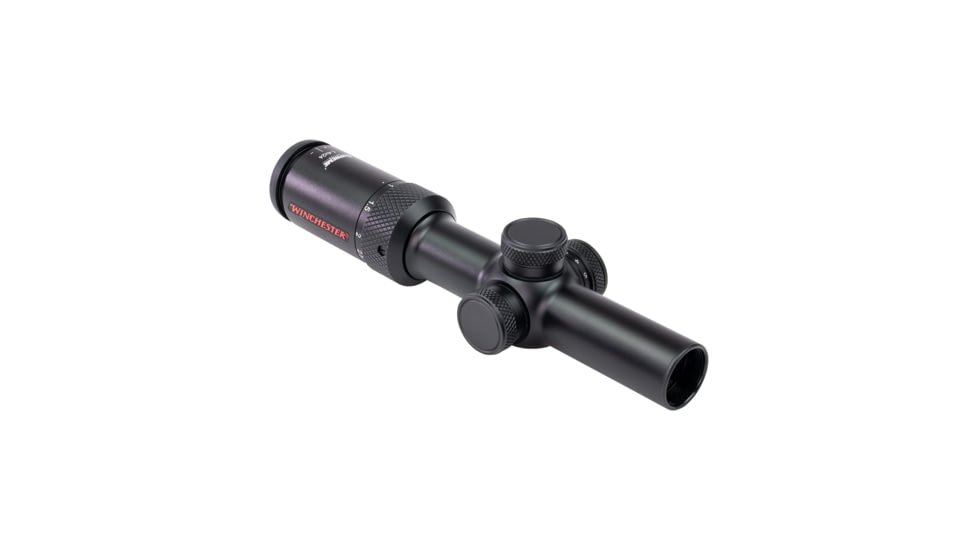

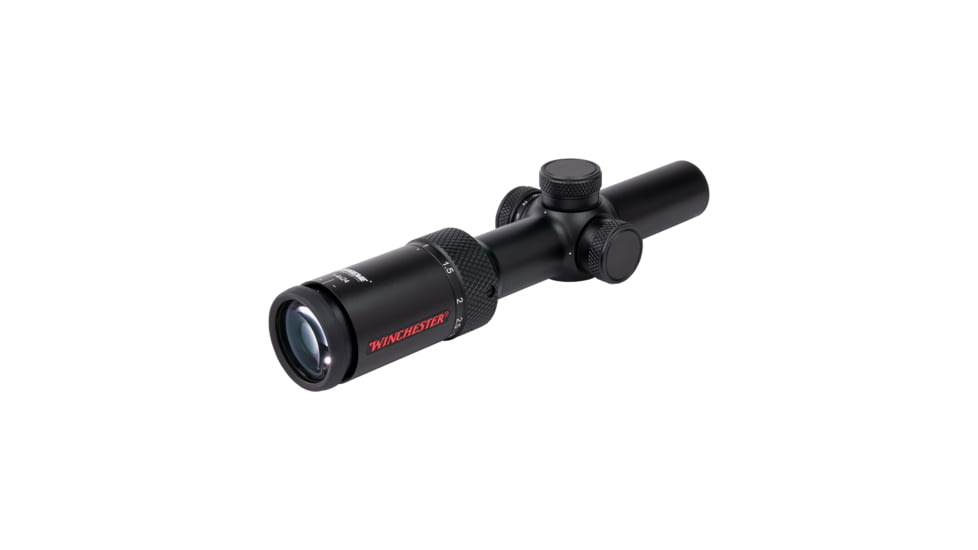

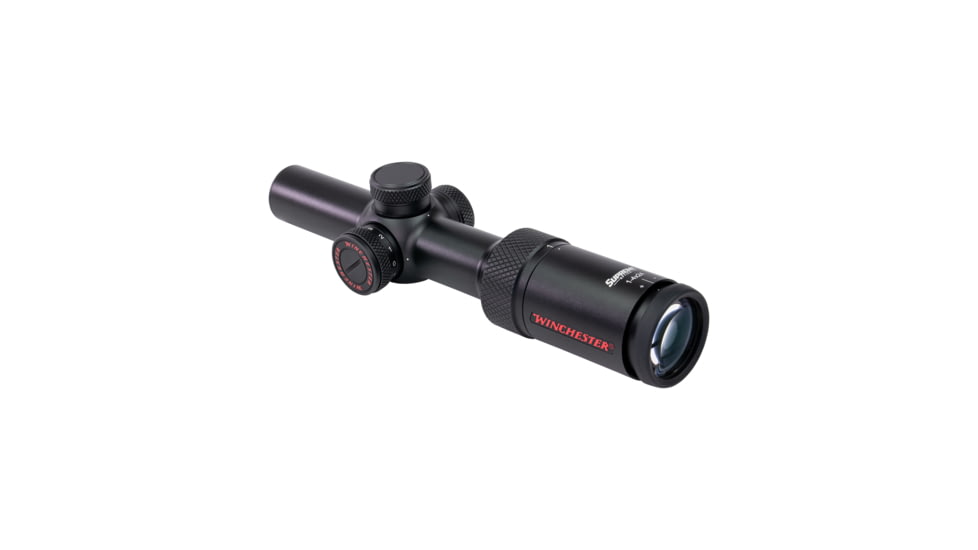

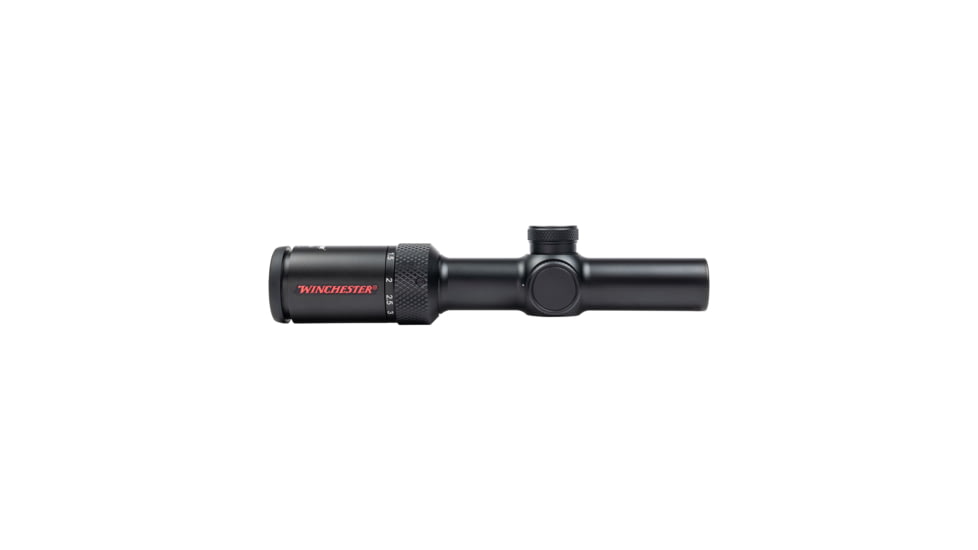

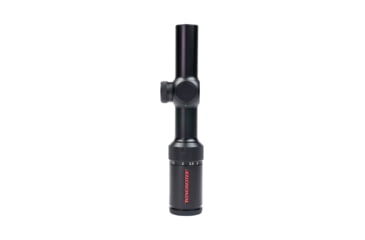

Product Info for Winchester Supreme Optics 1-4x24mm 30mm Tube IR Rifle Scope, Second Focal Plane

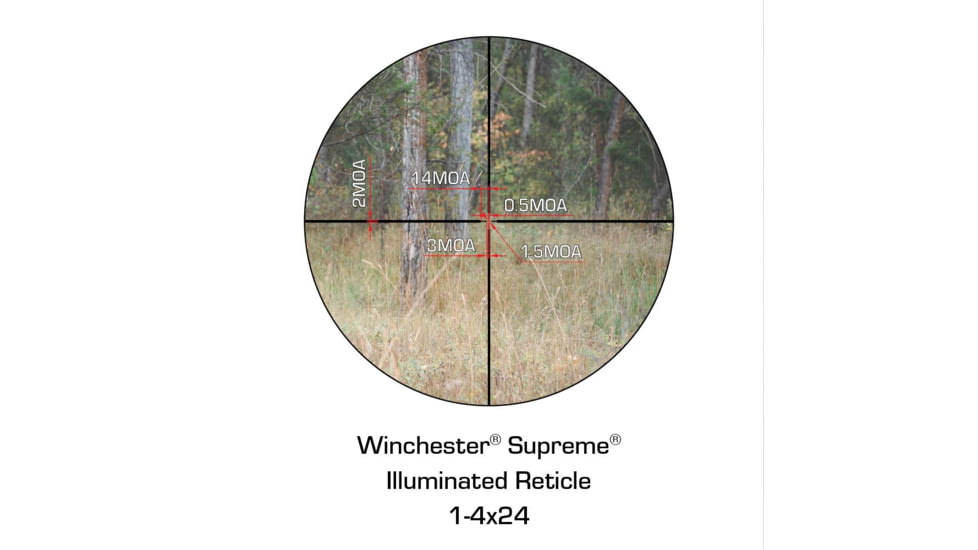

Enhance your shooting precision with the Winchester Supreme Optics 1-4x24mm IR Rifle Scope, a compact powerhouse designed for close to medium-range engagements. This versatile optic features an illuminated reticle, providing a clear aiming point in various lighting conditions, from bright daylight to low-light scenarios. These 30 mm Riflescopes feature fully multi-coated lenses, enhanced by proprietary Winchester WINcoat technology, delivering exceptional light transmission and image clarity, ensuring you never miss a critical detail.![]()
Built to withstand the demands of serious shooters, this Winchester Supreme Optics 1-4x24mm Rifle Scope boasts a rugged one-piece housing machined from A6063-T6 aluminum. Its shockproof construction can handle up to 800 Gs of recoil, making it suitable for a wide range of firearms. The scope's generous eye relief and wide field of view provide quick target acquisition and situational awareness. With its nitrogen-filled, IPX7-rated body, this scope offers reliable fog-proof and waterproof performance in challenging environments. Whether you're engaging targets at the range or tracking game in the field, the Winchester Supreme Optics 1-4x24mm IR Rifle Scope delivers the optical clarity and durability needed for consistent, accurate shooting.

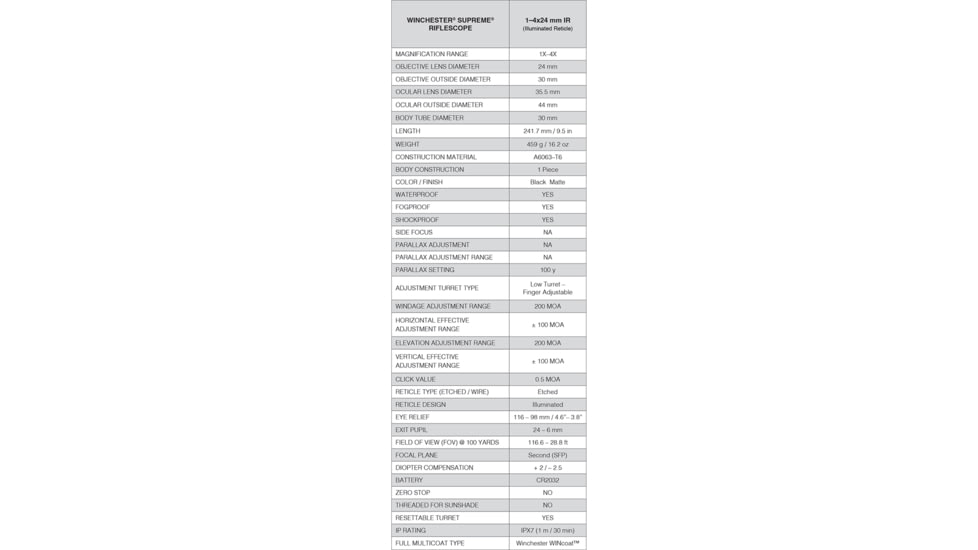

Specifications for Winchester Supreme Optics 1-4x24mm 30mm Tube IR Rifle Scope, Second Focal Plane:
| Manufacturer: | Winchester |
| Objective Lens Diameter: | 24 mm |
| Magnification: | 1 - 4 x |

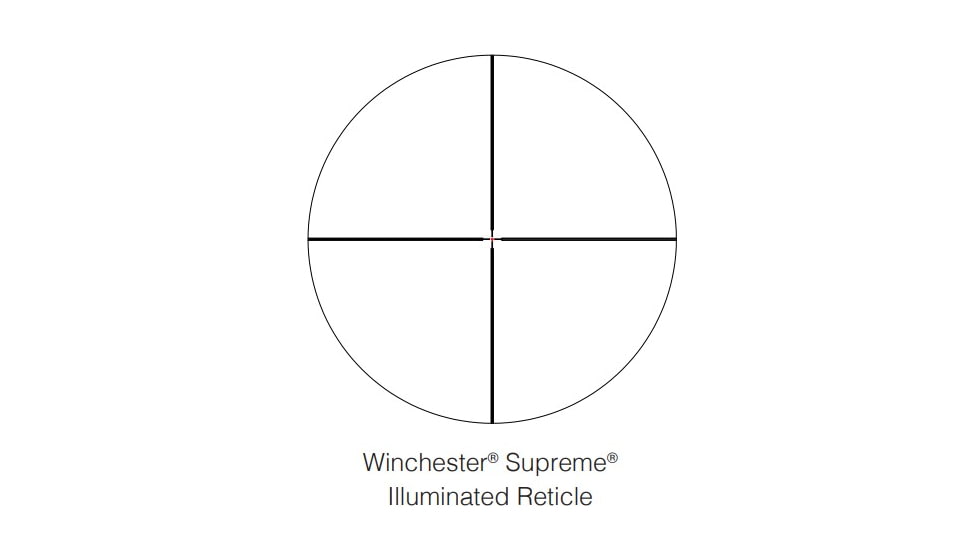

| Reticle: | Illuminated Etched |
| Tube Diameter: | 30 mm |
| Reticle Focal Plane: | Second Focal Plane (SFP) |
| Exit Pupil: | 24 - 6 mm |
| Finish: | Matte |
| Field of View, Linear: | 116.6 - 28.8 ft at 100 yds |
| Eye Relief: | 4.6 - 3.8 in |
| Diopter Adjustment Range: | -2.5 - 2 dpt |
| Color: | Black |
| Weight: | 16.2 oz |
| Adjustment Click Value: | 0.5 MOA |
| Length: | 9.5 in |
| Adjustment Type: | MOA |
| Parallax: | 100 yds |
| Battery Type: | CR2032 |
| Fabric/Material: | A6063-T6 |
| Adjustment Range: | 200 MOA |
| Optical Coating: | Winchester WINcoat |
| Water Resistance Level: | IPX-7 |
| Shockproof: | Yes |
| Fogproof: | Yes |
| Package Type: | Box |
| Additional Features: | Low Turret-Finger Adjustable |
Features of Winchester Supreme Optics 1-4x24mm 30mm Tube IR Rifle Scope, Second Focal Plane
- Fully multi-coated lenses throughout the optical system.
- Excellent low light performance.
- Beryllium bronze springs.
- One-piece housing machined from tough A6063-T6 aluminum.
- Black anodized aluminum exterior.
- Designed to stand up to 800 Gs of recoil for standard & magnum rifles, and muzzleloaders.
- Nitrogen filled and sealed optical system for fog, water, and dust proof performance.
- Smooth fast focus eyepiece adjustment.

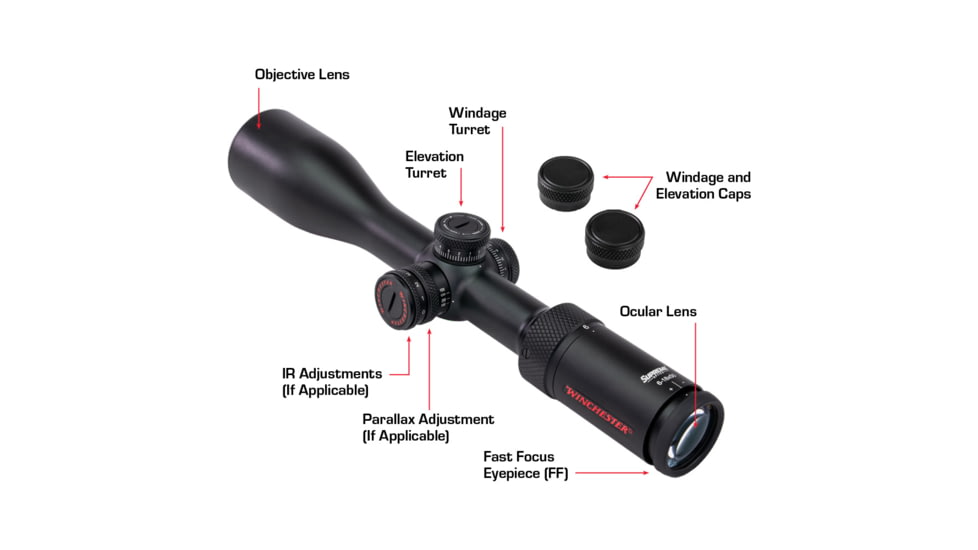

- Knurled power adjustment ring and turret knobs for a secure grip.

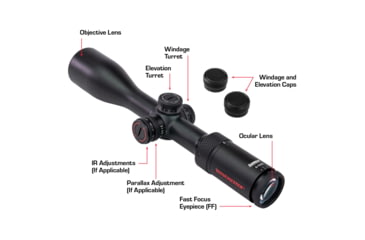

- Fingertip turret adjustment for windage and elevation.
- Zero reset turrets can quickly be adjusted to back to zero with a screwdriver or coin.
Package Contents:
- Winchester Supreme Optics 1-4x24mm 30mm Tube IR Rifle Scope, Second Focal Plane
- Lens cover
- Cleaning cloth
- User manual
