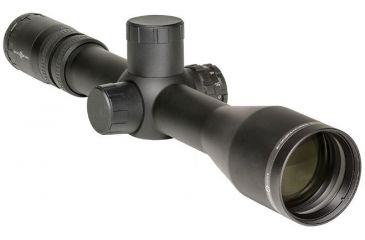

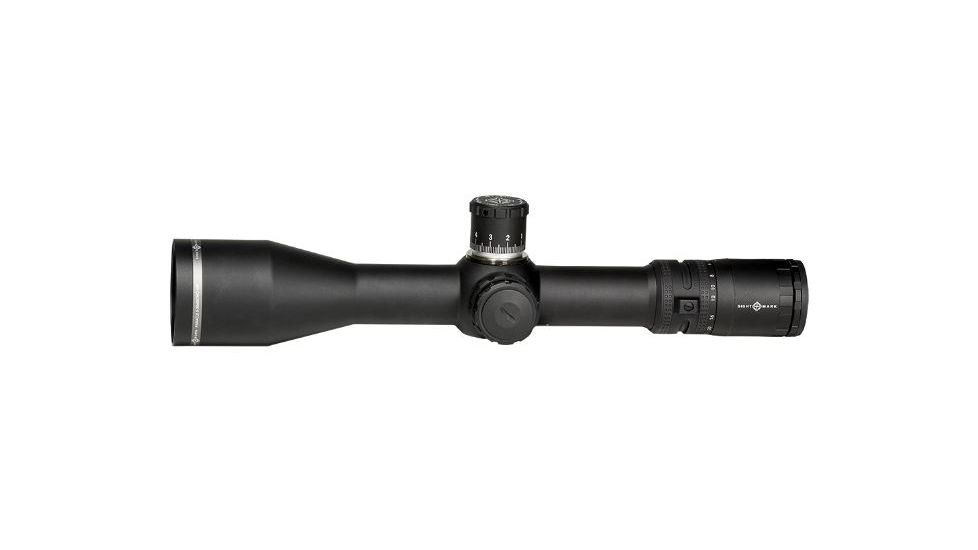

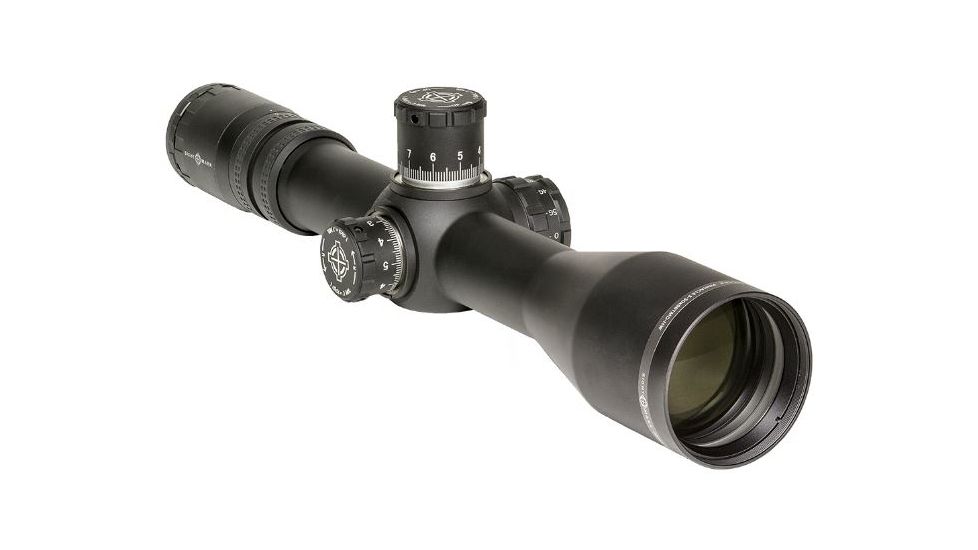

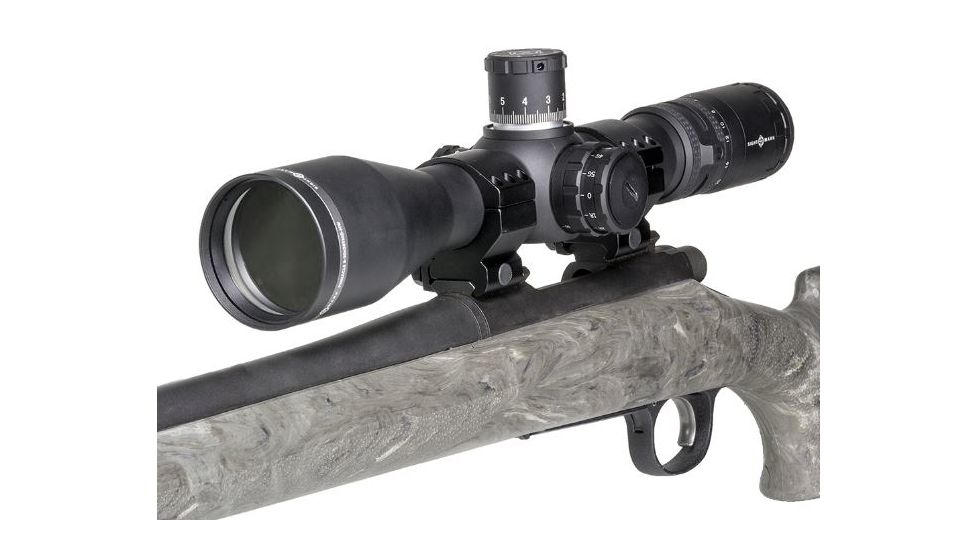

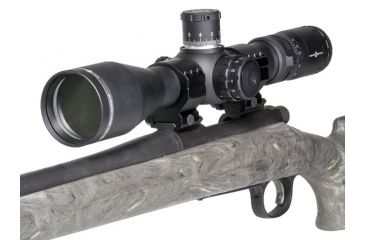

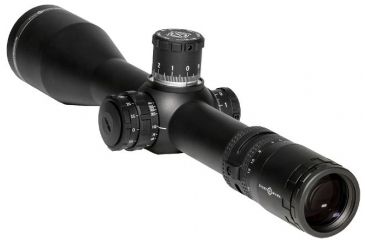

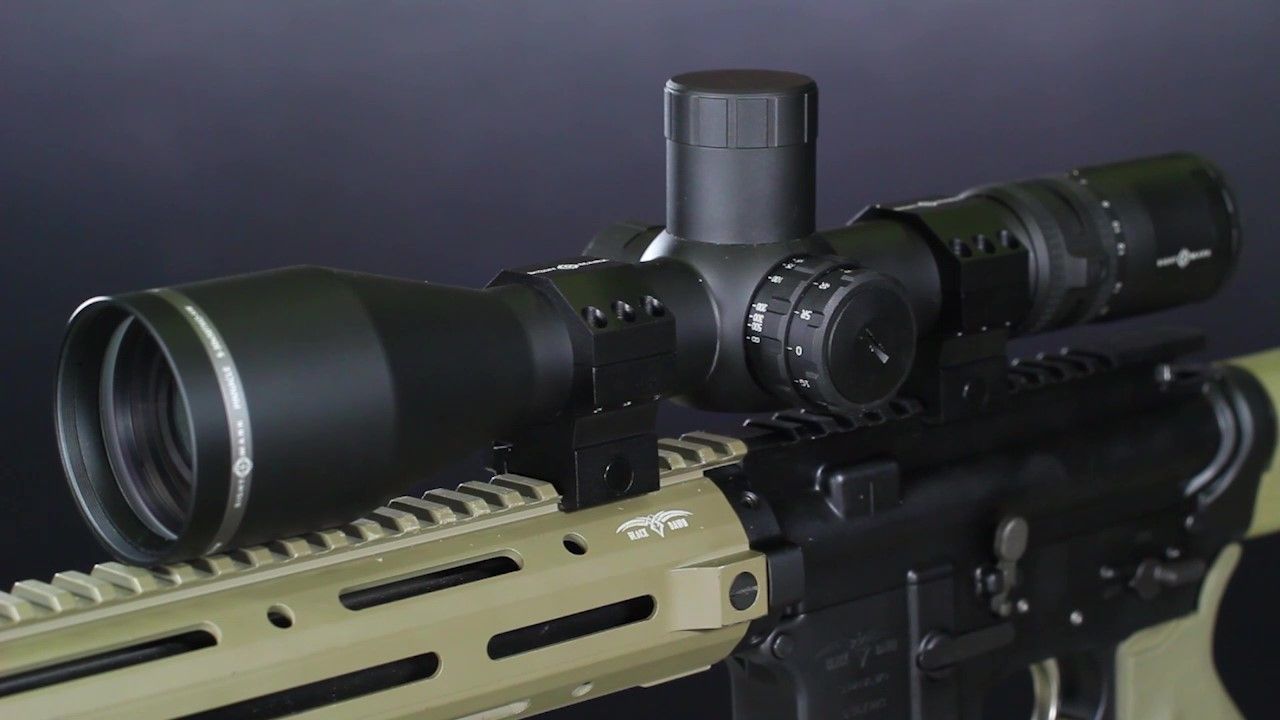

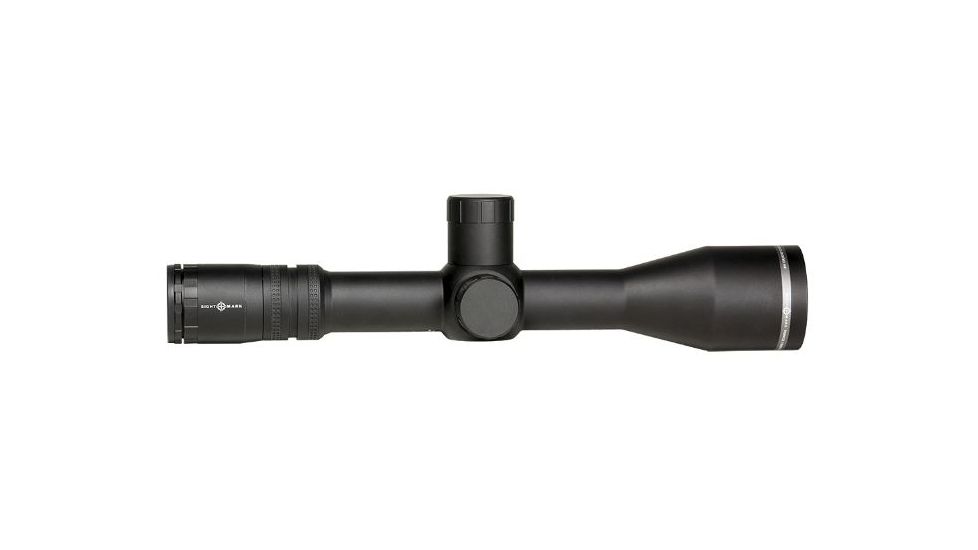

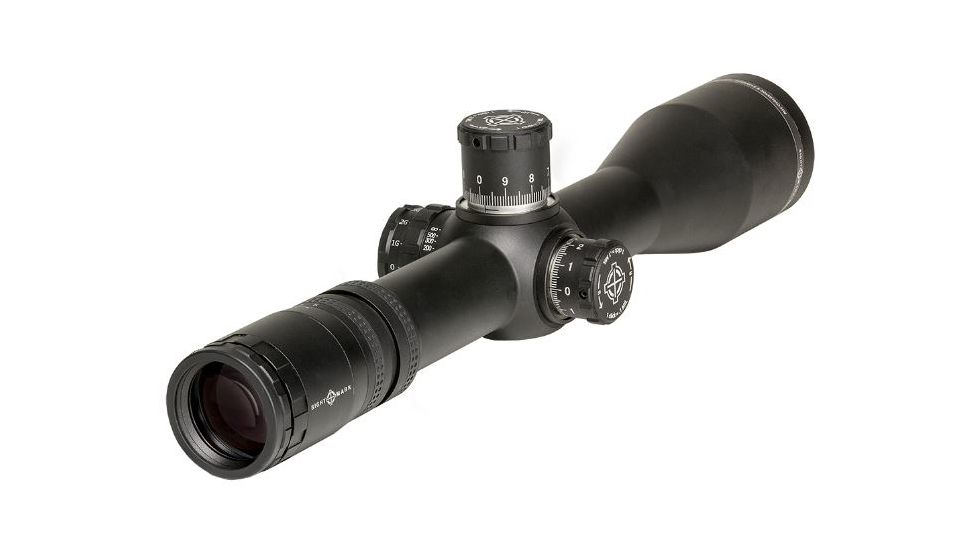

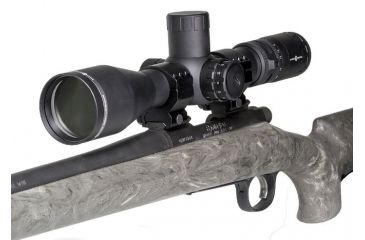

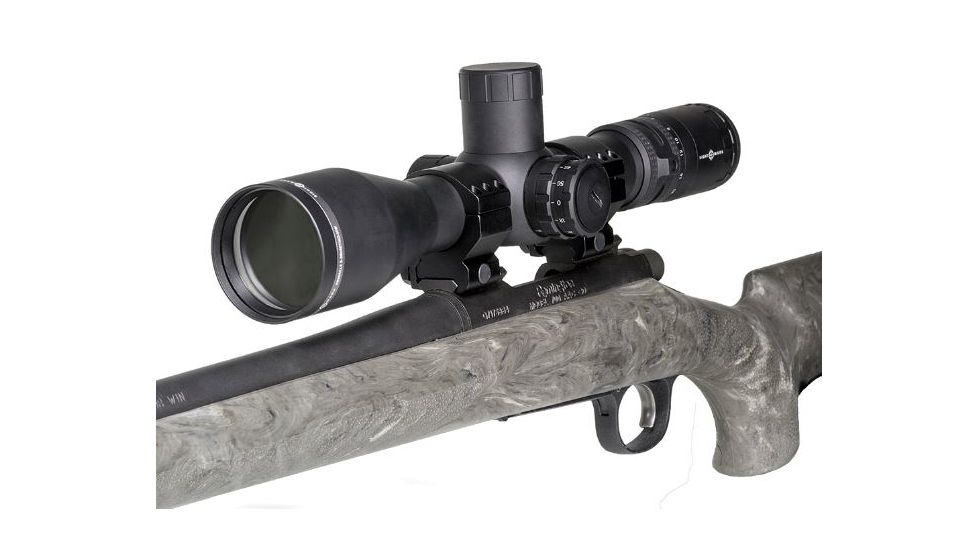

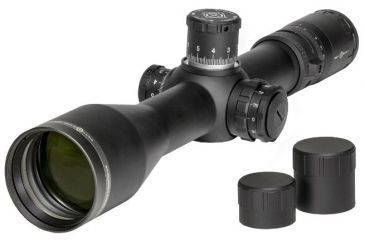

Sightmark Pinnacle 5-30x50 TMD Rifle Scope SM13029TMD w/ Free Shipping and Handling
Tap Tap to Zoom
Code: XK-RS-SM13029TMD-EE
MPN: SM13029TMD
UPC: 812495020353
Buy Together and Save

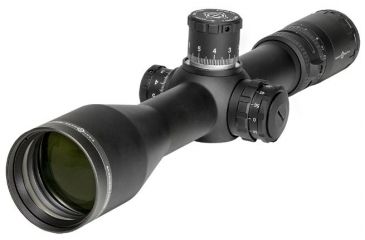

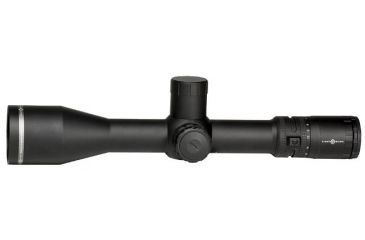

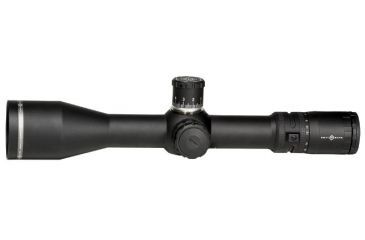

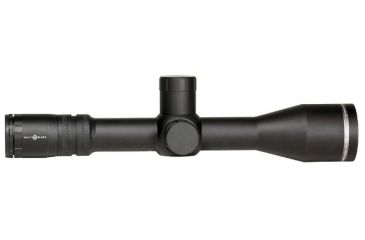

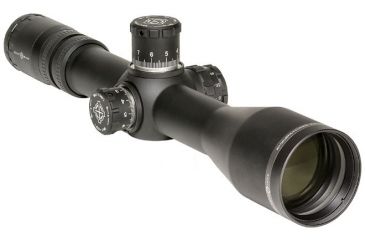

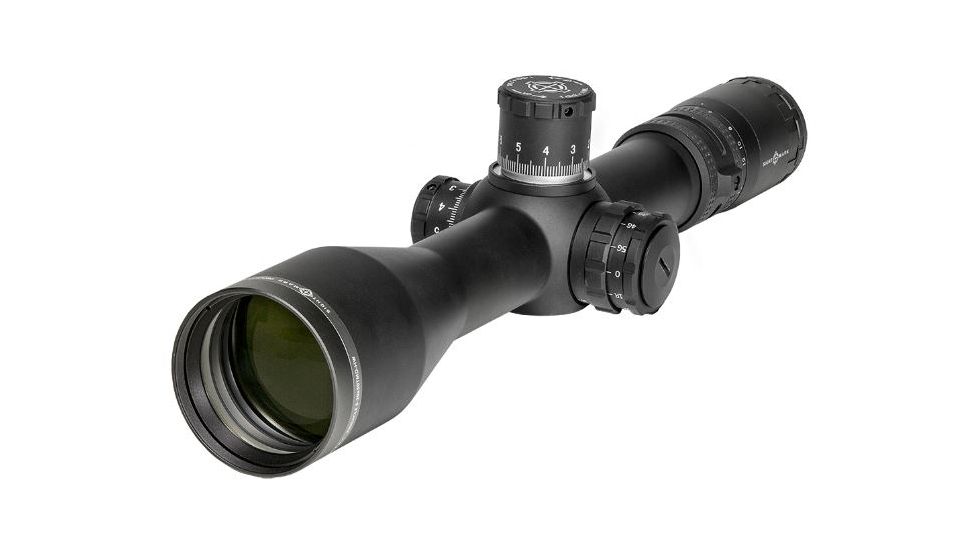

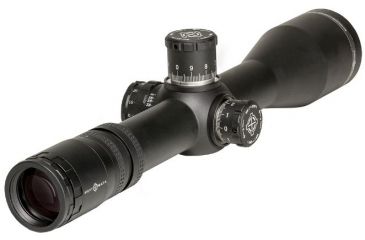

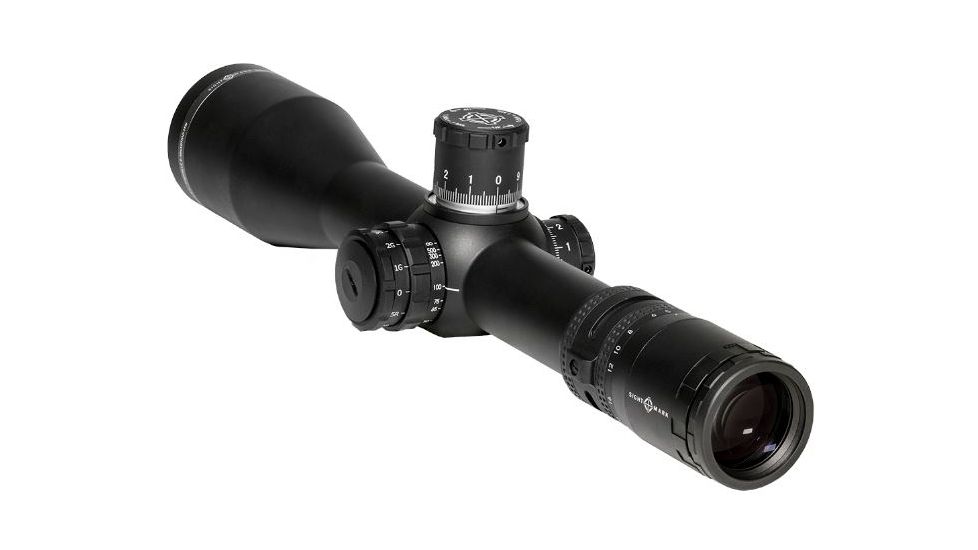

Product Info for Sightmark Pinnacle 5-30x50 TMD Rifle Scope

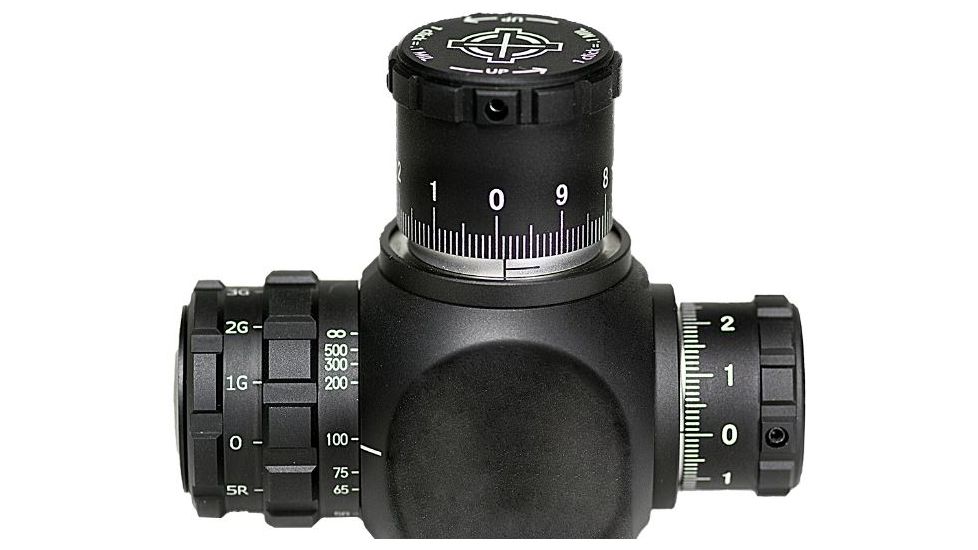

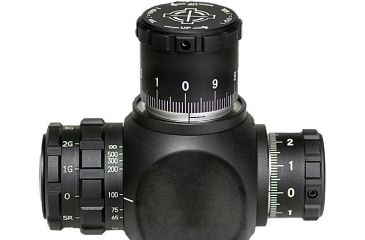

Engineered for precision long-range shooting out to 1,000 yards and beyond, the first-focal plane Pinnacle 5-30x50TMD Rifle Scope is ideal for F-class competition shooting and law enforcement applications. Its zero stop elevation dial allows shooters to easily set a stopping point at the chosen sight in range, guaranteeing an instant return to the original zero every time. The 34mm tube maximizes internal adjustment range and offers improved rigidity compared to 30mm and 1-inch tubes - perfect for long-range, high-caliber rifles. Additionally, its large 50mm objective lens maintains a bright, high resolution image, critical for long-range precision.

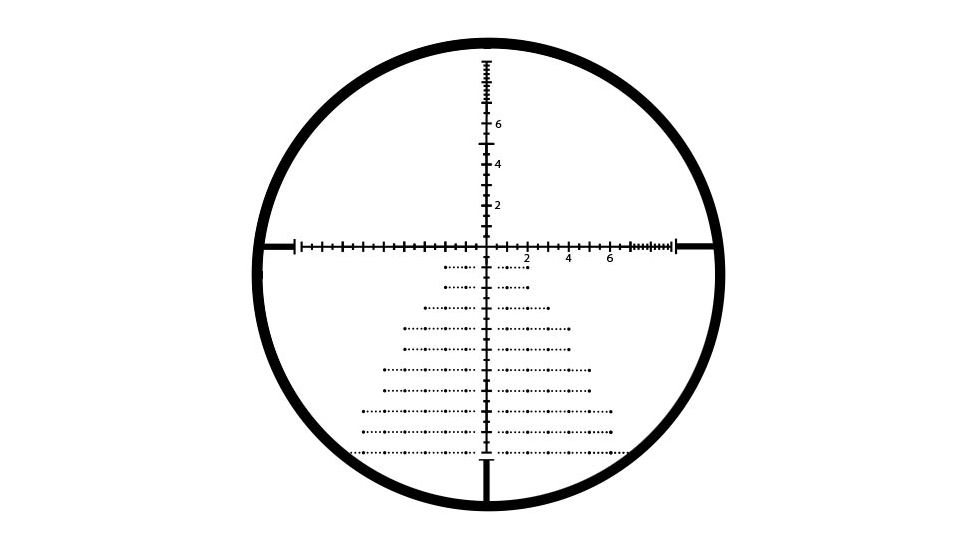

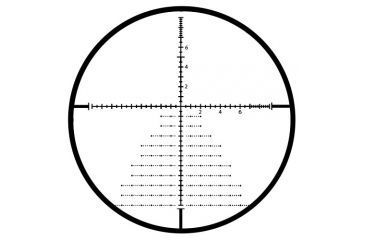

Precision machined with high-definition optics and premium Japanese glass, the Pinnacle 5-30x50TMD offers a 6x zoom range, permitting the shooter to adjust the power up to 30x; and a crystal clear resolution from edge to edge. The TMD-HW reticle is designed for range estimation and holdovers for bullet drop, crosswind and moving targets. This first-focal plane reticle remains in the same visual proportion to the target across the Rifle Scope's entire magnification range, allowing shooters to rangefind and shoot with holdovers at any magnification effectively.
Its hard anodized finish protects the housing from harsh elements and the matte black finish provides concealment. Its 5 brightness settings deliver unmatched clarity in bright to lowlight conditions. Shooters have the luxury of a capped or exposed turret option as well as scratch-resistant lenses, helping to further protect the optic from impact.
Specifications for Sightmark Pinnacle 5-30x50 TMD Rifle Scope:
| Manufacturer: | SightMark |
| Objective Lens Diameter: | 50 mm |
| Magnification: | 5 - 30 x |
| Reticle: | Lr Core |
| Tube Diameter: | 34 mm |
| Reticle Focal Plane: | First Focal Plane (FFP) |
| Exit Pupil: | 1.7 - 8.8 mm |
| Illumination Color: | Red |
| Finish: | Matte |
| Field of View, Linear: | 2.2 - 3.4 ft at 100 yds |
| Field of View, Angle: | 3.86 - 0.64 degrees |
| Eye Relief: | 96 - 97 mm |
| Diopter Adjustment Range: | -2 - 2 dpt |
| Color: | Black |
| Weight: | 34.5 oz |
| Adjustment Click Value: | 0.1 Mil Rad |
| Length: | 14 in |
| Adjustment Type: | Mil Rad |
| Parallax: | 30 yds |
| Illumination Type: | LED |
| Battery Type: | CR2032 |
| Width: | 3.65 in |
| Fabric/Material: | Aluminum |
| Adjustment Range: | 100 Mil Rad |
| Height: | 3.14 in |
| Lens Material: | Glass |
| Optical Coating: | Fully Multi-Coated |
| Battery Life: | 30 - 2000 hours |
| Operating Temperature: | -29 - 71 Celsius |
| Weather Resistance: | Yes |
| Water Resistance Level: | IP67 |
| Shockproof: | Yes |
| Fogproof: | Yes |
| Battery Quantity: | 1 |

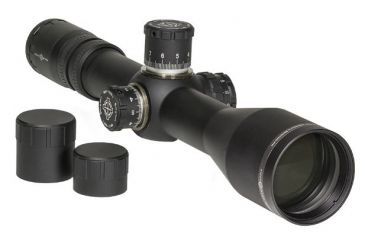

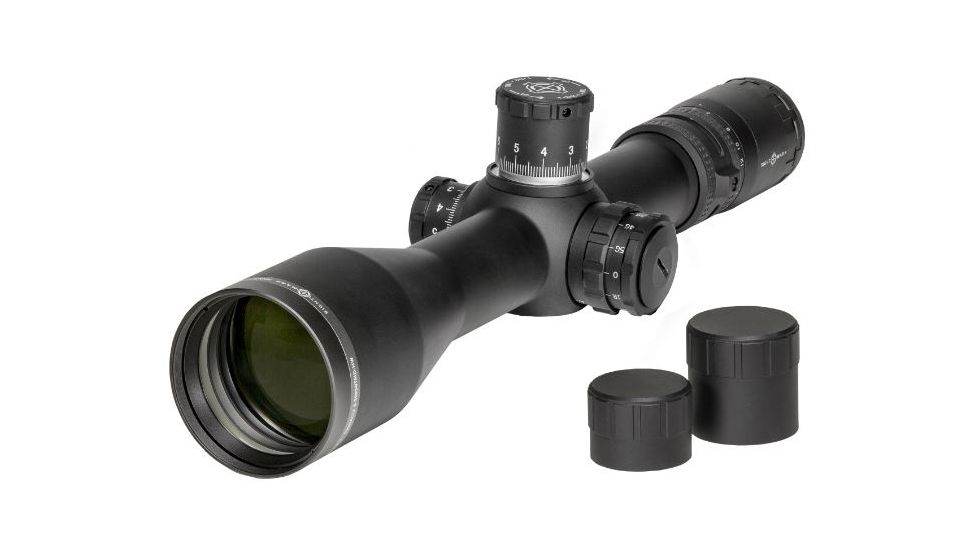

| Included Accessories: | Sunshade, turret caps, thread protector, CR2032 battery, manual |
| Magnification Type: | Variable |
| Additional Features: | Premium Japanese glass, Fully multi-coated optics, Zero stop elevation dial, Constant eye relief, Scratch resistant lenses |
| Condition: | New |
| W/E Travel at 100 Yds: | 18/26 Mil Rad |
| Mount Type: | Weaver |
| Attachment Type: | Weaver |
Features of Sightmark Pinnacle 5-30x50 TMD Rifle Scope:
- Covered by the Sightmark Limited Lifetime Warranty
Package Contents:
- Sightmark Pinnacle 5-30x50 TMD Rifle Scope
