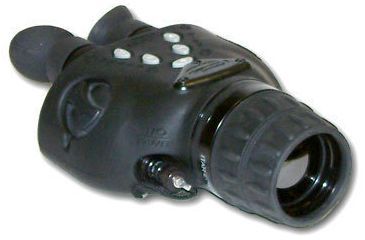

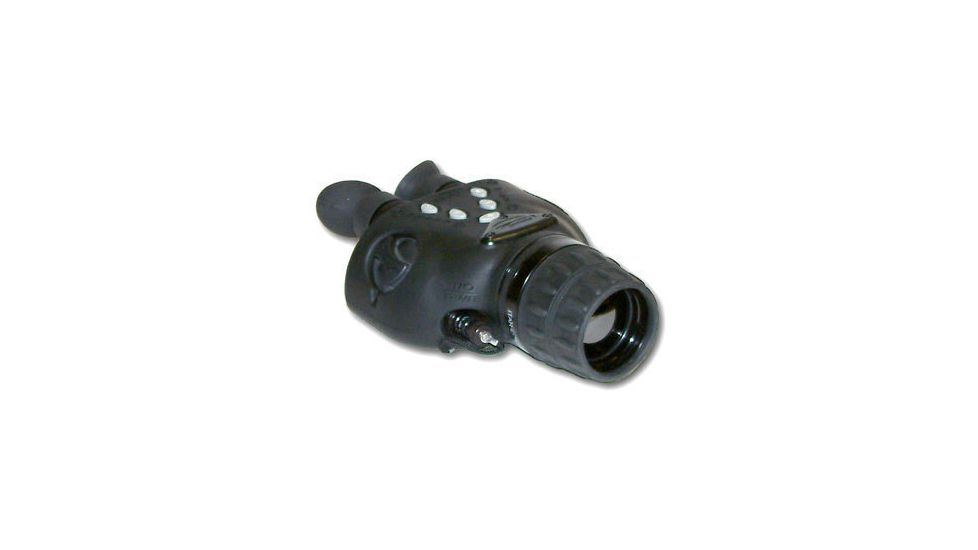

Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1

Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1
Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1
1 of 1 images
Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1

Tap Tap to Zoom

Product Discontinued by Manufacturer

Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1 has been discontinued by Elcan and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Imaging yourself to try and find the perfect replacement for you!

Product Info for Elcan PhantomIR Infrared Thermal Vision Binocular TIBNPHAN1

The ELCAN PhantomIR Thermal Binocular is a technically-advanced device for observation and perimeter security. Utilizing a high-resolution thermal detector, the PhantomIR allows users to observe the heat signatures of people and objects in daytime or at night and through smoke, fog or camouflage. The Phantom Infrared Binocular provides high performance image range over 750 meters. The Elcan Phantom IR Thermal Vision Binocular incorporates user-selectable reticles (Mil-Dot, Crosshair, or No Reticle), a digital magnetic compass (when properly calibrated is accurate within +/- 3 degrees), a 2x-4x zoom function and video-out (SMPTE or NTSC Compatible) capability. The PhantomIR from Elcan is a powerful tool for military, police, and security professionals.image

Specifications for Phantom IR infrared Thermal Vision Binocular:

Optical Magnification:   1x - 2x nominal
Zoom:   2x (2x-4x nominal)
Wide Field of View:   18.6 (h) x 14.0 (v) degrees
Narrow Field of View:   9.3 (h) x 7.0 (v) degrees
NETD:   <0.07°C
Detection Range:   900+ meters
Operating temp. range:   -20°C to 49°C
Focus Range:   1m to infinity
Individual eye correction:   +/- 6 diopter adjustments
Angular resolution:   0.5 milliradian
Spectral Response:   8 to 12 microns
Polarity Control:   White hot / Black hot
Gain / level:   Automatic Control with enhanced image processing
Video out format:   SMPTE-170M (NTSC compatible) RCA jack
Continuous Operating Time:   >7 hours @ 25°C
Acoustic Signature:   non-detectable at 10m
Internal Power:   4 lithium AA batteries
External Power:   Optional 12v DC, 120/240v, AC
Initial start-up time:   <2 seconds
Tripod attachment:   1/4 - 20 UNC
Weight (w/Batteries):   <3.5lb (1.6 kg)
Size (inches):   11(L) x 7 (W) x 3 (H)
Size (mm):   380 (L) x 178 (W) x 76 (H)
Exterior:   Molded Santoprene rubber
Environmental:   Water resistant, abrasion resistant
Reticle:   Mil-Dot, crosshair with dot, or none.

Features of Phantom IR infrared Thermal Vision Binocular:

  • Range performance to 750(+) meters
  • Digital Compass (magnetic bearing)
  • Low Battery Indicator
  • Interpupilary Adjustment
  • Cross Hair & Mil-Dot Reticule Selection
  • Weight under 3.5 lbs
  • Latest 7 - 14mm Un-cooled Detector Technology
  • AA Battery & External Power;
  • Shock Protected Precision Optics

Package Contents:

  • Phantom IR infrared Thermal Vision Binocular
  • Hard Storage Case
  • Operator's Manual
  • Neck Strap
  • Rubber Lens Cap
