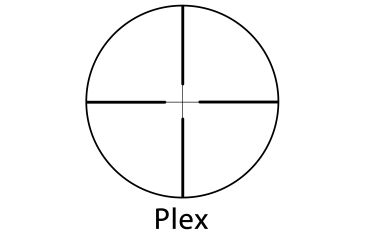

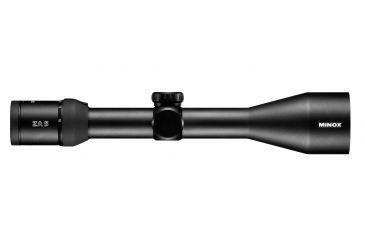

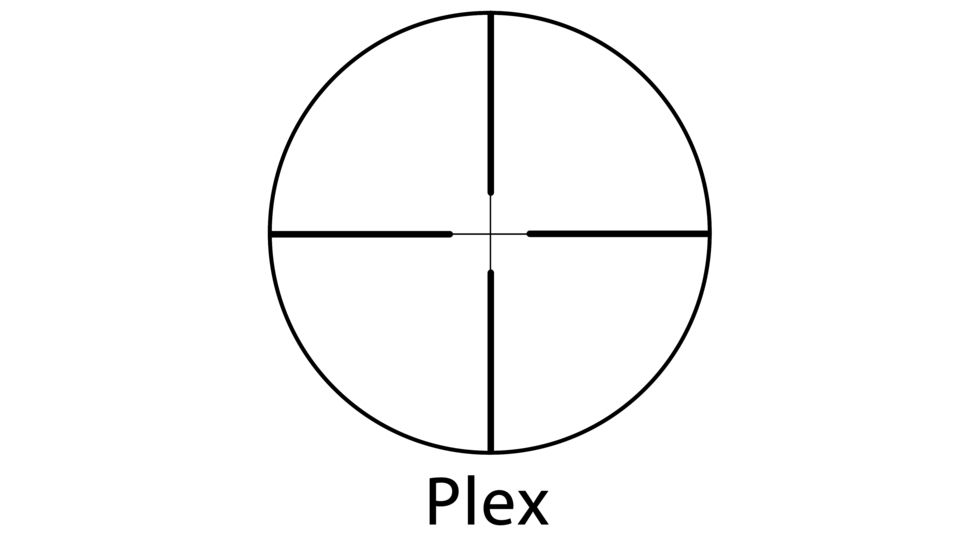

Minox ZA 5 HD 3-15x50 SF w/ Mino-Plex Reticle, Black 66440
2 of 18 images

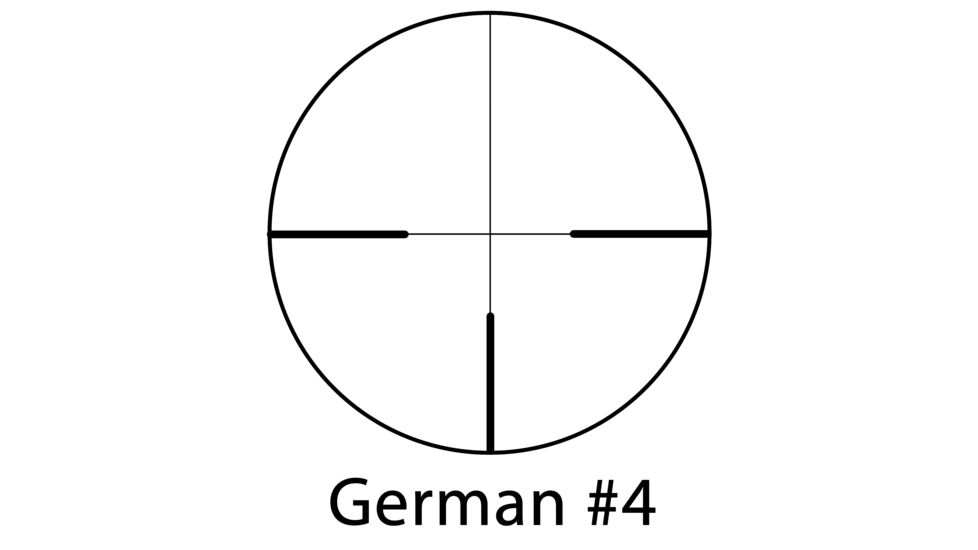

Minox ZA 5 HD 3-15x50 SF w/ German #4 Reticle, Black 66444
3 of 18 images

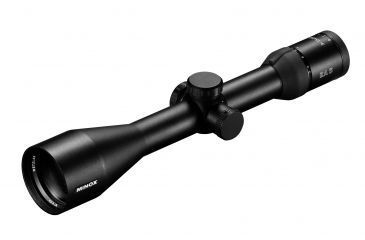

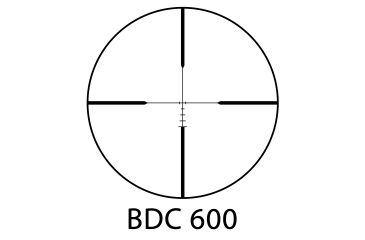

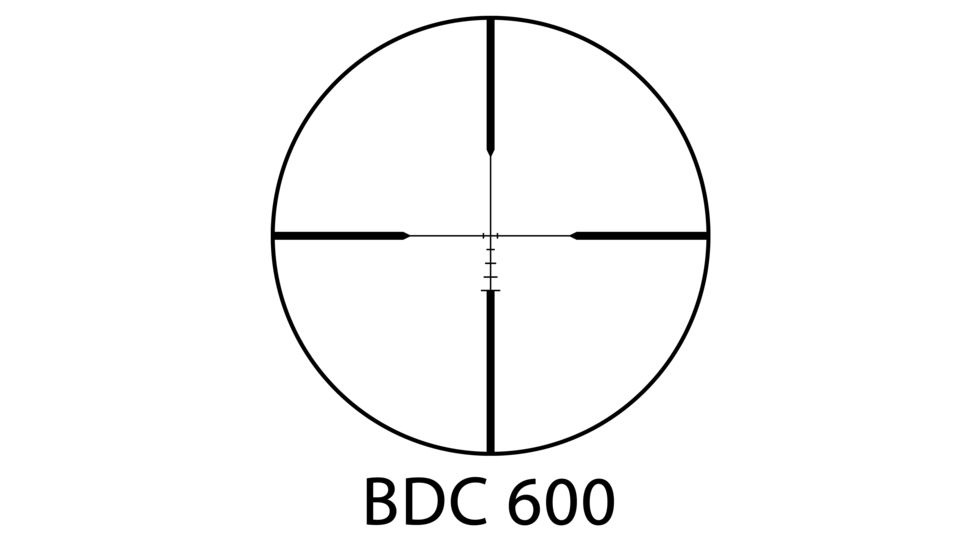

Minox ZA 5 HD 3-15x50 SF w/ BDC 600 Reticle, Black 66441
4 of 18 images

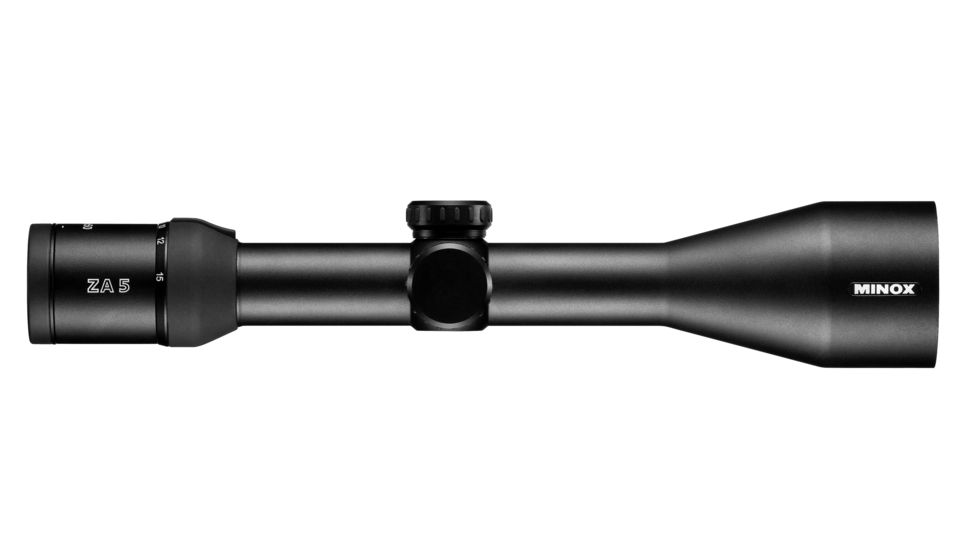

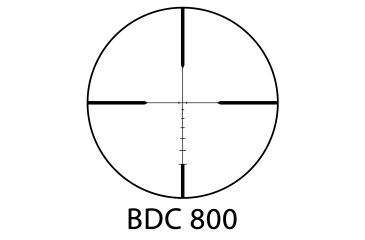

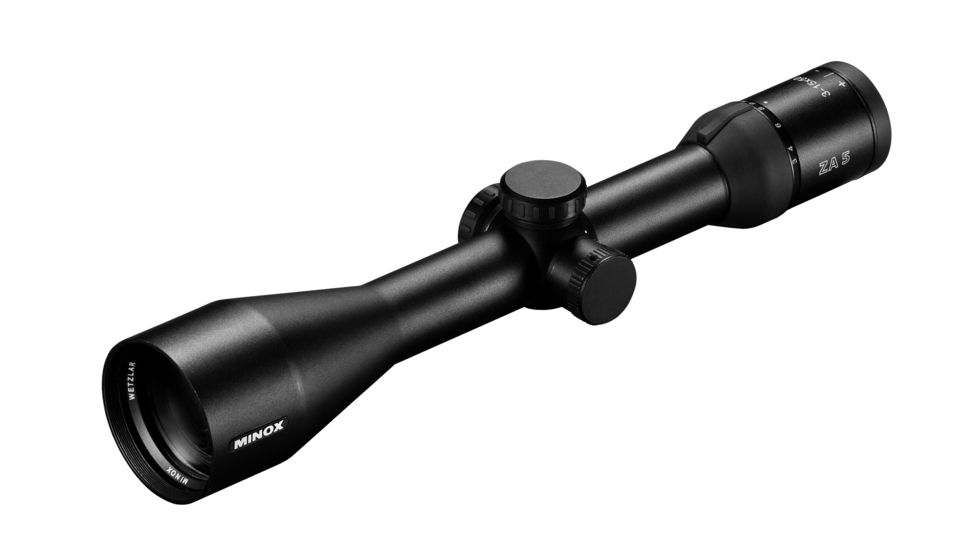

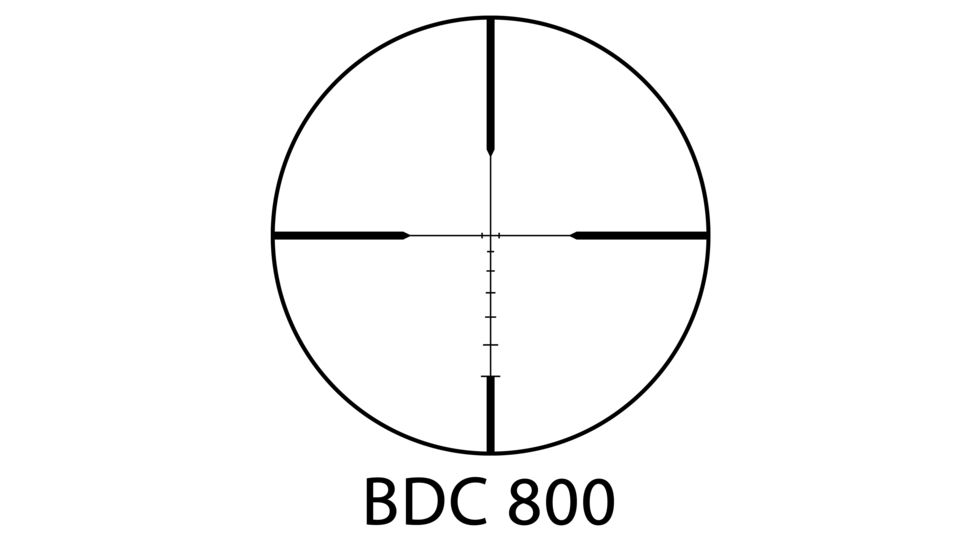

Minox ZA 5 HD 3-15x50 SF w/ BDC 800 Reticle, Black 66442
5 of 18 images

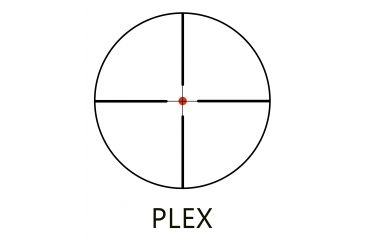

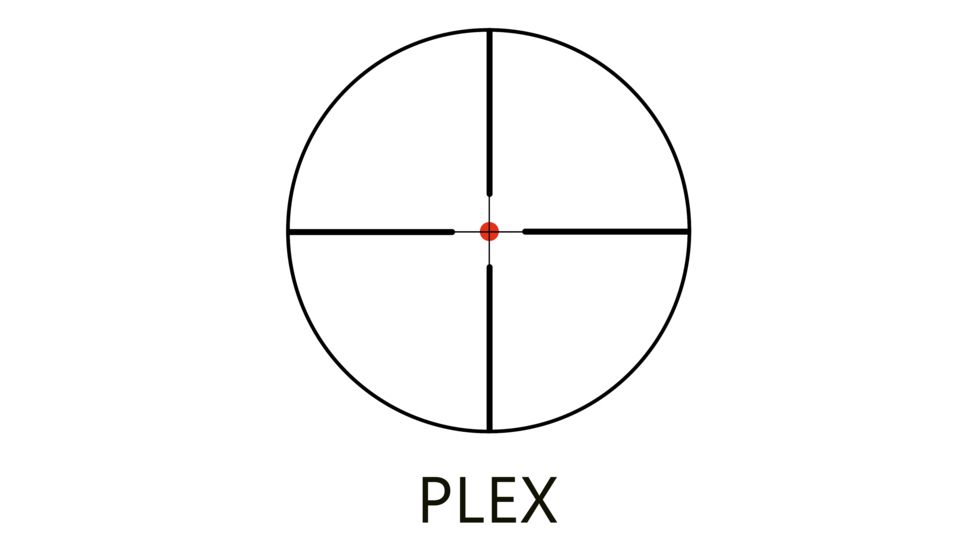

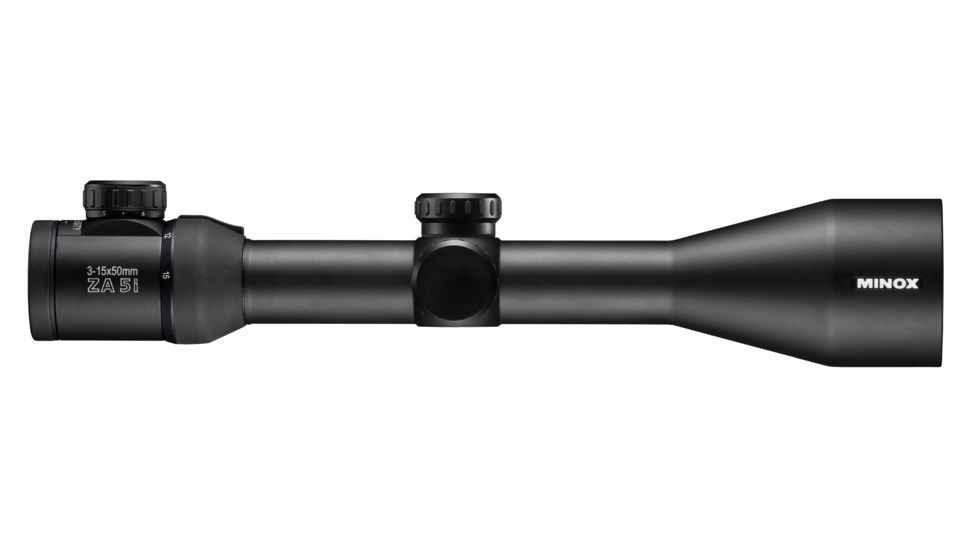

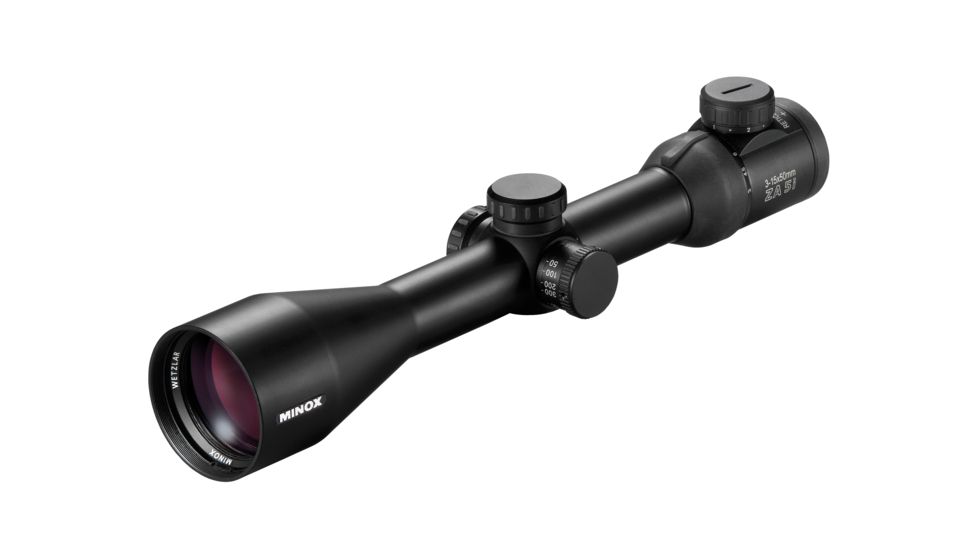

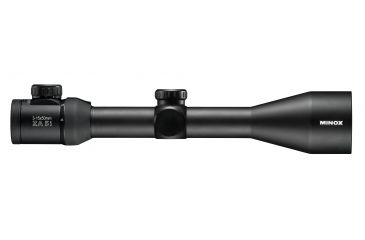

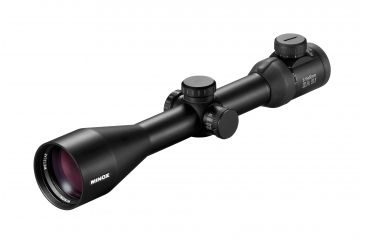

Minox ZA 5i HD 3-15x50 SF w/ Illuminated Plex Reticle, Black 66446
6 of 18 images

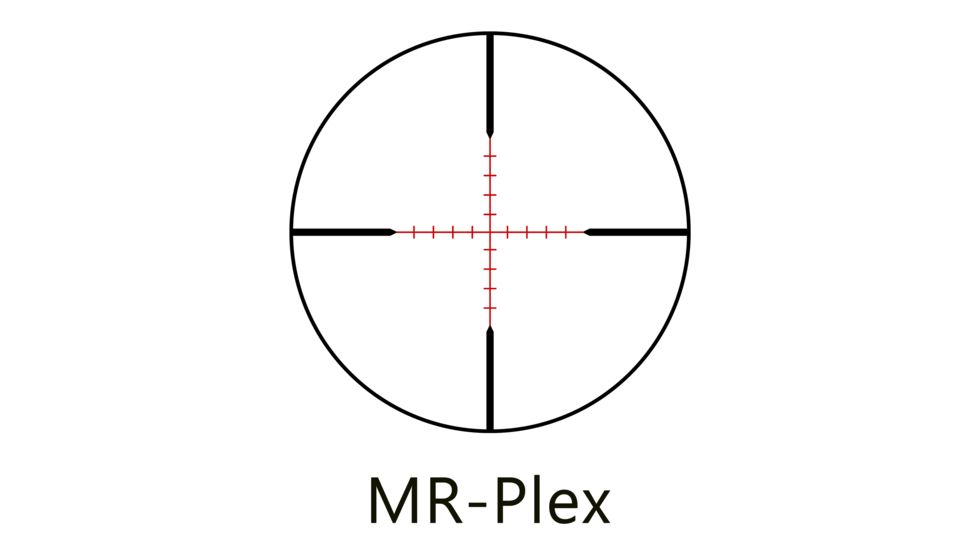

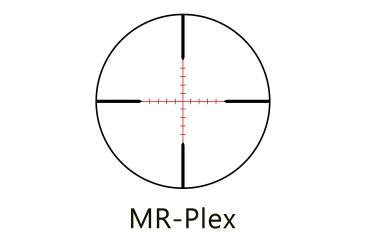

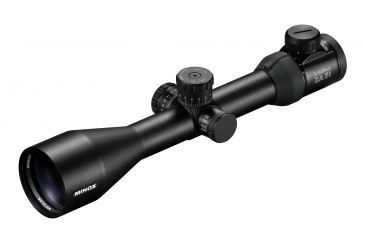

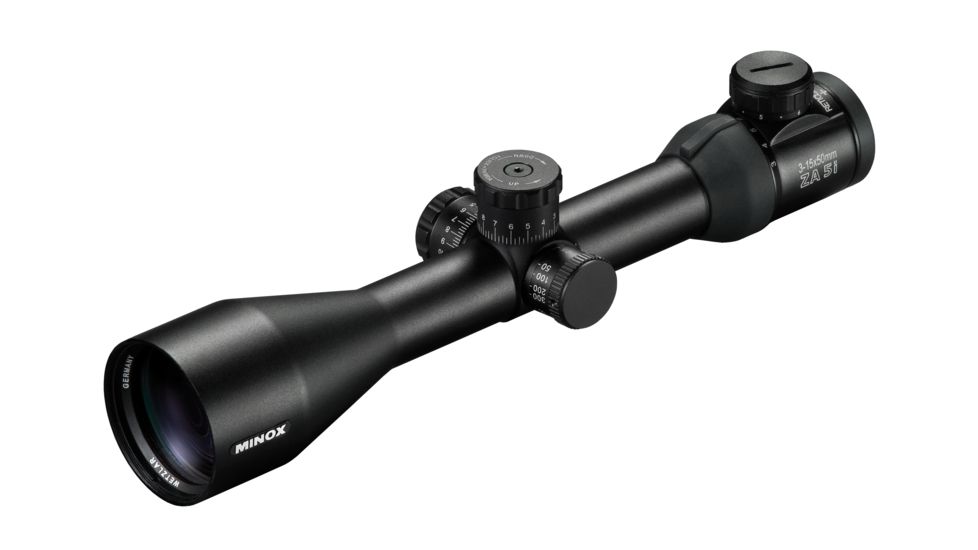

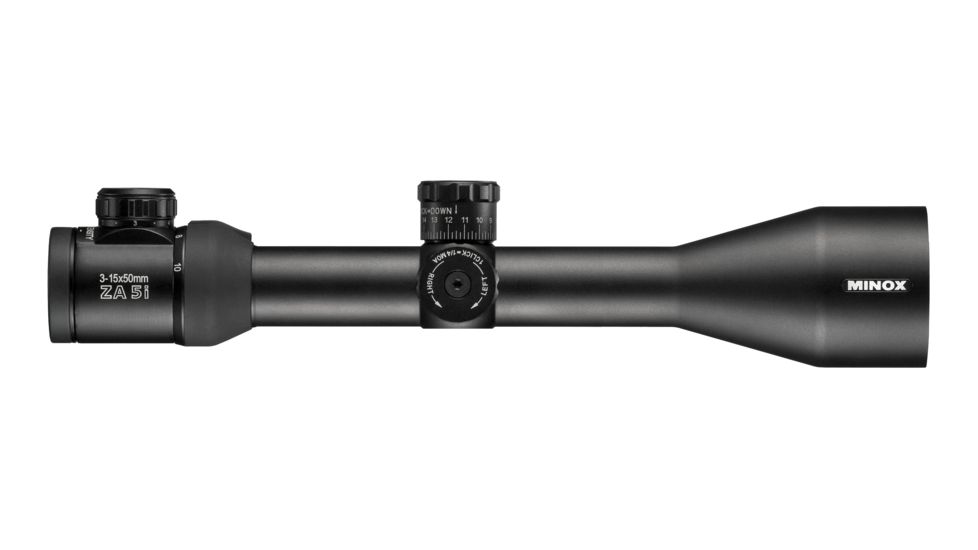

Minox ZA 5 HD 3-15x50 TAC w/ Illuminated Mino-Tac Reticle, Black 66445
7 of 18 images
Minox ZA 5 HD 3-15x50 SF w/ German #4 Reticle, Black 66444
8 of 18 images
Minox ZA 5 HD 3-15x50 SF w/ Mino-Plex Reticle, Black 66440
9 of 18 images
Minox ZA 5 HD 3-15x50 SF w/ BDC 600 Reticle, Black 66441
10 of 18 images
Minox ZA 5 HD 3-15x50 SF w/ BDC 800 Reticle, Black 66442
11 of 18 images
Minox ZA 5i HD 3-15x50 SF w/ Illuminated Plex Reticle, Black 66446
12 of 18 images
Minox ZA 5 HD 3-15x50 TAC w/ Illuminated Mino-Tac Reticle, Black 66445
13 of 18 images
Minox ZA 5 HD 3-15x50 SF w/ German #4 Reticle, Black 66444
14 of 18 images
Minox ZA 5 HD 3-15x50 SF w/ Mino-Plex Reticle, Black 66440
15 of 18 images
Minox ZA 5 HD 3-15x50 SF w/ BDC 600 Reticle, Black 66441
16 of 18 images
Minox ZA 5 HD 3-15x50 SF w/ BDC 800 Reticle, Black 66442
17 of 18 images
Minox ZA 5i HD 3-15x50 SF w/ Illuminated Plex Reticle, Black 66446
18 of 18 images
Minox ZA 5 HD 3-15x50 TAC w/ Illuminated Mino-Tac Reticle, Black 66445
Tap Tap to Zoom
Product Discontinued by Manufacturer
Minox ZA 5 HD 3-15x50 Rifle Scope has been discontinued by Minox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Riflescopes yourself to try and find the perfect replacement for you!
Product Info for Minox ZA 5 HD 3-15x50 Rifle Scope
The Minox ZA 5 HD 3-15x50 SF - 30mm Tube Rifle Scope gives you long, safe eye relief. The universal Side Focus Parallax Adjustment Rifle Scope for close to medium shooting ranges. The Minox ZA 5 HD Side Focus Rifle Scope is suitable for flexible use, whether for dynamic hunting during the day or a raised hide in twilight. Designed and engineered in Germany and assembled in the USA, the Minox ZA HD Zoom Rifle Scopes offer a 5x zoom range and new long-range reticles for improved accuracy and peace-of-mind.
Specifications for Minox ZA HD 3-15x50 SF Rifle Scope:
| Object Lens | ||
|---|---|---|
| Clear aperture (mm): | 50 | |
| Parallax adjustment range (Side focus): | 50 yds - infinity | |
| Eyepiece | ||
| Fully multicoated: | Yes | |
| Eye relief (mm): | 101 | |
| Exit pupil high power (mm): | 3.3 | |
| Exit pupil low power (mm): | 15 | |
| Eyepiece -diopter (min): | 2 | |
| Eyepiece +diopter (max): | 2 | |
| Power Selector | ||
| Magnification high power: | 15 | |
| Magnification low power: | 3 | |
| Image | ||
| Field of view low power/ft 100 yards: | 32.5 | |
| Field of view high power/ft 100 yards: | 6.5 | |
| Windage/Elevation | ||
| Reticle adjustment per click: | .25" | |
| Windage travel - total: | > or = 60 MOA | |
| Elevation travel - total: | > or = 60 MOA | |
| Mechanical | ||
| Main tube outside diameter (mm): | 30 | |
| Overall length (in): | 12.88 | |
| Front mounting distance (in.): | 2.1 | |
| Rear mounting distance (in.): | 2.27 | |
| Weight (oz.): | 20.8 | |
Features of Minox ZA HD Rifle Scope:
- High performance German HD optics
- Aluminum tube (1" and 30 mm)
- Anodized scope body
- 5x zoom range
- Long, safe eye relief
- Large field of view
- Reticle at the 2nd focal plane
- Parallax adjustment (SF models)
- Waterproof
- Filled with Argon gas
Package Contents:
- Minox ZA 5 HD 3-15x50 Rifle Scope
