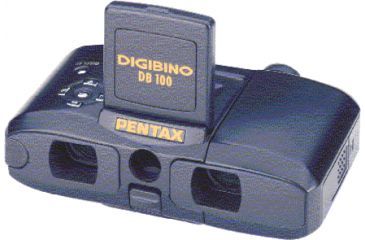

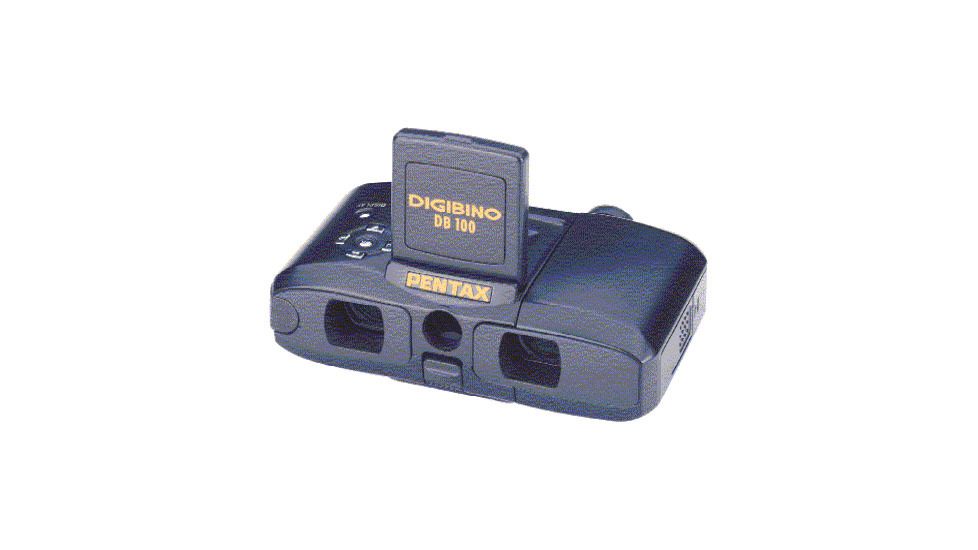

Pentax Digibino DB-100 Digital Camera Binoculars 60011

OpticsPlanet.com, an Authorized US Pentax Dealer is exited to introduce PX-DB-60011 Pentax Digibino DB100, world's first binocular with a built-in digital camera!

Digibino DB100 60011 is the combination that a lot of birdwatchers and whale watchers have been dreaming for a long time, and Pentax combined its great experience in building world-class binoculars with its tremendous knowledge in camera development. Pentax Digibino DB100 is a 7x Roof-Prism Binoculars with built-in digital camera.  DB100 supports digital image recording with 7x magnification lens.  The camera has 16 megabytes internal memory and the built-in digital camera supports 800,000 pixels (0.8 megapixel).  Digital images are recorded in the industry-standard JPEG format.  The camera support USB connection to PC for easy and fast image download. DB100 has binocular-linked focusing system. The camera has support for a a video-out terminal for TV viewing, and if you want to take a movie-like series of photo shots via continuous shooting up to 10 frames at five frames per second.

Pentax Digibino DB100 Specifications

Type: Roof prism type binoculars with built-in digital still camera, binocular-linked focusing, auto exposure, center focusing.

Lens: PENTAX 37mm (equivalent to 280mm in 35mm format) f/4.0.

Objective lens: 2 elements in 1 group

Eyepiece lens: 3 elements in 2 groups

Digibino Binocular Spec

Magnification: 7X

Objective Lens Diameter: 17mm x 14mm

Real Field of View: 7.1°

Apparent Field of View: 50°

Field of View at 1000m: 124m

Field of View at 1000 yards: 372 ft.

Exit Pupil: 2.4mm x 2.0mm

Eye Relief: 11mm

Relative Brightness: 5

Diopter Adjustment Range: -5m-1 to +3m-1

Eye Width Adjustment Range: 2.2 in. - 2.8 in. (57mm - 72mm).

Focusing Range: Approx. 6.6 ft. to infinity (Approx. 2m to infinity).

Eyepiece: Rigid type.

DigibinoDigital Camera

Effective Pixels: 0.8 megapixel

Sensor: 0.85 megapixel (total pixels)1/3 inch progressive CCD

Recorded Pixels: Still - 1024 x 768 pixels, 640 x 480 pixels.

Sensitivity: Auto (equivalent to ISO100 - 1600).

File Formats: Still - JPEG (Exif 2.1), DCF.

Quality Levels: "Fine", "Normal", "Basic".

Storage Media: Internal memory 16MB.

Digital Zoom: 1.6X, 3.3X

Focusing System:

Type: Binocular-linked focusing system.

Focusing Range: Binoculars & camera: 6.6 ft. (2m) to infinity.

Focusing Indicator: Cross hair in binocular field of view.

Exposure Control:

Metering System: TTL metering center-weighted metering.

Exposure Modes: Programmed auto exposure.

Shutter: Programmed AE CCD electronic shutter.

Shutter speed: approx. 1/8000 sec. to 1/30 sec.

Drive Modes: One shot, Continuous (max. 10 shots at 5 shots/sec., Fine image).

White Balance: TTL auto.

Optical Viewfinder: Binoculars (diopter adjustment from -5m-1 to +3m-1).

LCD Monitor: 1.6 inch, D-TFT color LCD.

LCD Function: Nine-image and 1X-3.3X (soft zoom) magnification available in playback mode.

Interfaces: Video output terminal, USB terminal.

Video Output: NTSC format model or PAL format model.

Power Sources: Two AA size alkaline batteries, two AA nickel-hydride rechargeable batteries, one lithium battery (CR-V3 type).

Body Color: Black

Dimensions: 5.0 (W) x 2.7 (H) x 1.7 (D) inches

(127mm x 69mm x 44mm)

Thickness: 1.7 in. (44mm).

Accessories: Case, strap.

A short version of Pentax Digibino DB100 binoculars with a built-in digital camera  is available for downloadhere (PDF Format).In Stock! Shipping Next Business Day!
