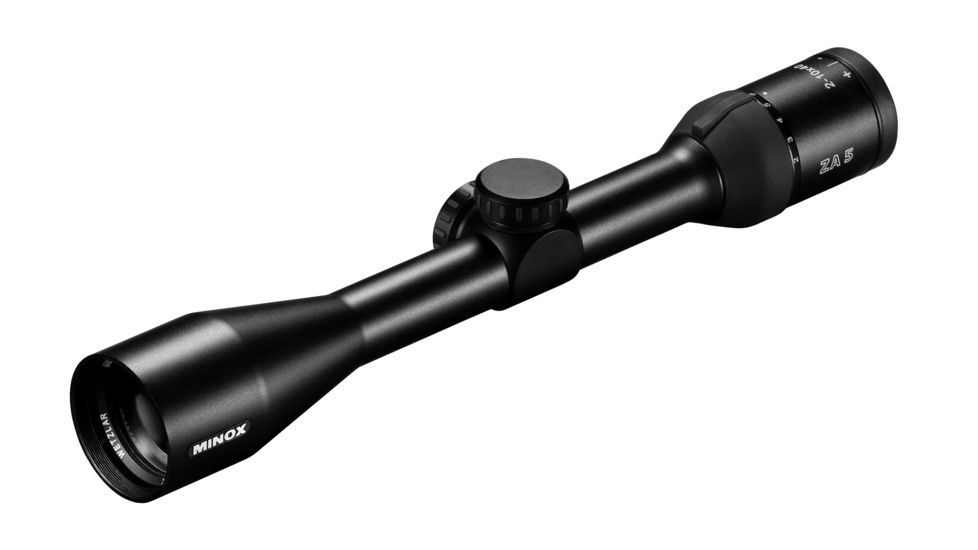

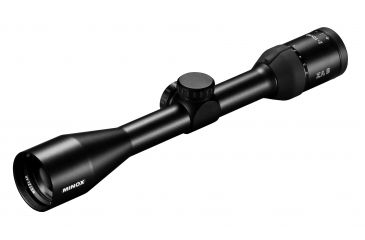

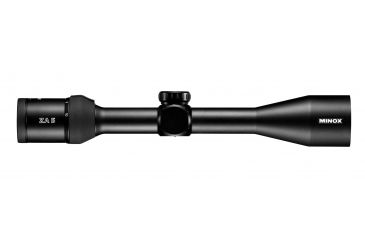

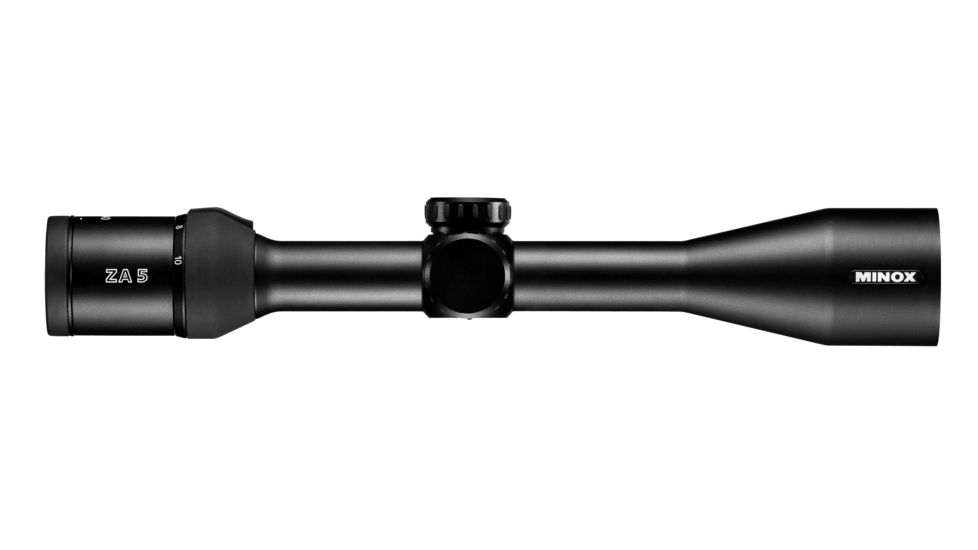

Minox ZA 5 HD 2-10x40 Rifle Scope
Tap Tap to Zoom
Product Discontinued by Manufacturer
Minox ZA 5 HD 2-10x40 Rifle Scope has been discontinued by Minox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Riflescopes yourself to try and find the perfect replacement for you!
Product Info for Minox ZA 5 HD 2-10x40 Rifle Scope
The Minox ZA 5 HD 2-10x40 - 1" tube Rifle Scope is a waterproof Rifle Scope that lets you take charge of your hunting experience. The universal Rifle Scope for close to medium shooting ranges. The Minox ZA Hunting Rifle Scope is suitable for flexible use from woodlots to mountain tops. Designed and engineered in Germany and assembled in the USA, the Minox ZA HD Zoom Rifle Scopes offer a 5x zoom range and new long-range reticles for improved accuracy and peace-of-mind.
Specifications for Minox ZA HD 2-10x40 Rifle Scope:
| Object Lens | ||
|---|---|---|
| Clear aperture (mm): | 40 | |
| Parallax adjustment range (Side focus): | 100 yds | |
| Eyepiece | ||
| Fully multicoated: | Yes | |
| Eye relief (mm): | 101 | |
| Exit pupil high power (mm): | 4.0 | |
| Exit pupil low power (mm): | 17.5 | |
| Eyepiece -diopter (min): | 2 | |
| Eyepiece +diopter (max): | 2 | |
| Power Selector | ||
| Magnification high power: | 10 | |
| Magnification low power: | 2 | |
| Image | ||
| Field of view low power/ft 100 yards: | 48.7 | |
| Field of view high power/ft 100 yards: | 9.7 | |
| Windage/Elevation | ||
| Reticle adjustment per click: | .25" | |
| Windage travel - total: | > or = 80 MOA | |
| Elevation travel - total: | > or = 80 MOA | |
| Mechanical | ||
| Main tube outside diameter (mm): | 25.4/1.0in | |
| Overall length (in): | 12.74 | |
| Front mounting distance (in.): | 2.2 | |
| Rear mounting distance (in.): | 1.96 | |
| Weight (oz.): | 16 | |
Features of Minox ZA HD Rifle Scope:
- High performance German HD optics
- Aluminum tube (1" and 30 mm)
- Anodized scope body
- 5x zoom range
- Long, safe eye relief
- Large field of view

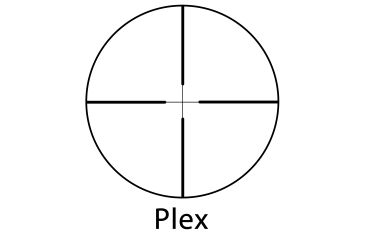

- Reticle at the 2nd focal plane
- Parallax adjustment (SF models)
- Waterproof
- Filled with Argon gas
Package Contents:
- Minox ZA 5 HD 2-10x40 Rifle Scope
