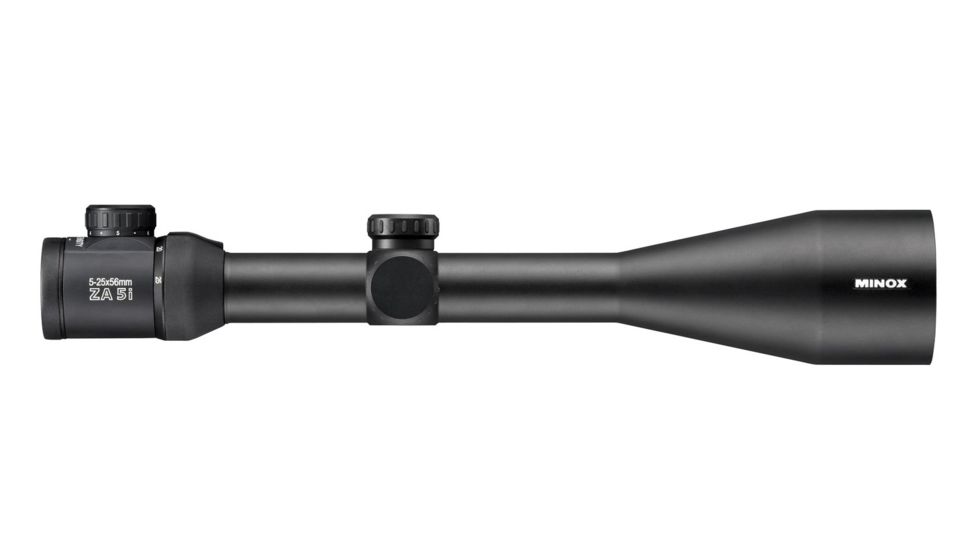

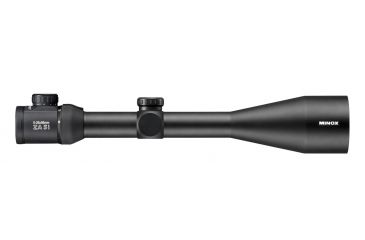

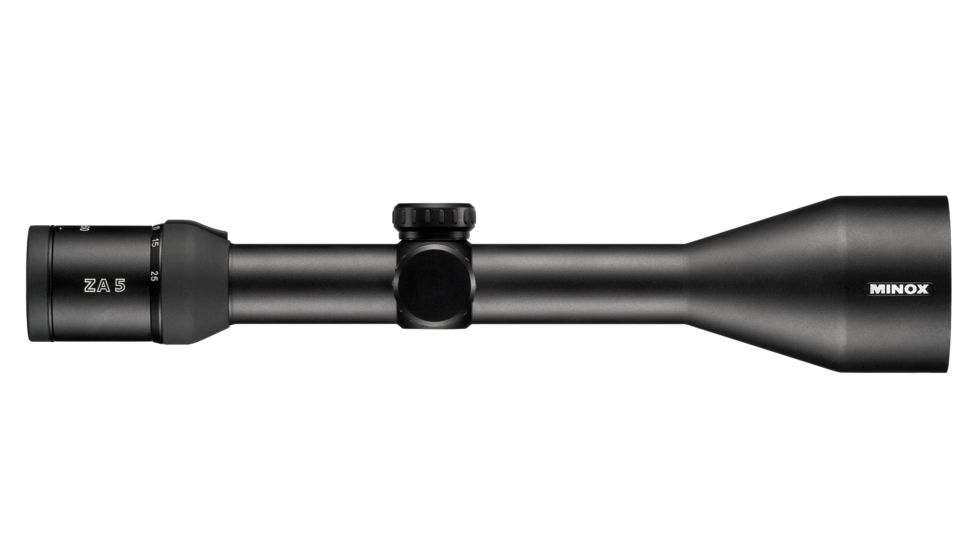

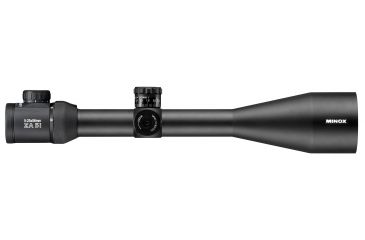

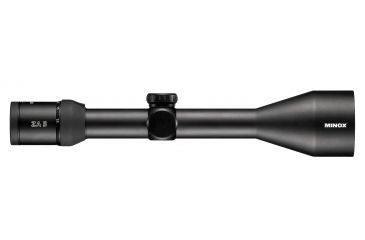

Minox ZA 5 HD 5-25x56 Rifle Scope
Tap Tap to Zoom
Product Discontinued by Manufacturer
Minox ZA 5 HD 5-25x56 Rifle Scope has been discontinued by Minox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Riflescopes yourself to try and find the perfect replacement for you!
Product Info for Minox ZA 5 HD 5-25x56 Rifle Scope

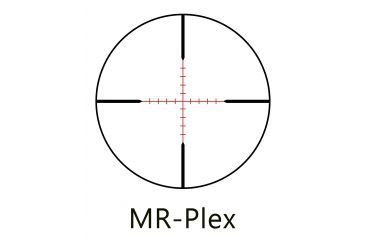

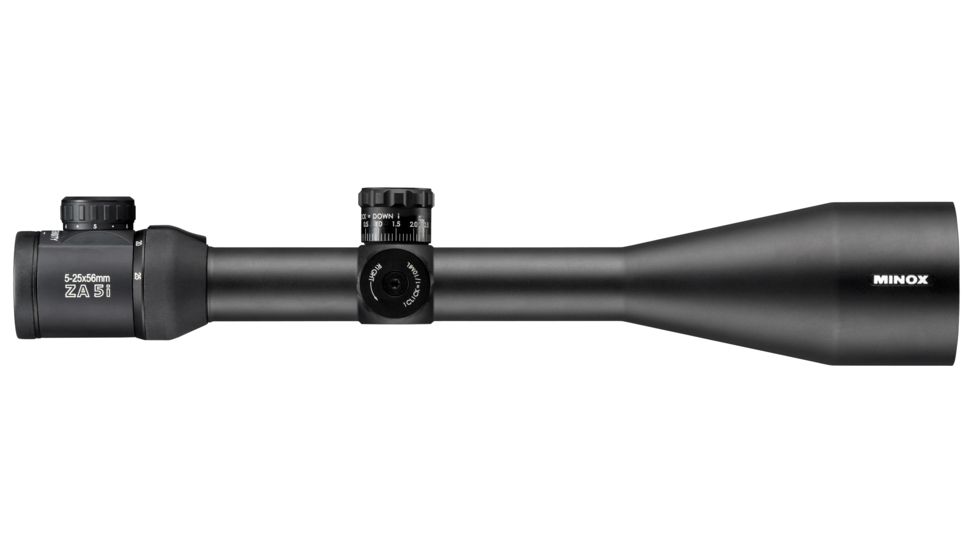

The Minox ZA 5 HD 5-25x56 SF - 30mm Tube Rifle Scope features high-performance German HD optics, giving you a great image. The ultimate bright Side Focus Parallax Adjustment scope for use in deep twilight. Universal and flexible for short, medium and long ranges in densely wooded and wide open hunting grounds. The Minox ZA 5 HD Side Focus Rifle Scope allows for excellent light transmission to extend the decisive moment. Designed and engineered in Germany and assembled in the USA, the Minox ZA HD Zoom Rifle Scopes offer a 5x zoom range and new long-range reticles for improved accuracy and peace-of-mind.
Specifications for Minox ZA HD 5-25x56 SF Rifle Scope:
| Object Lens | ||
|---|---|---|
| Clear aperture (mm): | 56 | |
| Parallax adjustment range (Side focus): | 50 yds - infinity | |
| Eyepiece | ||
| Fully multicoated: | Yes | |
| Eye relief (mm): | 101 | |
| Exit pupil high power (mm): | 2.2 | |
| Exit pupil low power (mm): | 10 | |
| Eyepiece -diopter (min): | 2 | |
| Eyepiece +diopter (max): | 2 | |
| Power Selector | ||
| Magnification high power: | 25 | |
| Magnification low power: | 5 | |
| Image | ||
| Field of view low power/ft 100 yards: | 19.5 | |
| Field of view high power/ft 100 yards: | 3.9 | |
| Windage/Elevation | ||
| Reticle adjustment per click: | .25" | |
| Windage travel - total: | > or = 50 MOA | |
| Elevation travel - total: | > or = 50 MOA | |
| Mechanical | ||
| Main tube outside diameter (mm): | 30 | |
| Overall length (in): | 15 | |
| Front mounting distance (in.): | 2.93 | |
| Rear mounting distance (in.): | 2.27 | |
| Weight (oz.): | 22.2 | |
Features of Minox ZA HD Rifle Scope:
- High performance German HD optics
- Aluminum tube (1" and 30 mm)
- Anodized scope body
- 5x zoom range
- Long, safe eye relief
- Large field of view
- Reticle at the 2nd focal plane
- Parallax adjustment (SF models)
- Waterproof
- Filled with Argon gas
Package Contents:
- Minox ZA 5 HD 5-25x56 Rifle Scope
